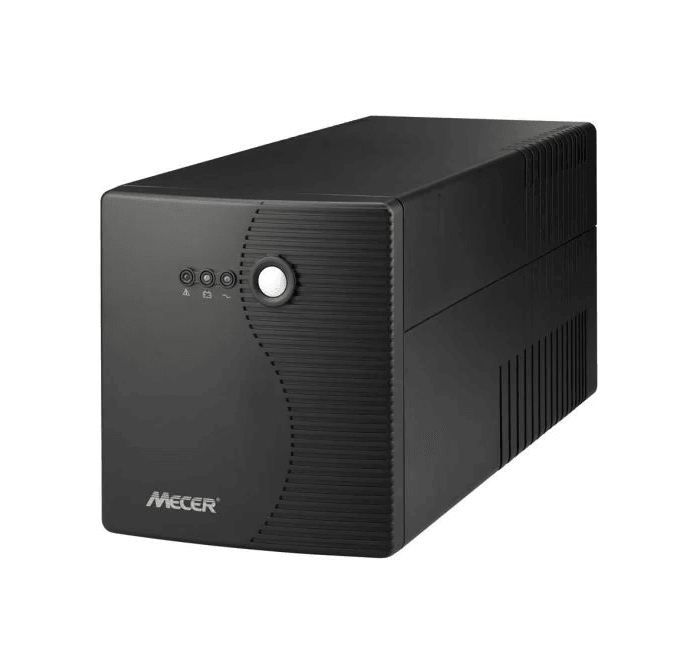

MECER 650VA LINE INTERACTIVE UPS ME-650-VU
ME-650-VU
Mecer 650VA OFF-LINE UPS (with AVR,Monitoring Software + Cable & Built-in Surge Protection) - Black
Features:
- 650VA line interactive UPS
- Microprocessor control guarantees high reliability
- Boost and buck AVR for voltage stabilization
- Auto restart while AC is recovering
- Simulated sine wave
- Off-mode charging
- Cold start function
- USB communication port and RJ-11/RJ-45 protection
- Overload, discharge, and overcharge protection
- Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC
Specifications :
Product Code | ME-650-VU |
MODEL | ME-650-VU |
CAPACITY | 650 VA / 360 W |
INPUT | |
Voltage | 110/120 VAC or 220/230/240 VAC |
Voltage Range | 81-145 VAC / 162-290 VAC |
Frequency Range | 60/50 Hz (auto sensing) |
OUTPUT | |
AC Voltage Regulation (Batt. Mode) | ±10% |
Frequency Range (Batt. Mode) | 60 Hz or 50 Hz ±1 Hz |
Transfer Time | Typical 2-6 ms, 10ms max. |
Waveform (Batt. Mode) | Simulated Sine Wave |
BATTERY | |
Battery Type & Number | 12 V/7 AH x 1 |
Typical Recharge Time | 4-6 hours recover to 90% capacity |
INDICATORS | |
AC Mode | |
Green lighting | The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level |
Battery Mode | |
Yellow flashing | The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level |
Fault | |
Red lighting | Red LED lighting |
PROTECTION | |
Full Protection | Overload, discharge, and overcharge protection |
ALARM | |
Battery Mode | Sounding every 10 seconds |
Low Battery | Sounding every second |
Overload | Sounding every 0.5 second |
Battery Replacement Alarm | Sounding every 2 seconds |
Fault | Continuously sounding |
PHYSICAL | |
Dimension, D X W X H(mm) | 287 x 100 x 142 |
Net Weight (kgs) | 4.25 |
OPERATING ENVIRONMENT | |
Humidity | 0-90 % RH @ 0- 40°C (non-condensing) |
Noise Level | Less than 40dB |
MANAGEMENT | |
Optional USB/RS-232 Port | Supports Windows 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC |
ME-650-VU
Mecer 650VA OFF-LINE UPS (with AVR,Monitoring Software + Cable & Built-in Surge Protection) - Black
Features:
- 650VA line interactive UPS
- Microprocessor control guarantees high reliability
- Boost and buck AVR for voltage stabilization
- Auto restart while AC is recovering
- Simulated sine wave
- Off-mode charging
- Cold start function
- USB communication port and RJ-11/RJ-45 protection
- Overload, discharge, and overcharge protection
- Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC
Specifications :
Product Code | ME-650-VU |
MODEL | ME-650-VU |
CAPACITY | 650 VA / 360 W |
INPUT | |
Voltage | 110/120 VAC or 220/230/240 VAC |
Voltage Range | 81-145 VAC / 162-290 VAC |
Frequency Range | 60/50 Hz (auto sensing) |
OUTPUT | |
AC Voltage Regulation (Batt. Mode) | ±10% |
Frequency Range (Batt. Mode) | 60 Hz or 50 Hz ±1 Hz |
Transfer Time | Typical 2-6 ms, 10ms max. |
Waveform (Batt. Mode) | Simulated Sine Wave |
BATTERY | |
Battery Type & Number | 12 V/7 AH x 1 |
Typical Recharge Time | 4-6 hours recover to 90% capacity |
INDICATORS | |
AC Mode | |
Green lighting | The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level |
Battery Mode | |
Yellow flashing | The right green LED lighting & the 2nd to 5th green LEDs gradually lighting indicating load level |
Fault | |
Red lighting | Red LED lighting |
PROTECTION | |
Full Protection | Overload, discharge, and overcharge protection |
ALARM | |
Battery Mode | Sounding every 10 seconds |
Low Battery | Sounding every second |
Overload | Sounding every 0.5 second |
Battery Replacement Alarm | Sounding every 2 seconds |
Fault | Continuously sounding |
PHYSICAL | |
Dimension, D X W X H(mm) | 287 x 100 x 142 |
Net Weight (kgs) | 4.25 |
OPERATING ENVIRONMENT | |
Humidity | 0-90 % RH @ 0- 40°C (non-condensing) |
Noise Level | Less than 40dB |
MANAGEMENT | |
Optional USB/RS-232 Port | Supports Windows 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC |
