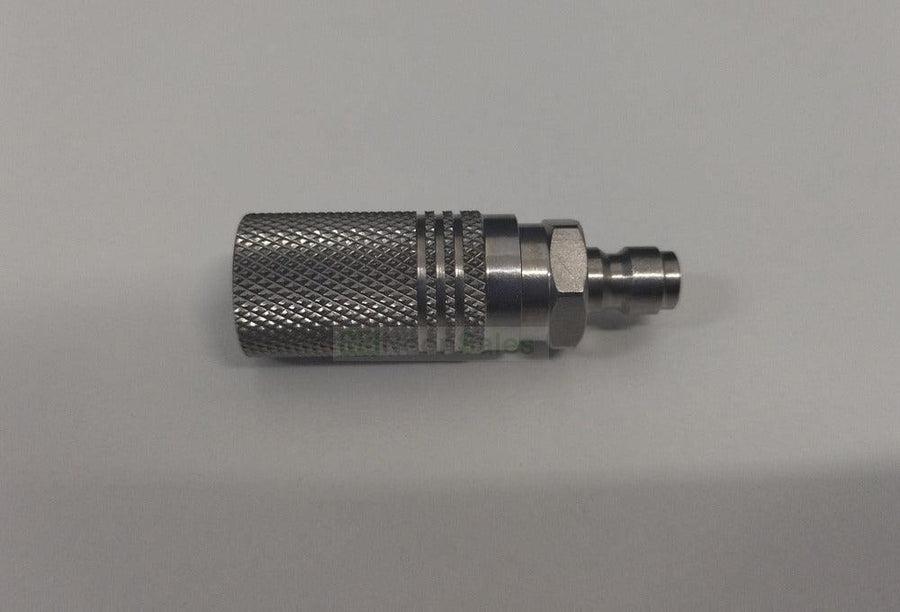

Aluminium-manufactured connector bit, which, w/ its long female and male q/c, allows for a tool-free filling probe adapter for your FX rifle, w/out needing to attach the long female q/c directly to your fillwhip, as that might not always be desireable. This can also in the same breath, replace your DAYSTATE filling adapter.
The sleeve is thoroughly knurled, though has a three blank rings on its circumference for even better traction, which is a nifty little feature. It is loaded w/ 5 steel ball bearings, so the frontal / female end is partially magnetic. The machining is done clean and finely so - no cutting curls or roughshod edges. Polished fine as well, which will make for an attractive addition to your fill system.
As usual, these proper filling female couplers only feature one o-ring insert of decent quality which won't readily cinge / deform due to excessive heat exposure.
It is always useful to have a functional spare at hand, which will negate the need for an in-field repair of your filling adapter or, a replacement if yours get feet.
Technical Specifications
Length Total; Sleeve; Hex nut; Rear / Probe
|
48.68mm 30.52mm 4.00mm 10.96mm
|
Threading type
|
No threading, Q/C only
|
Depth Female coupling;
|
11.87mm
|
Exterior diameter; Sleeve; Probe widest Probe narrowest
|
16.36mm 7.88mm 6.36mm
|
Hex nut size:
|
14.00mm
|
Seals:
|
1x O-ring insert
|
