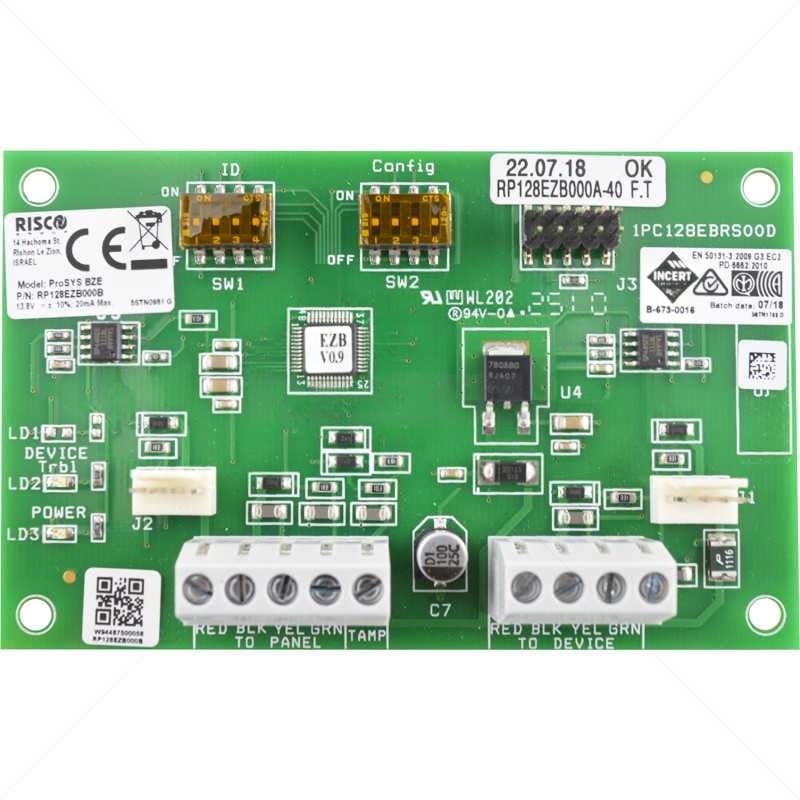

8-Zone Expander for LightSYS & ProSYS
8-zone wired expander compatible with LightSYS (max 5 units) and ProSYS Plus (max 32 units). Features 4-wire bus connectivity with switched auxiliary power output.
Zone Configuration
-
Wired Zone Inputs: 8
-
Programmable Zone Types: 22
-
Loop Response: Programmable per zone
-
Termination: N/C, N/O, end-of-line resistor, double end-of-line
Compatibility & Limits
-
LightSYS: Up to 5 CP179 expanders
-
ProSYS Plus: Up to 32 CP179 expanders
Connectivity
- 4-Wire bus connection
- Switched auxiliary power output
