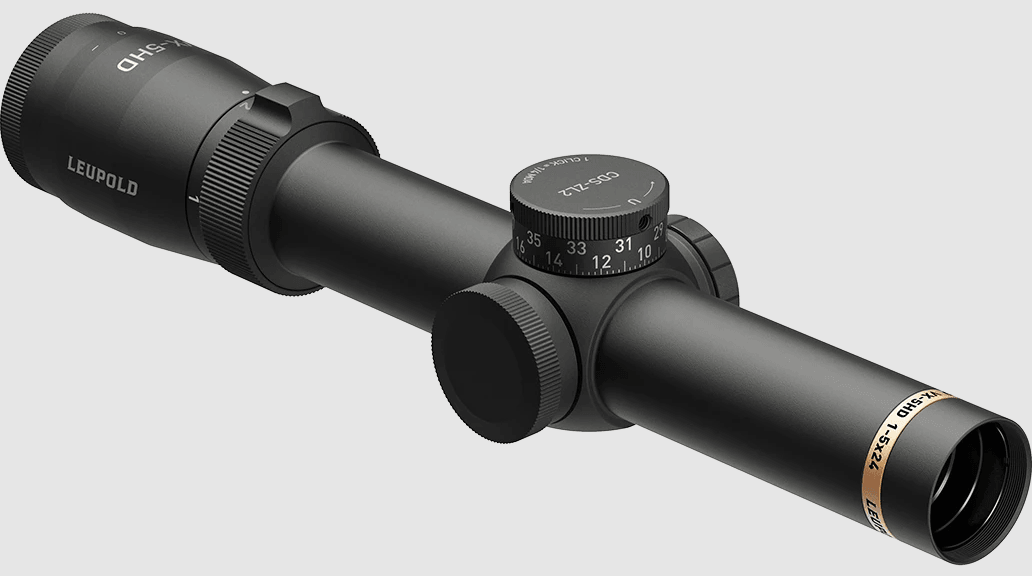

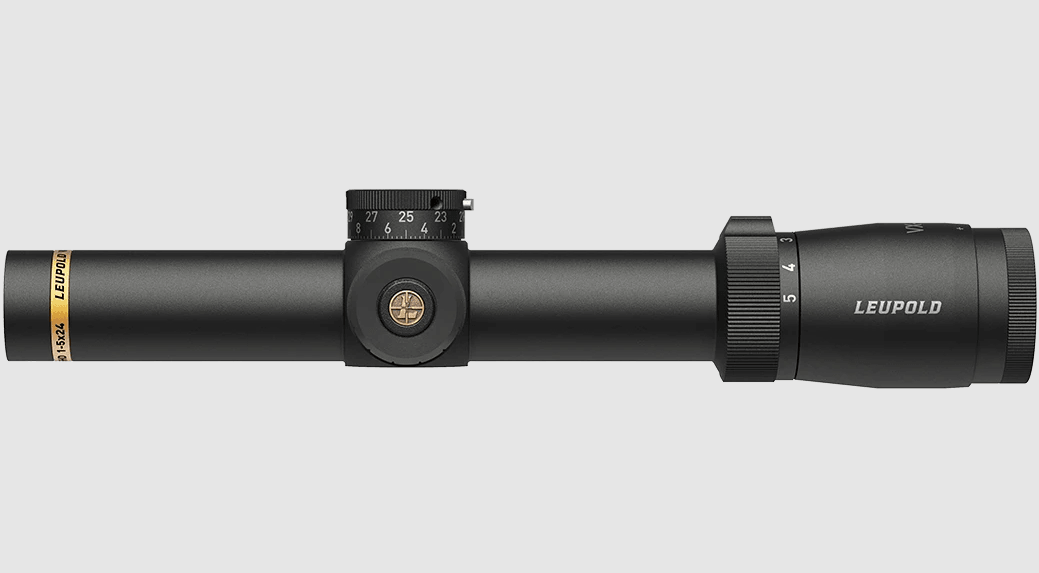

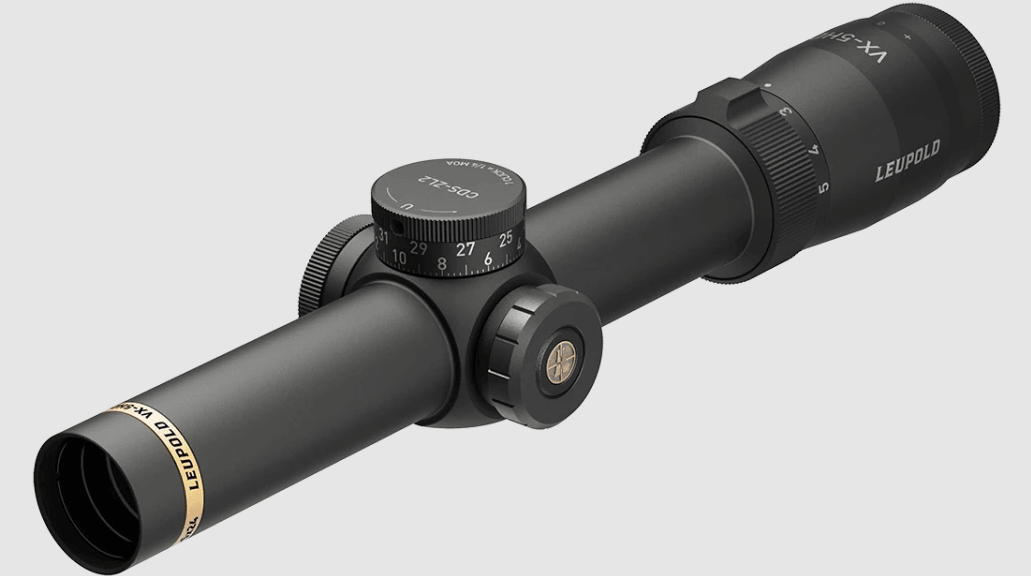

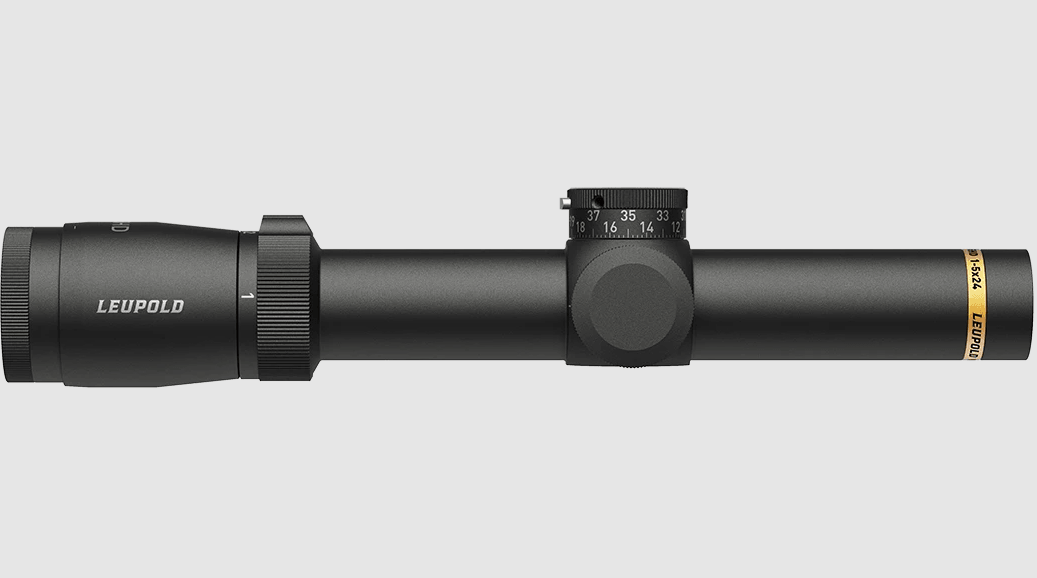

LEUPOLD VX-5HD 1-5X24 CDS-ZL2 MATTE FIREDOT DUPLEX
This scope may appear small but it packs a punch. The LEUPOLD VX-5HD 1-5X24 CDS-ZL2 MATTE FIREDOT DUPLEX weighs in at just 13.4 ounces, making it the perfect companion for long days in the wilderness. But don't underestimate it; with a 1-5x magnification range and durable construction, it's also a top choice for competitive and tactical shooters.
And let's not forget the added bonus of our exclusive Firedot® illumination, providing a bright and intuitive aiming point that excels in low-light situations. Versatility is the name of the game for the VX-5HD, with a wide magnification range that adapts to any setting.
With Leupold's Professional-Grade Optical System, you'll experience unmatched light transmission and glare reduction that outperforms even in the toughest lighting conditions. The resolution and clarity are top-notch, perfect for any professional guide or shooter in the field.
FEATURES:
- 5:1 ZOOM RATIO
- HIGH DEFINITION
- GUARD-ION

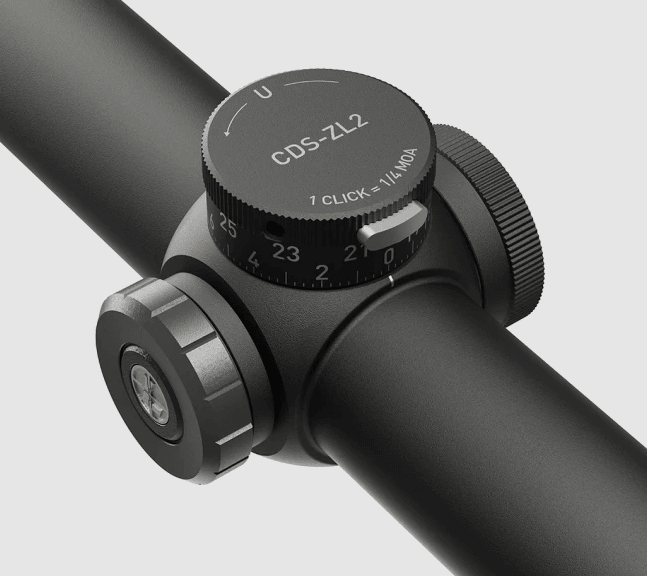

- CDS-ZL2 ELEVATION DIAL
- ILLUMINATED
- MOTION SENSOR TECHNOLOGY (MST)
- WATERPROOF, FOGPROOF, & SHOCKPROOF
SPECS:
Battery Type | CR2032 |
---|---|
BDC Dial Included | No |
Custom Dial Compatible | Yes |
Daylight Bright Illumination | Yes |
Custom Dial System (CDS) | Yes |
Elevation Adjustment Type | CDS-ZL2 |
Electronic Reticle Level | No |
Light Management System | Professional-Grade Optical System |
Locking Dial | Yes |
Magnification Type | Variable |
Nightvision Compatible Illumination | No |
Reticle Focal Plane | Second Focal Plane |
Revolution Indicator | Yes |

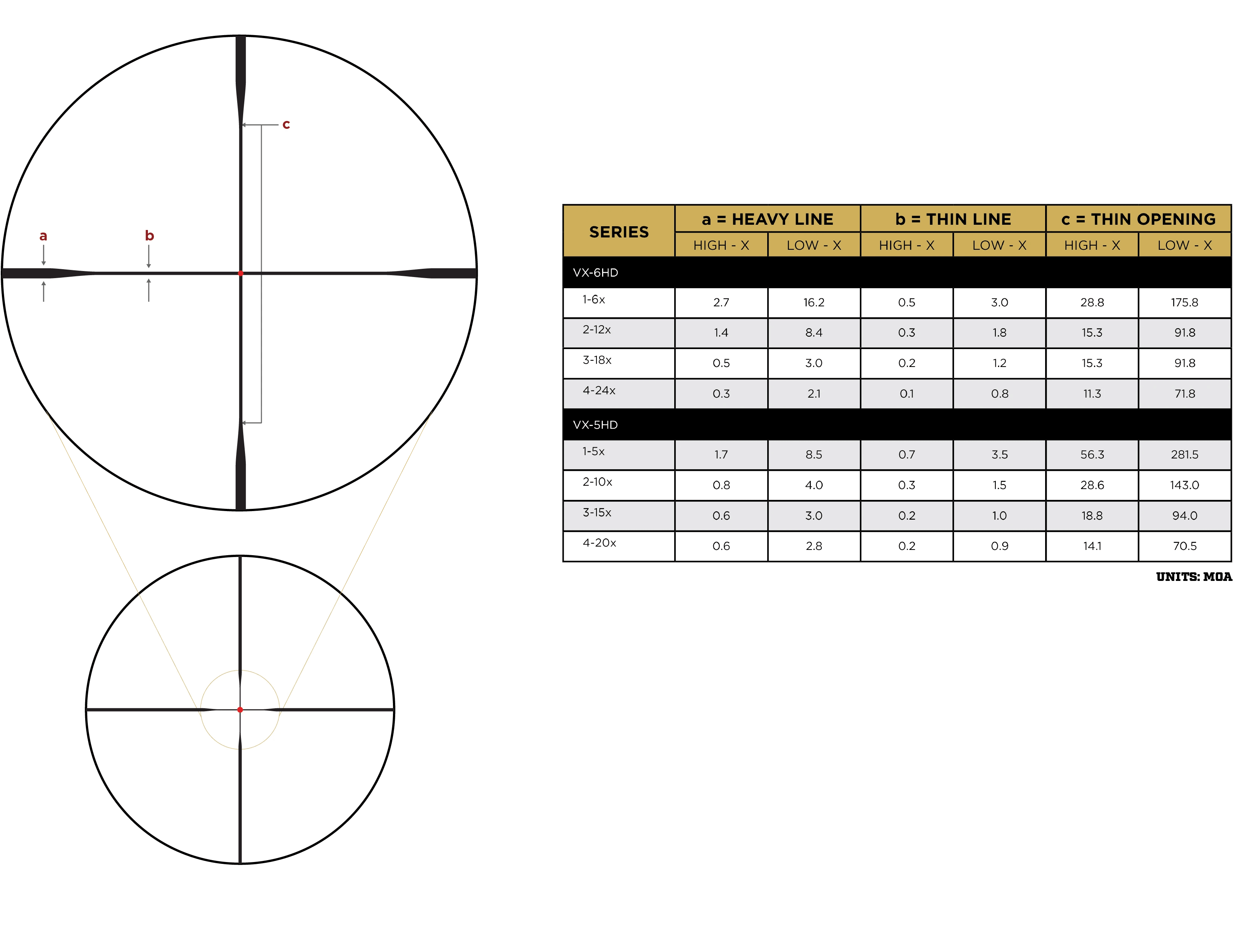

Reticle | Illum. FireDot Duplex |
Rezero Type | Set Screw |
Reticle Type | Illuminated |
Adjustable Objective | No |
Side Focus | No |
Switch Type | Push Button |
Windage Adjustment Type | Pop-Up Rezero |
Weight (oz) | 14.7 |
Elevation Adjustment Value per Click | 1/4MOA |
Elevation Adjustment Range (MOA) | 170 |
Elevation Adjustment Range (MIL) | 49 |
Elevation Adjustment Range (cm @ 100m) | 495 |
Elevation Adjustment Per Revolution | 20 MOA |
Elevation Dial Travel Limit | 38MOA |
Windage Adjustment Value per Click | 1/4MOA |
Windage Adjustment Range (MOA) | 170 |
Windage Adjustment Range (MIL) | 49 |
Windage Adjustment Range (cm @ 100m) | 495 |
Windage Adjustment Per Revolution | 15 MOA |
Magnification Max | 5 |
Magnification Min | 1 |
Objective Lens Diameter (mm) | 24 |
Linear FOV Low Mag (ft@100yds) | 120.9 |
Linear FOV High Mag (ft@100yds) | 22 |
Angular FOV Low Mag (Degrees) | 22.8 |
Angular FOV High Mag (Degrees) | 7.7 |
Eye Relief Low Mag (in) | 3.7 |
Eye Relief High Mag (in) | 3.8 |
Fixed Parallax-Free Distance (yd) | 150 |
Battery Life (hr), Low Intensity | 1600 |
Battery Life (hr), Medium Intensity | 1000 |
Battery Life (hr), High Intensity | 300 |
Number of Illum Settings | 8 |
Objective Length (in) | 0 |
