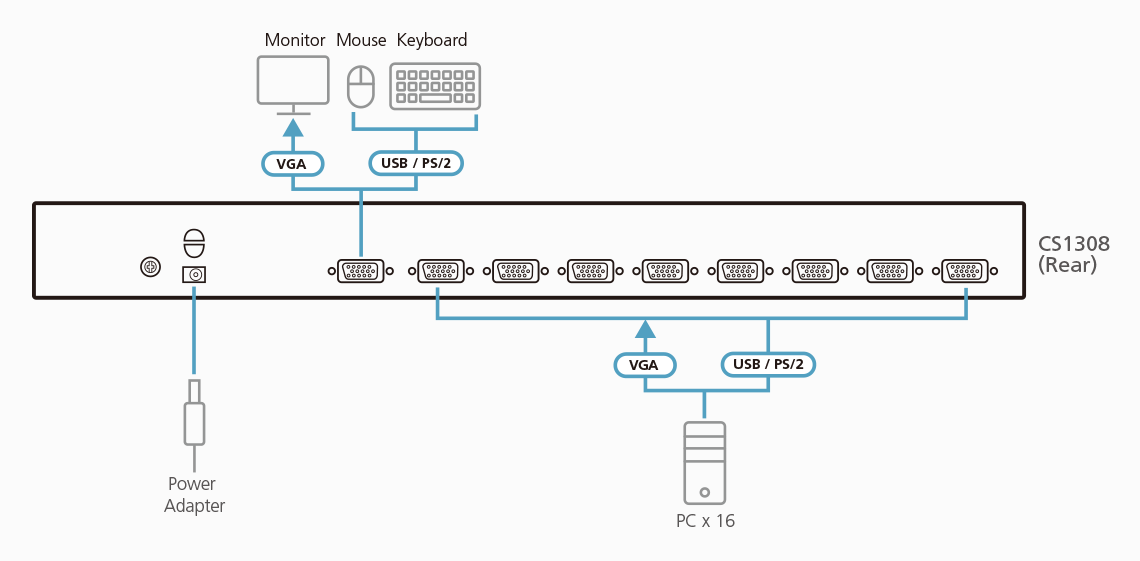

The ATEN CS1308 is an 8-port PS/2-USB VGA KVM switch that allows one keyboard, mouse and monitor console to control up to eight compatible computers or servers. It is designed for desktop use or installation in a standard 19-inch rack.
Key Features
- Controls up to 8 computers directly from one console
- Cascade up to 2 levels to control as many as 64 computers
- Supports both PS/2 and USB keyboard/mouse connections
- VGA video resolution up to 2048 x 1536; DDC2B

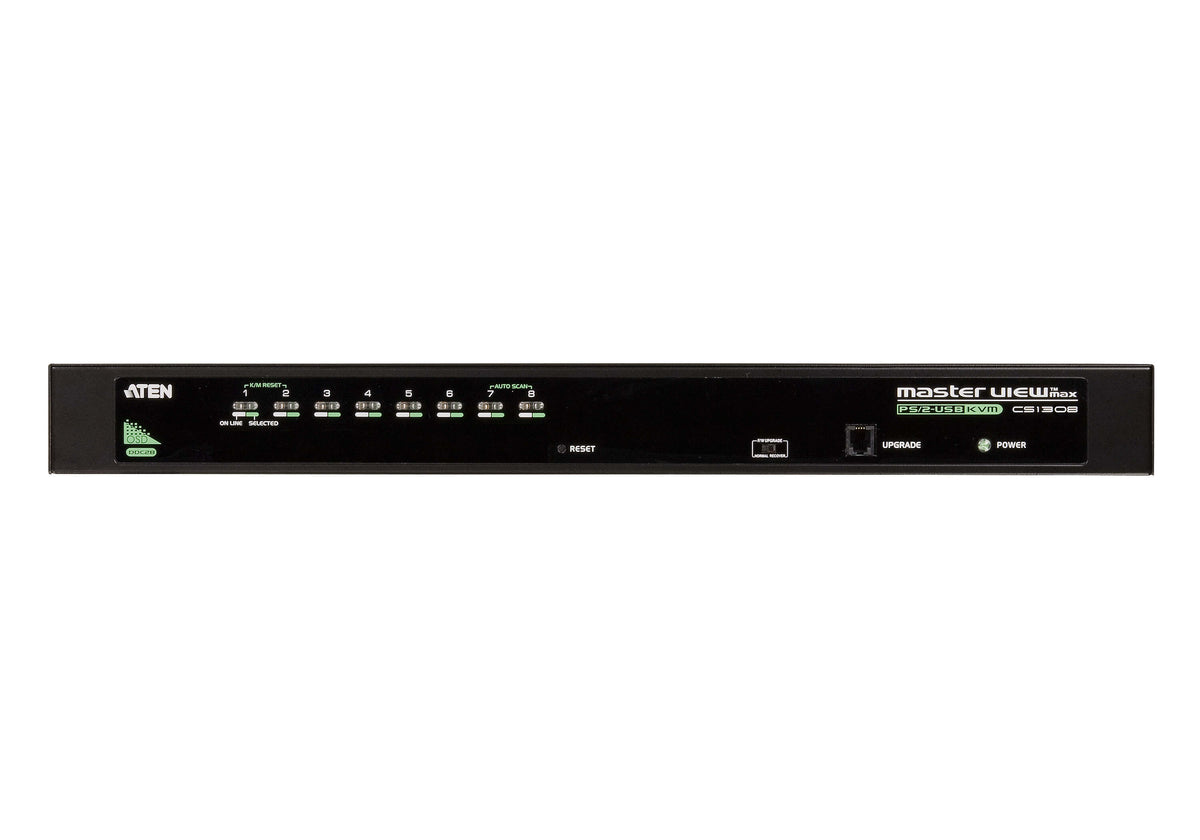

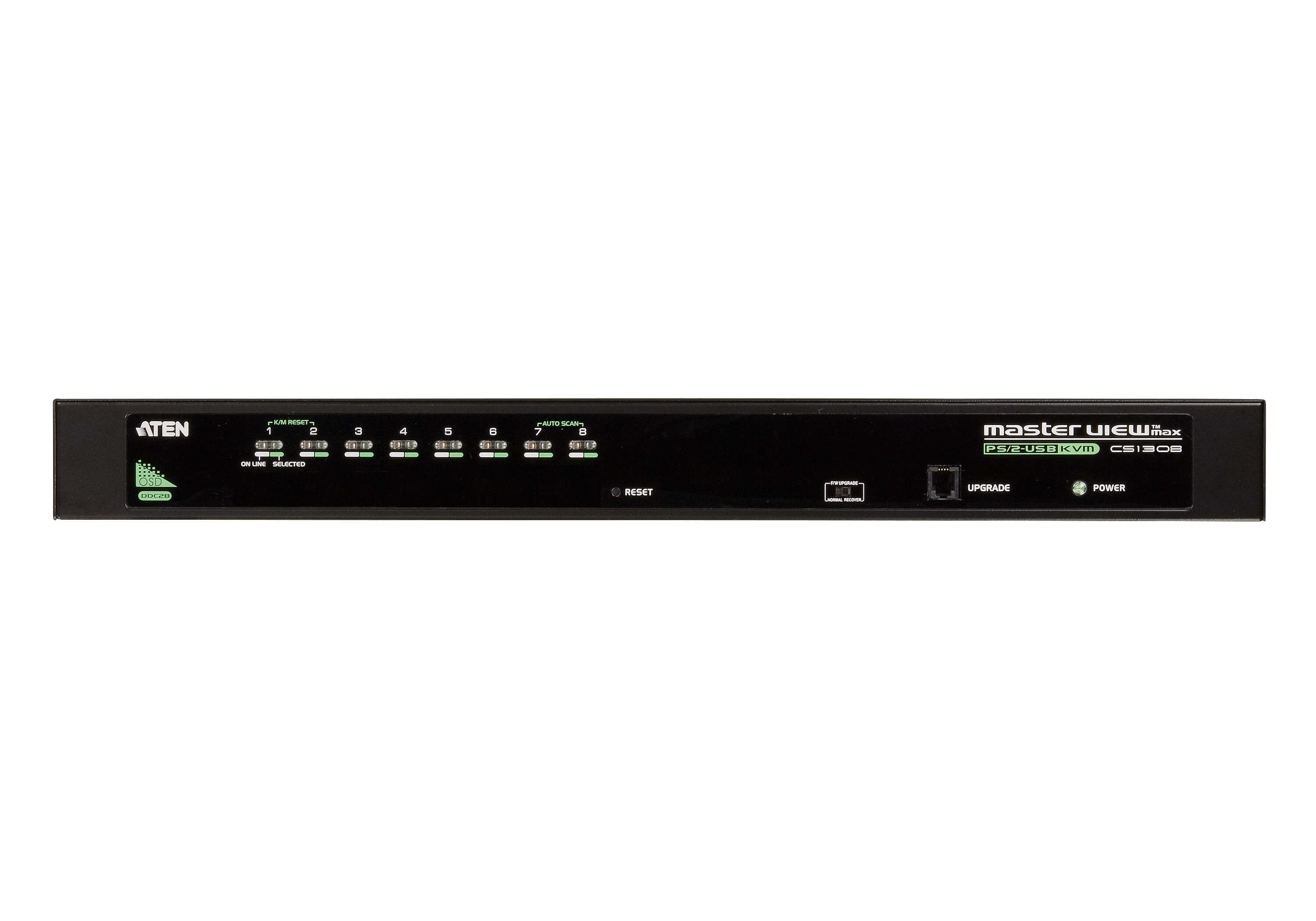

- Computer selection via front-panel pushbuttons, hotkeys or on-screen display (OSD)
- Auto Scan for monitoring selected computers
- Two-level password security
- Hot-pluggable computer connections
- Firmware upgradeable
- No software installation required
- Desktop or 19-inch rackmount, 1U installation
Technical Specifications
-
Model: CS1308
-

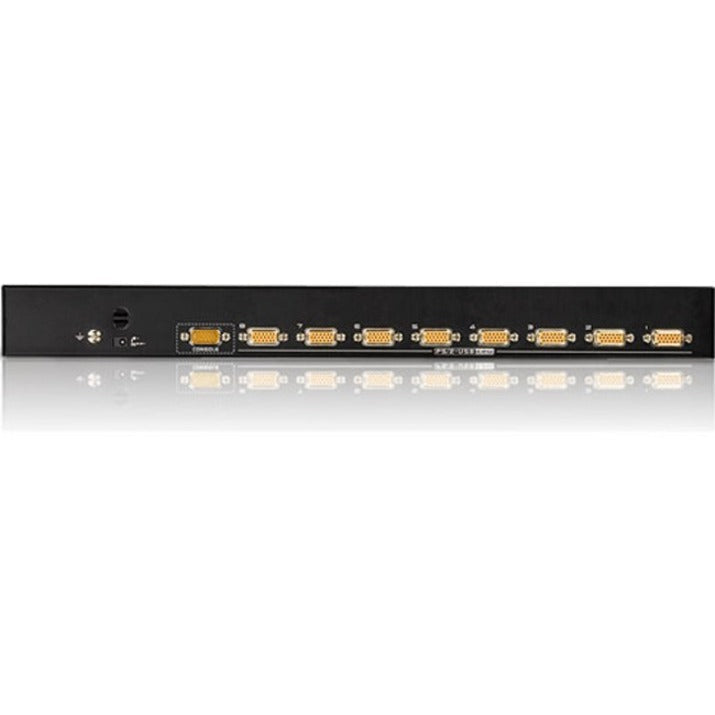

Direct Computer Connections: 8
-
Maximum Connections: 64 via cascade
-
Keyboard / Mouse: PS/2 and USB
-
Video: VGA, up to 2048 x 1536
-
Housing: Metal
-
Weight: approximately 1.89kg
-
Dimensions: approximately 43.72 x 16.13 x 4.40cm
-
Operating Temperature: 0°C to 50°C
What's in the Box
- 1 x ATEN CS1308 KVM Switch with Rack Mount Kit
- 1 x Console Cable
- 1 x Firmware Upgrade Cable
- 1 x Foot Pad Set (4 Pads)
- 1 x Power Adapter
- 1 x User Instructions
Compatibility note: Individual computer KVM cable sets are required to connect the computers/servers and should be selected according to the required PS/2 or USB connection type.
