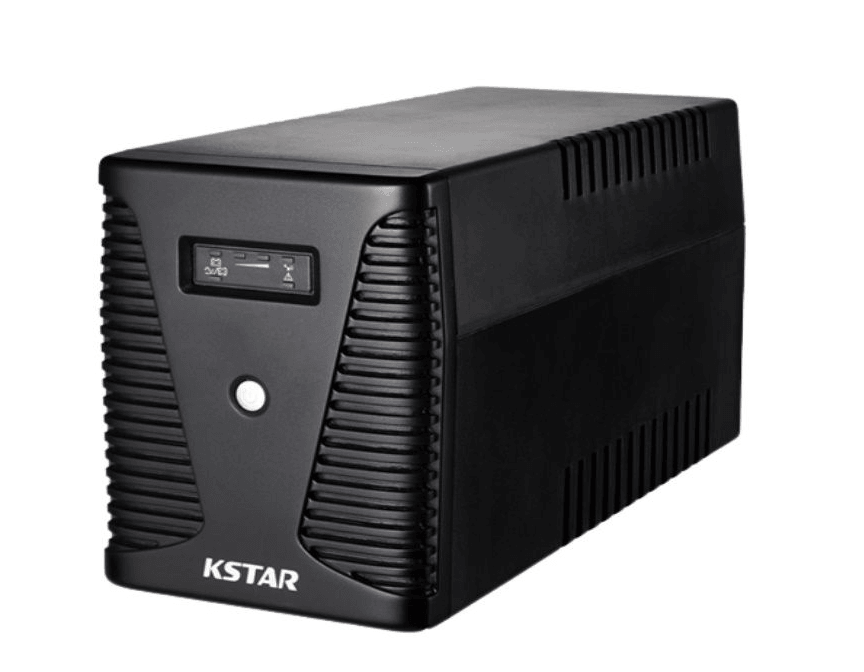

KSTAR 1000VA LINE INTERACTIVE UPS W/USB
KSTAR 1000VA LINE INTERACTIVE UPS W/USB
The KSTAR UA100 Line Interactive UPS - 1000VA boasts an excellent charging mode that not only offers comprehensive power protection against surges and spikes, but also provides pure voltage through an AC voltage stabilizer.
Its compact size and built-in self-diagnostic function make it the perfect backup power for terminal equipment, PCs, stations, and SOHO equipment. Fast and easy to install and operate, this UPS is a must-have for anyone in need of reliable power.
FEATURES
- AVR boost and buck
- Cold start function
- Smart RS-232/USB interface for power management
- Built-in self-diagnostic function
- Modem/LAN internet protection
- Generator compatible(Optional)
SPECIFICATIONS
Model | UA100 |
Capacity | 1000VA/600Watts |
Input | |
Normal Input Voltage | 10/120Vac or 220/230/240 Vac |
Operating Voltage Range | 81-145Vac/162-290 Vac |
Operating Frequency Range | 50/60 Hz (1+/- 10%) |
Output | |
Output Voltage Range (Batt. Mode) | Simulated Sinewave at nominal voltage +/-10% |
Frequency Range (Batt. Mode) | 50Hz or 60Hz +/- 1Hz |
Transfer Time | Typical 2-6ms, 10ms max |
Battery | |
Batter Type and Number | 12V/7Ah x2 |
Typical Recharge Time | 6-8 hours (To 90% capacity) |
Protection | |
Full Protection | Overload and Overcharge Protection |
Indicators | |
Indicator | AC Mode, Battery Mode, Load Level, Battery Level |
Alarm | |
Battery Mode | Sounding every 10 seconds |
Battery Low | Sounding every second |
Overload | Sounding every 0.5 seconds |
Battery Replacement | Sounding every 2 seconds |
Alarm Fault | Continuously Sounding |
Management | |
USB and RS-232 Port (Optional) | Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC |
Environment | |
Operating Temperature | 0-40 Degree Celsius |
Humidity Range | 0-95% (Non-condensing) |
Noise Level | |
Physical | |
Dimensions | 149.3mm x 338mm x 162mm (W x D x H) |
Net Weight | 7.8kg |
Standards | |
Safety | IEC/EN62040-1IEC/EN60950-1 |
EMC | IEC/EN62040-2IEC61000-4-2IEC61000-4-3IEC61000-4-4IEC61000-4-5IEC61000-4-6IEC61000-4-8 |
KSTAR 1000VA LINE INTERACTIVE UPS W/USB
The KSTAR UA100 Line Interactive UPS - 1000VA boasts an excellent charging mode that not only offers comprehensive power protection against surges and spikes, but also provides pure voltage through an AC voltage stabilizer.
Its compact size and built-in self-diagnostic function make it the perfect backup power for terminal equipment, PCs, stations, and SOHO equipment. Fast and easy to install and operate, this UPS is a must-have for anyone in need of reliable power.
FEATURES
- AVR boost and buck
- Cold start function
- Smart RS-232/USB interface for power management
- Built-in self-diagnostic function
- Modem/LAN internet protection
- Generator compatible(Optional)
SPECIFICATIONS
Model | UA100 |
Capacity | 1000VA/600Watts |
Input | |
Normal Input Voltage | 10/120Vac or 220/230/240 Vac |
Operating Voltage Range | 81-145Vac/162-290 Vac |
Operating Frequency Range | 50/60 Hz (1+/- 10%) |
Output | |
Output Voltage Range (Batt. Mode) | Simulated Sinewave at nominal voltage +/-10% |
Frequency Range (Batt. Mode) | 50Hz or 60Hz +/- 1Hz |
Transfer Time | Typical 2-6ms, 10ms max |
Battery | |
Batter Type and Number | 12V/7Ah x2 |
Typical Recharge Time | 6-8 hours (To 90% capacity) |
Protection | |
Full Protection | Overload and Overcharge Protection |
Indicators | |
Indicator | AC Mode, Battery Mode, Load Level, Battery Level |
Alarm | |
Battery Mode | Sounding every 10 seconds |
Battery Low | Sounding every second |
Overload | Sounding every 0.5 seconds |
Battery Replacement | Sounding every 2 seconds |
Alarm Fault | Continuously Sounding |
Management | |
USB and RS-232 Port (Optional) | Supports Windows 2000/2003/XP/Vista/2008, Windows 7, Linux, Unix, and MAC |
Environment | |
Operating Temperature | 0-40 Degree Celsius |
Humidity Range | 0-95% (Non-condensing) |
Noise Level | |
Physical | |
Dimensions | 149.3mm x 338mm x 162mm (W x D x H) |
Net Weight | 7.8kg |
Standards | |
Safety | IEC/EN62040-1IEC/EN60950-1 |
EMC | IEC/EN62040-2IEC61000-4-2IEC61000-4-3IEC61000-4-4IEC61000-4-5IEC61000-4-6IEC61000-4-8 |
