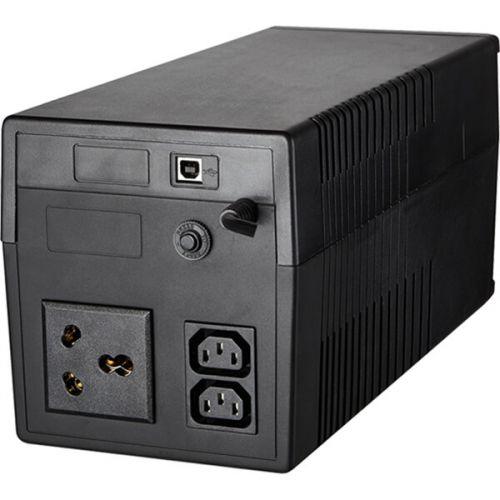

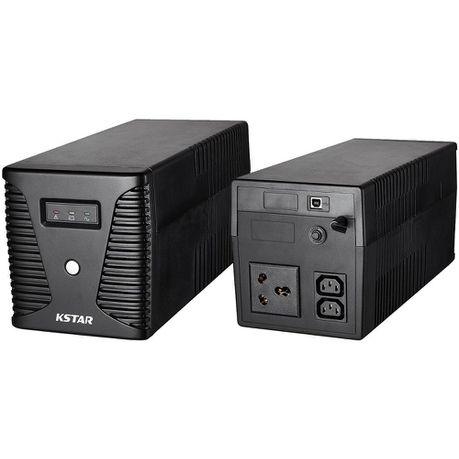

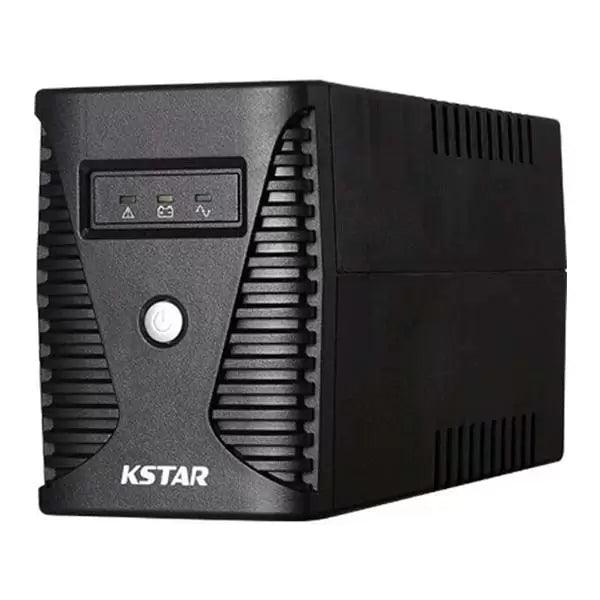

KSTAR 1000VA LINE INTERACTIVE UPS

KSTAR UA series is a line interactive 1000VA UPS which is integrated with AC voltage stabilizer, standby power, and surge voltage suppression, meanwhile with compact size, full function, high efficiency, high reliability, ease to be used. It can supply comprehensive power protection for terminal equipment, PC, station, SOHO equipment.

Technical Specification
Model UA100
Capacity 1000VA
Input
Voltage 110/120 VAC or 220/230/240 VAC
Voltage Range 81-145 VAC or 162-290 VAC or 140-300 VAC
Frequency Range 60 or 50 Hz (auto sensing)
Output
AC Voltage Regulation (Batt. Mode) +-10%
Frequency Range (Batt. Mode) 60 or 50 Hz +- 1Hz
Transfer Time Typical 2-8 ms
Waveform (Batt. Mode) Simulated Sine Wave
Battery
Voltage 24VDC
Physical Specifications
Dimensions D x W x H (mm) 353 x 149 x 162
Environmental Specifications
Operating Environment 0-90% RH @ 0-40 C(non-condensing)
