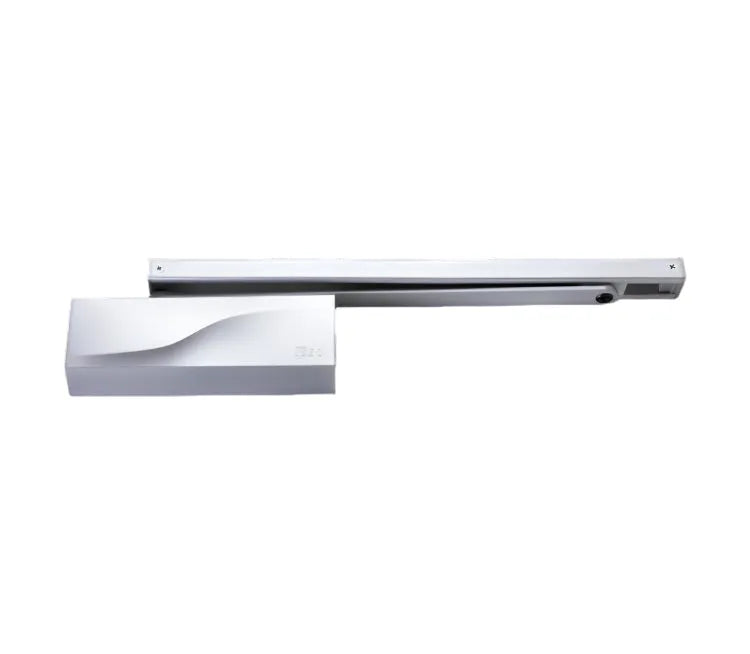

ISEO IS65 Sliding-Arm Door Closer (EN 3)
Keep every doorway secure, silent, and compliant
Upgrade your fire-rated doors with the sleek ISEO IS65 sliding-arm closer. Purpose-built for South African commercial and residential buildings, this EN1154-certified closer delivers reliable closing power (Force 3) for doors up to 950 mm wide and 80 kg without the bulky projection of a scissor arm. Enjoy a quieter workspace, better energy efficiency, and peace of mind knowing the door always latches behind you.
Why South African installers choose the IS65
-
Slimline sliding track — minimalist rail keeps corridors clear, ideal for offices, clinics, and sectional title complexes.
-
Fire-door ready — tested to EN1634; meets local SABS fire-door regulations when fitted correctly.
-
Consistent Force 3 closing — perfect for everyday internal doors that still need dependable self-closing action.
-
Fully adjustable valves — fine-tune closing speed and latching speed on-site for a whisper-quiet close.
-
Non-handed & quick to fit — mounts on left- or right-hand doors with the supplied template, saving installers time.
-
2-year manufacturer’s warranty — backed by ISEO’s global support network.
Technical Specs & Features
Feature |
Detail |
Closing force |
EN 3 (Door width 750–950 mm, max 80 kg) |
Certification |
EN1154, EN1634 fire-door compliant |
Opening angle |
Up to 180° |
Adjustment |
Closing speed & final latch speed via dual valves |
Body dimensions |
± 225 mm (L) × 60 mm (H) × 43 mm (D) |
Arm type |
Low-profile sliding rail, aluminium |
Finish |
Silver anodised (Grey & Black on request) |
Operating temp |
–15 °C to +40 °C |
What's in the Box |
1 x ISEO SLIDING DOOR CLOSER - IS65 |
Typical Use Cases
-
Office interiors needing silent, self-closing doors to conserve air-conditioning.
-
Retail fire escapes where bulky arms may snag stock or trolleys.
-
Apartment passages to meet body-corporate safety bylaws without spoiling décor.
Installation Tips (Installer-friendly)
-
Mark hinge-side pull installation using the supplied template.
-
Secure the closer body with 4 × M5 screws into steel, timber or aluminium frame.
-
Fit the slide channel to the door leaf, ensuring a 3 mm rail gap.
-
Adjust valve 1 (sweep) for general speed; valve 2 (latch) for the final 10°.
-
Cycle the door five times and re-adjust for a silent, firm close.
Always seal fixings with fire-rated mastic on FD30/FD60 door cores.
FAQs
Is Force 3 enough for high-traffic doors?
Yes—Force 3 suits most interior doors. For doors over 950 mm, select an EN 4 or 5 closer.
Can I fit the IS65 on an outward-opening fire door?
Absolutely. The unit is non-handed; just invert the template.
Does it have a delayed action?
The IS65 focuses on swift yet silent closure; if you need delay, look at the ISEO IS315.
