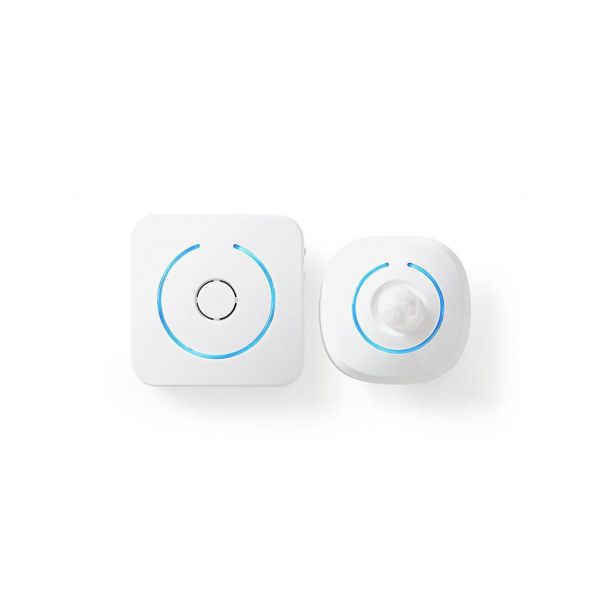

The RL-9816M Wireless PIR Motion Sensor Entry Alarm is a two-part wireless alert system with a PIR motion sensor/transmitter and a separate receiver. It is suitable for entrances, shops, garages, offices and similar areas where an immediate sound-and-light alert is useful when motion is detected.
Key Features
- Model: RL-9816M
- Wireless PIR motion detection
- Separate sensor/transmitter and receiver
- 8 selectable chord ringtones
- Light and sound indication
- Learning-code pairing designed to reduce interference
- Wireless frequency: approximately 433.85MHz
- Wireless range: up to approximately 80m in an unobstructed open area
- PIR detection distance: over approximately 4m under suitable conditions
- Low-voltage indication
- Wire-free battery-powered installation
Approximate Unit Dimensions
- Receiver: 86 x 86 x 25mm
- PIR sensor: 75 x 75 x 25mm
Power
- Receiver: 3 x AA batteries, 4.5V DC
- PIR sensor/transmitter: 3 x AA batteries, 4.5V DC
- Batteries are not included

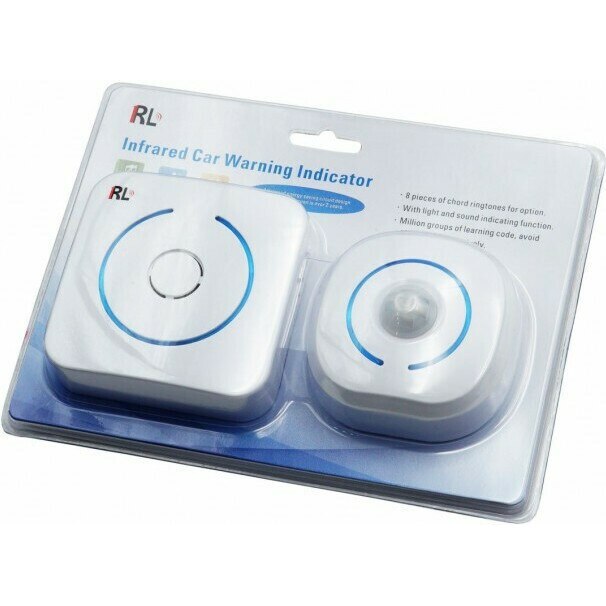

What's in the Box
- 1 x RL-9816M Wireless Receiver
- 1 x RL-9816M PIR Motion Sensor / Transmitter
Installation note: Wireless and PIR range are affected by walls, interference, mounting position and environmental conditions.
