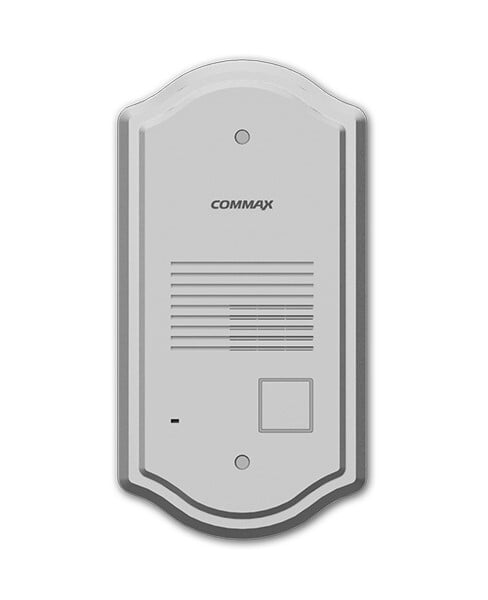

The COMMAX DR-DW3N is a wall-mounted audio door station for compatible COMMAX TP-NRC / TP-NAC intercom installations. It provides a visitor call button, speaker and microphone, with provision for compatible electric-door release control.
Key Features
- Single-button audio door station
- Built-in speaker and microphone
- Compatible with suitable COMMAX TP-NRC / TP-NAC intercom equipment

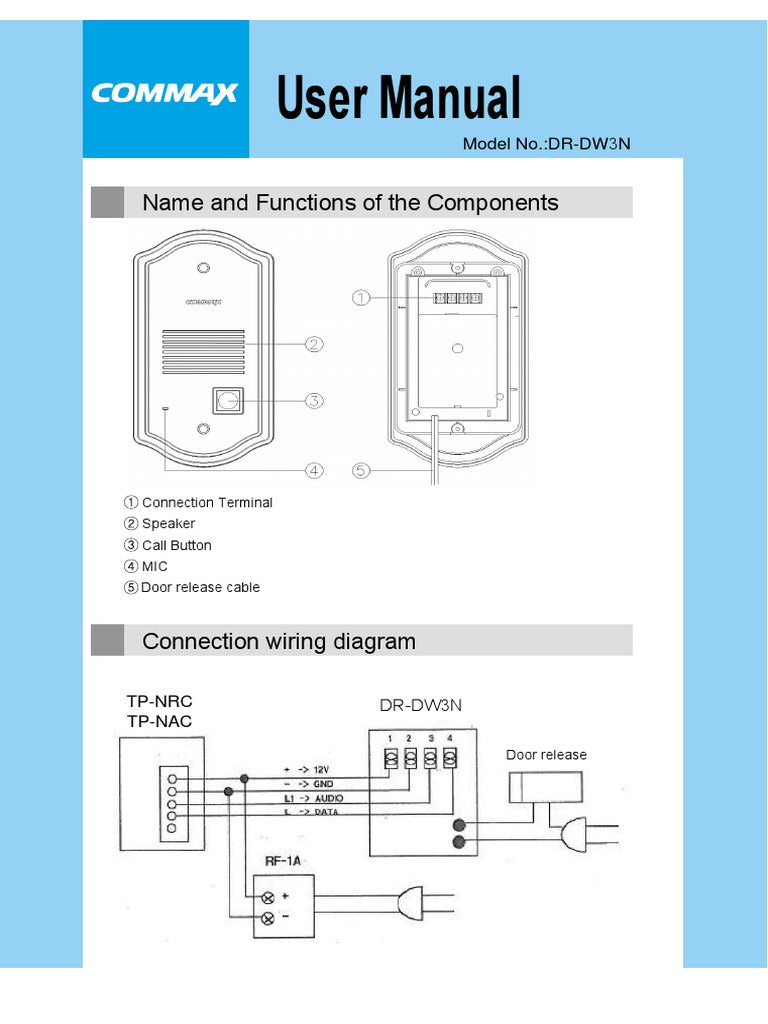

- 4-wire polarity connection
- Door-release cable / control provision
- Wall-mounted design
- Communication distance up to approximately 100 m using suitable 0.65 mm cable
Specifications
- Model: DR-DW3N
- Rated voltage: 12 V DC
- Current: approximately 100 mA
- Wiring: 4 wires, polarity sensitive
- Dimensions: approximately 120 x 231.5 x 51 mm
- Weight: approximately 650 g
Compatibility note: Confirm the installed TP-series panel, wiring and door-release hardware before ordering.
What's in the Box
- 1 x COMMAX DR-DW3N audio door station
