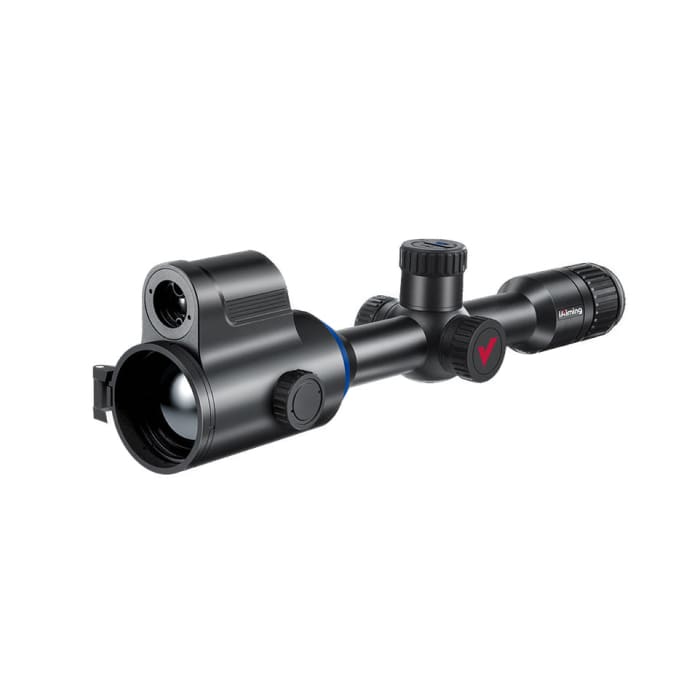

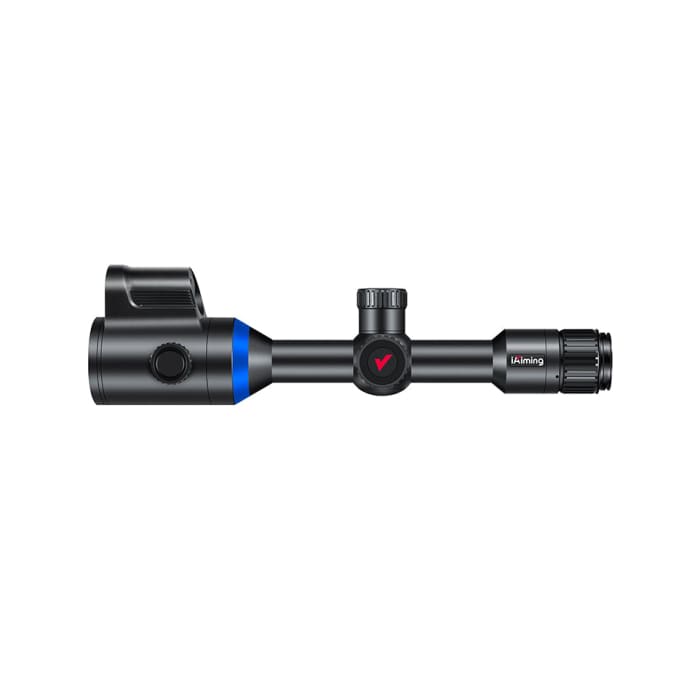

The iA-612 LRF Thermal Rifle Scope is a high-performance thermal imaging optic designed for precision detection and observation in low-light and no-light environments. Featuring a powerful 640×512 VOx uncooled thermal sensor with a 12μm pixel pitch and ≤30mK NETD sensitivity, this scope delivers exceptional thermal detail and target recognition even in challenging weather conditions.
Equipped with a 50mm objective lens and advanced image processing, the iA-612 LRF provides a detection distance of up to 2600 meters for human-sized targets. The integrated laser rangefinder allows accurate distance measurement up to 1000 meters, making this optic ideal for precision shooting and long-range observation.
Key Features
-
High-Resolution Thermal Sensor – 640×512 VOx uncooled sensor with 12μm pixel pitch
-
Excellent Thermal Sensitivity – ≤30mK NETD for clear thermal imaging
-
50Hz Frame Rate – Smooth image rendering and target tracking
-

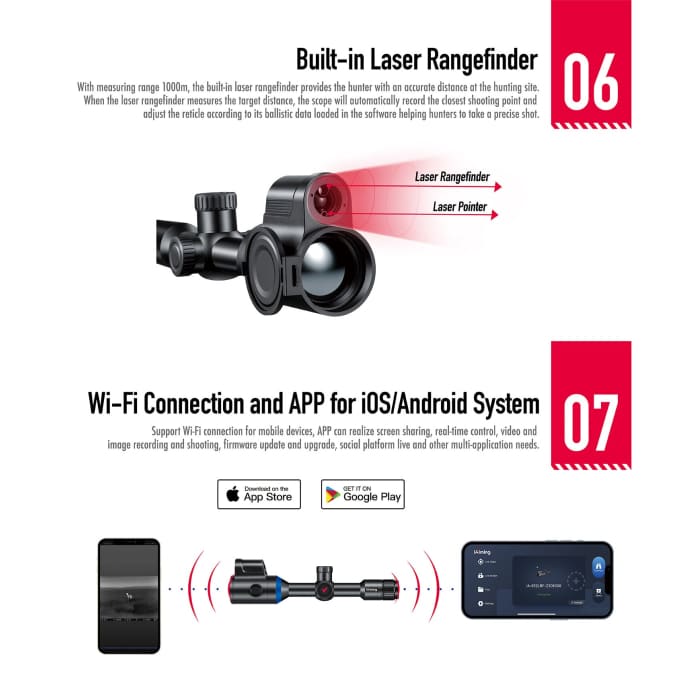

Laser Rangefinder – Accurate distance measurement up to 1000m
-
Detection Range – Up to 2600m for human-sized targets
-
Digital Zoom – Continuous zoom from 2.8× to 22.4×
-
AMOLED Display – 1024×768 resolution display for crisp image clarity
-
Multiple Color Palettes – White Hot, Black Hot, Ironbow, Glowbow, Sepia, Red Hot, and Green Hot
-

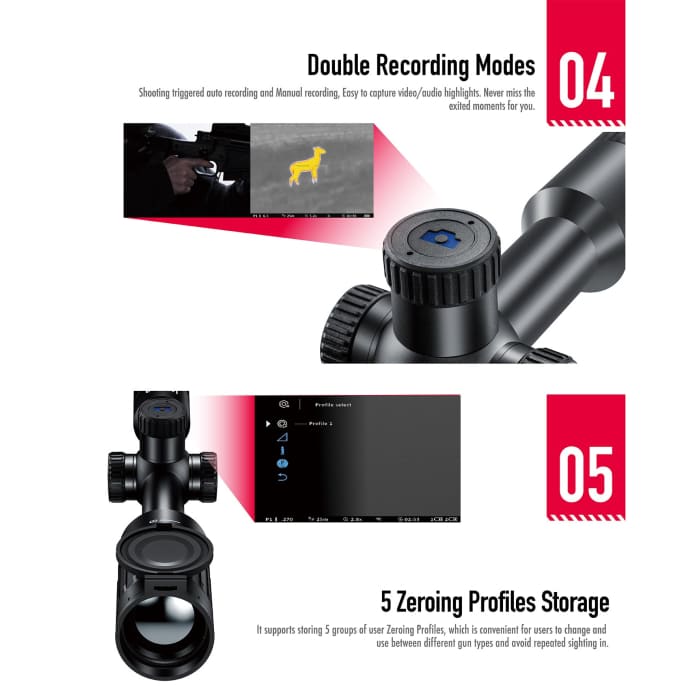

Integrated Video Recorder – Record video and images with built-in 32GB storage
-
WiFi Connectivity – Wireless connection for streaming and device integration
-
Laser Pointer – 5mW pointer for target indication
-
Durable Construction – Aluminum alloy body with IP66 protection rating
Technical Specifications
-
Model: iA-612 LRF
-
Sensor Type: VOx Uncooled
-
Sensor Resolution: 640 × 512
-
Pixel Pitch: 12 μm
-
NETD: ≤30 mK
-
Frame Rate: 50 Hz
-
Objective Lens: 50 mm
-
Field of View: 8.8° × 7.0°
-
Digital Zoom: 2.8× – 22.4×
-
Eye Relief: 48 mm
-
Diopter Adjustment: ±4
-
Display Type: AMOLED
-
Display Resolution: 1024 × 768
-
Detection Distance (Human 1.8m): 2600 m
-
Reticle Types: 10
-
Adjustment Accuracy: 0.15 mil
-
Adjustment Range: 73.2 × 58.6 mil
-
Video Format: MP4 / JPG
-
Internal Storage: 32 GB
-
WiFi: 2.4 GHz (802.11 b/g/n)
-
Laser Wavelength: 905 nm
-
Rangefinder Accuracy: ±1 m
-
Rangefinder Distance: Up to 1000 m
-
Battery System: Built-in 18650 ×2 + External 18500 ×1
-
Battery Capacity: 6400 mAh (internal) + 2000 mAh (external)
-

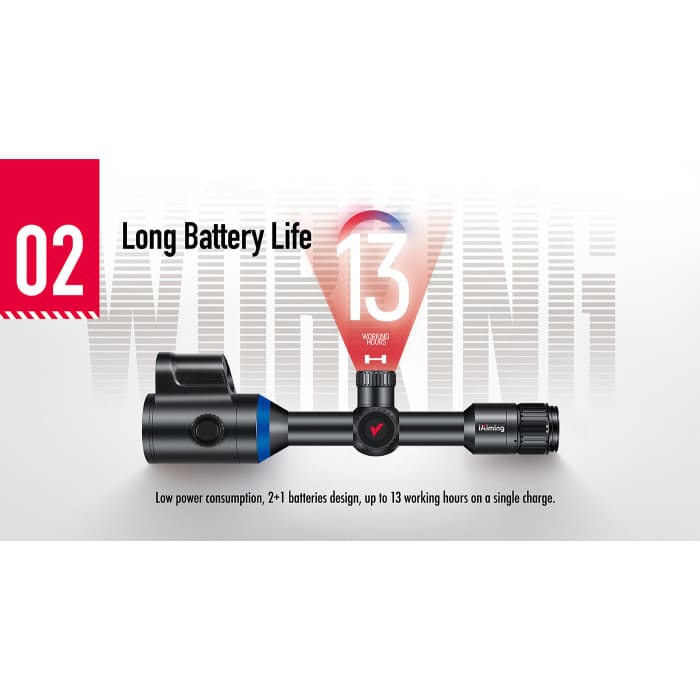

Operating Time: ≥12 hours
-
External Power: 5 V
-
Charging Time: Approx. 5 hours
-

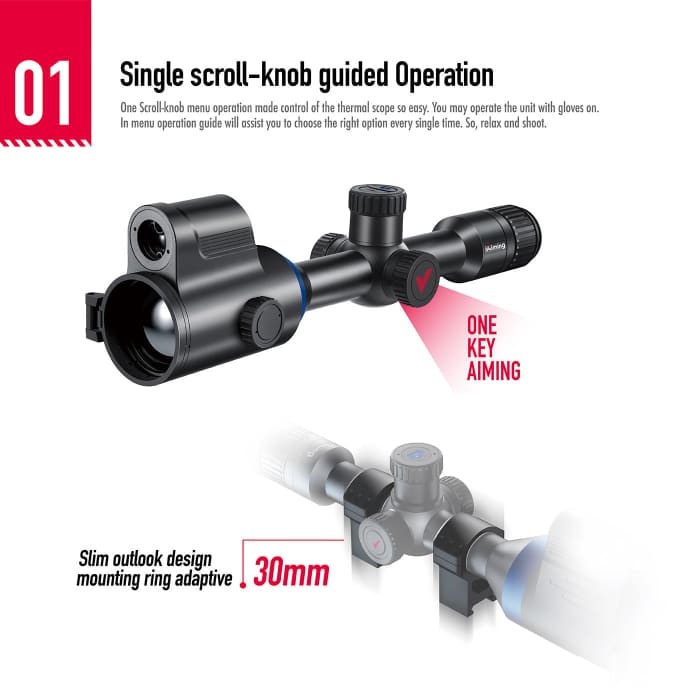

Mount Type: 30 mm scope rings
-
Maximum Recoil Resistance: 6000 J
-
Shock Resistance (Shotguns): 900 G
-
Body Material: Aluminum alloy
-
Weight: 1050 g
-
Length: 365 mm
-
Protection Rating: IP66
-
Operating Temperature: -25°C to +50°C
-
Storage Temperature: -50°C to +60°C
With advanced thermal imaging technology, integrated rangefinding, and onboard recording capabilities, the iA-612 LRF thermal scope delivers a powerful combination of detection performance, durability, and versatility for professional users and demanding outdoor environments.
