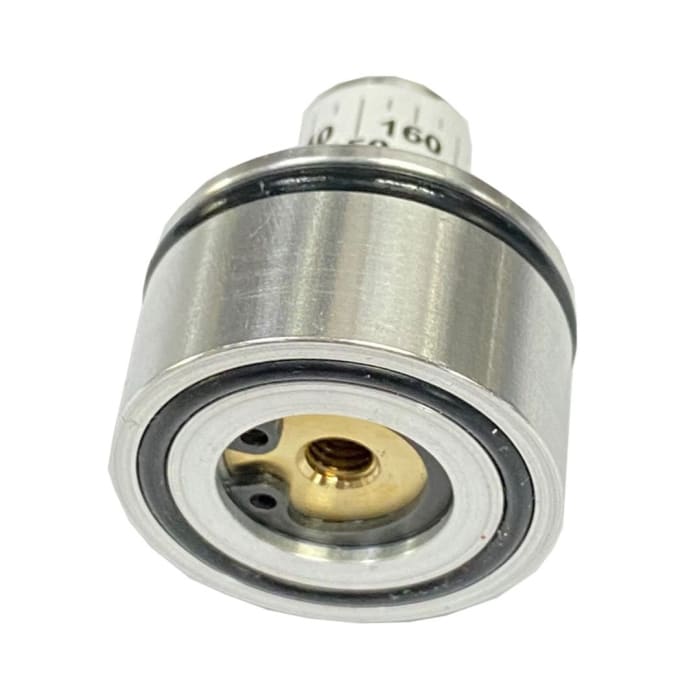

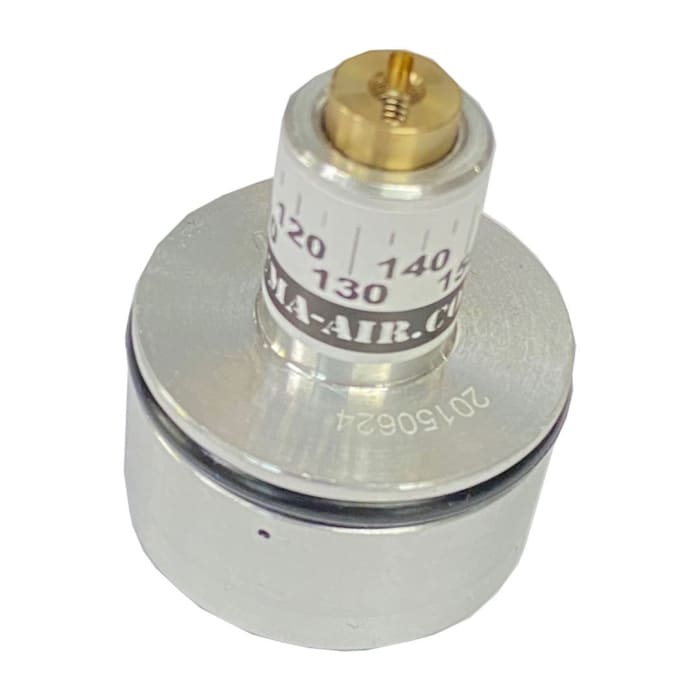

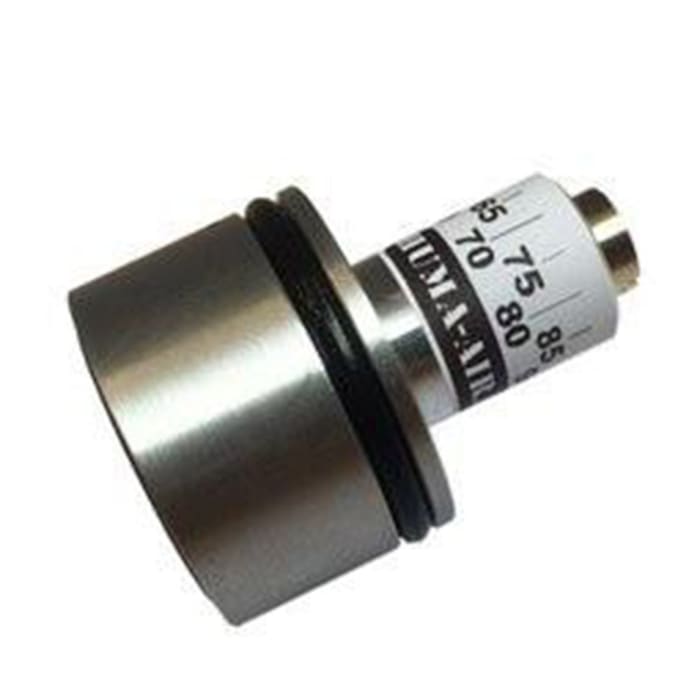

Huma-Air Tuning Regulator for Weihrauch HW100
This Huma-Air pressure regulator is engineered for the Weihrauch HW100 air rifle and installs directly into the pressure tube. Compatible with all HW1xx models featuring front fill or quick-fill units on the cylinder's front side.
The regulator vents to atmosphere without modifications to your pressure tube—no drilling required, eliminating power creep issues.
Installation Instructions
- Depressurize the rifle completely
- Unscrew the cylinder endcap from the action side
- Remove the large o-ring from the endcap
- Insert the Huma-Air regulator into the pressure tube with the pressure label facing the barrel
- Reinstall the endcap
Bridge the factory regulator by removing its steel ball. Once removed, the original regulator becomes inactive and the Huma-Air unit controls pressure adjustment.
Benefits of the Huma-Air HW100 Regulator
-
Improved accuracy through elimination of pellet velocity fluctuations
-
Consistent pellet speed across the entire working pressure range
-
Enhanced shot count with immediate flat shot strings
-
Temperature-stable performance in varying conditions
Package Includes
- Regulator preset to your specifications
- Pressure scale in Bar for fine-tuning and adjustment
- "Huma-Air Regulated" breech sticker
- PDF fitting instructions download link
Recommended Pressure Settings
-
Low pressure range: 60–110 bar for 16 Joule / 12 ft/lbs models
-
High pressure range: 100–170 bar for FAC rifles in .177, .22, and .25 calibers
Huma-Air Quality Assurance
All Huma-Air regulators are CNC machined from aircraft-grade aluminum and bronze. Each unit undergoes individual assembly, computerized simulation testing, and pressure calibration. Premium Belleville springs ensure less than 1% variance in repeat cycle accuracy.
Warranty: 2-year coverage (excludes shipping and wear items such as o-rings and valve discs).
*NO RETURNS ON HUMA REGULATORS*
