HILOOK 8 PORT POE SWITCH 100MBPS NS-0109P-60(B)

R 1,030.00
Unit price  per
history

Guaranteed safe & secure checkout

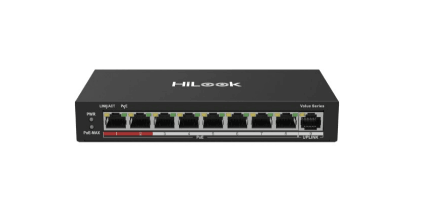

The HiLook NS-1090P-60(B) is an 8-port unmanaged network switch with Power over Ethernet (PoE) support. It is designed for small to medium-scale network installations and is suitable for both home and office use.

This switch supports 10/100Mbps auto-negotiation on all ports, meaning it can automatically detect the speed and duplex mode of connected devices and adjust accordingly. It also supports PoE on all eight ports, delivering power and data over a single Ethernet cable to PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones.

The NS-1090P-60(B) has a maximum PoE power output of 60W, meaning it can provide up to 15.4W per port to connected devices. It also features a compact metal housing for durability and heat dissipation.

Overall, the HiLook NS-1090P-60(B) is a cost-effective and reliable network switch for small to medium-scale PoE-enabled network installations. Its multiple ports and high PoE power output make it a great choice for users who need to connect multiple PoE devices to their network.



FEATURES ;

  • Unmanaged switch with 8 x 100 Mbps PoE ports, 1 x 100 Mbps RJ45 port
  • All ports support 6 kV lighting protection
  • 60 W PoE power budget
  • Maximum transmission distance is 250 meters for port 1 to 8 in "extend" mode
  • MAC address auto learning and auto aging



TECHNICAL SPECIFICATIONS :

General

Shell : Metal material, fan-free design
Operating Temperature : -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
Power Supply : 48 VDC, 1.35 A
Storage Humidity : 5% to 95% (no condensation)
Net Weight : 0.35 kg (0.77 lb)
Gross Weight : 0.89 kg (1.96 lb)
Dimension (L × H × D) : 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
Operating Humidity : 5% to 95% (no condensation)
Power Consumption In Idle : 5 W

Network Parameters

Port Number : 8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port
Port Type : RJ45 port, full duplex, MDI/MDI-X adaptive
Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode : Store-and-forward switching
Working Mode : Standard mode (default); Extend mode
MAC Address Table : 2 K
Switching Capacity ; 1.8 Gbps
Packet Forwarding Rate : 1.339 Mpps
Internal Cache : 1 Mbits
High Priority Ports : Ports 1 to 2
Ports For Long-Distance Transmission : Ports 1 to 8

PoE Power Supply

PoE Standard : IEEE 802.3af, IEEE 802.3at
PoE Power Pin : Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply
PoE Port : Ports 1 to 8
Max. Port Power : 30 W
PoE Power Budget : 60 W
Max. Power Consumption : 65 W



What's in the box :

1 X HiLook 8 Port NS-1090P-60(B)

1 X Power Adapter

1 X Quick Start Up
