Product Description

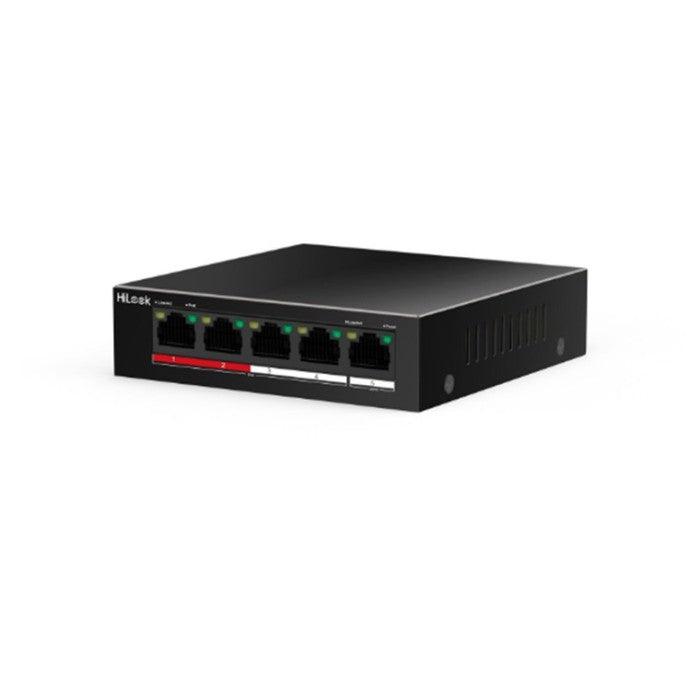

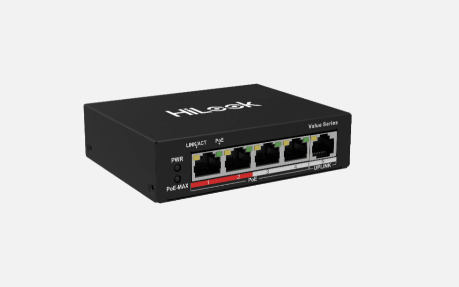

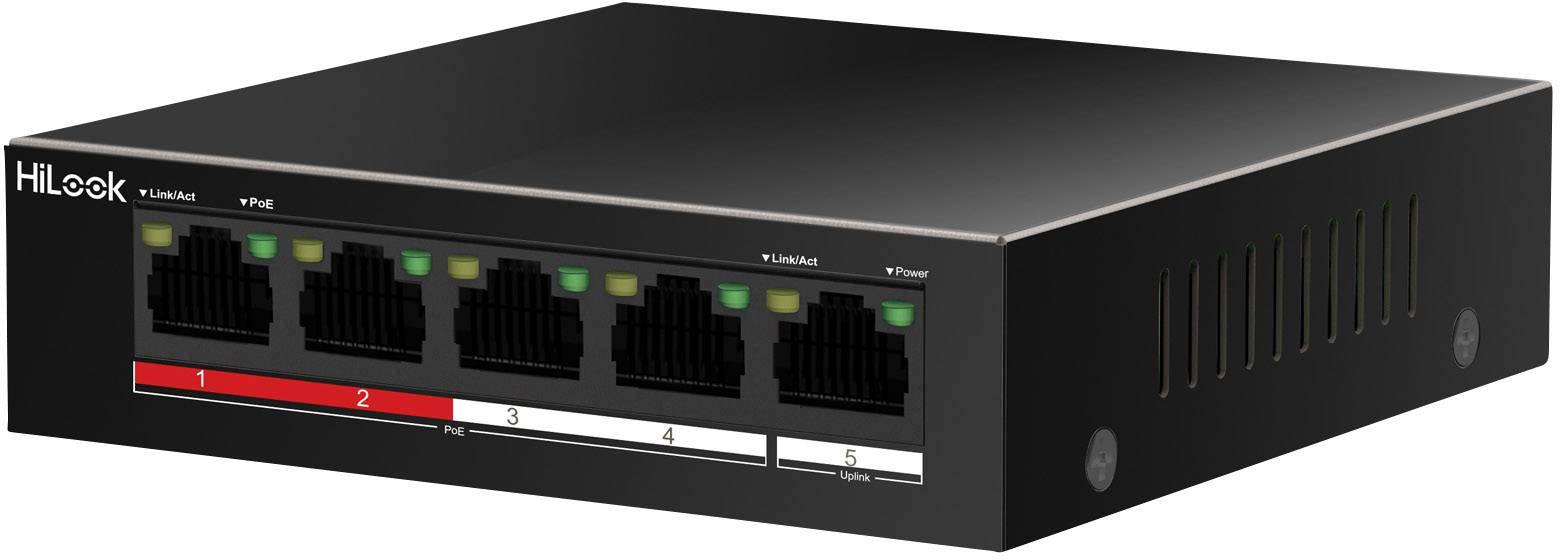

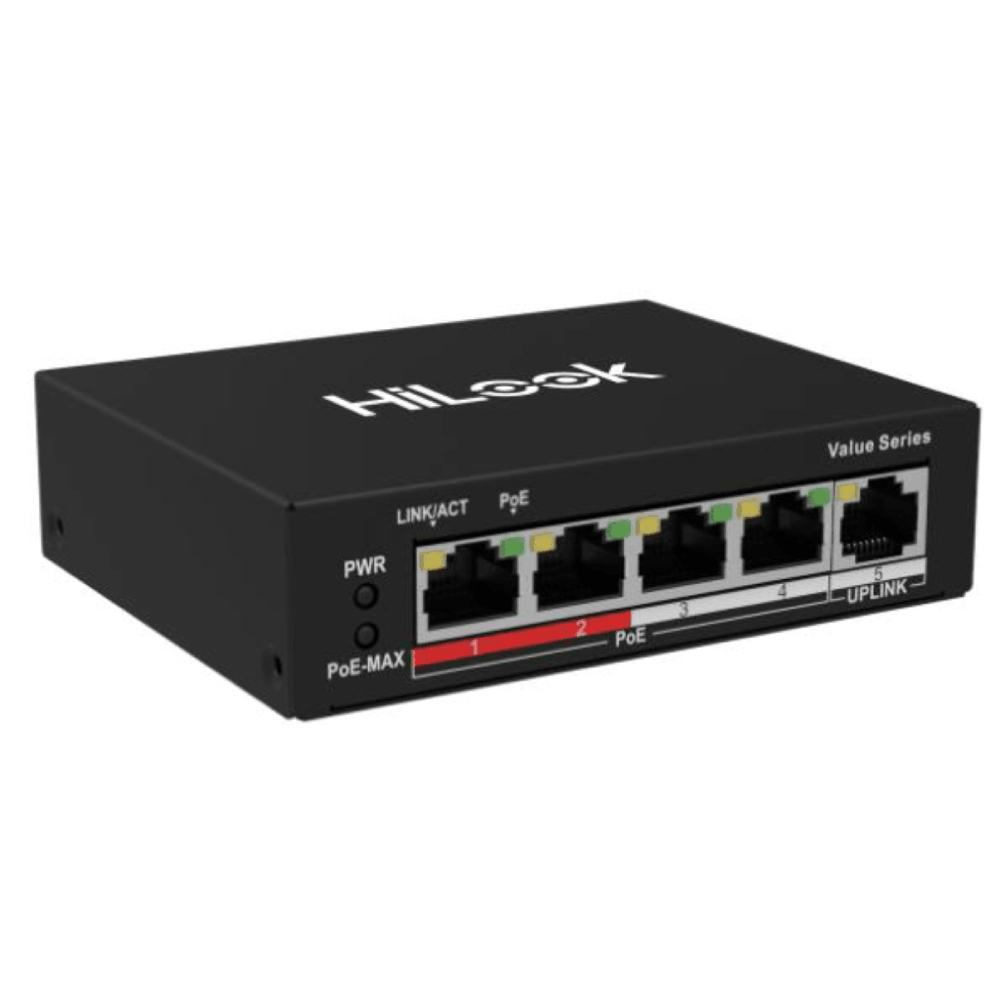

The HiLook NS-0105P-35(B) is a 4-port unmanaged network switch designed for small and medium-sized networks. It is compact in size and easy to install, making it an ideal choice for home or office use.
This switch supports 10/100Mbps auto-negotiation on all ports, meaning it can automatically detect the speed and duplex mode of connected devices and adjust accordingly. It also supports Power over Ethernet (PoE) on all four ports, delivering power and data over a single Ethernet cable to PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones.
The NS-0105P-35(B) has a maximum PoE power output of 35W, meaning it can provide up to 15.4W per port to connected devices. It also has a compact metal housing for durability and heat dissipation.
Overall, the HiLook NS-0105P-35(B) is a cost-effective and reliable network switch for small-scale PoE-enabled network installations.
HERE IS A VIDEO OF THE PRODUCT UNBOXED :
FEAUTURES :
Unmanaged switch with 4 x 100 Mbps PoE ports and 1 x 100 Mbps uplink port
All ports support 6 kV lighting protection
35 W PoE power budget
Maximum transmission distance is 250 meters
MAC address auto learning and auto aging
TECHNICAL SPECIFICATIONS :
General

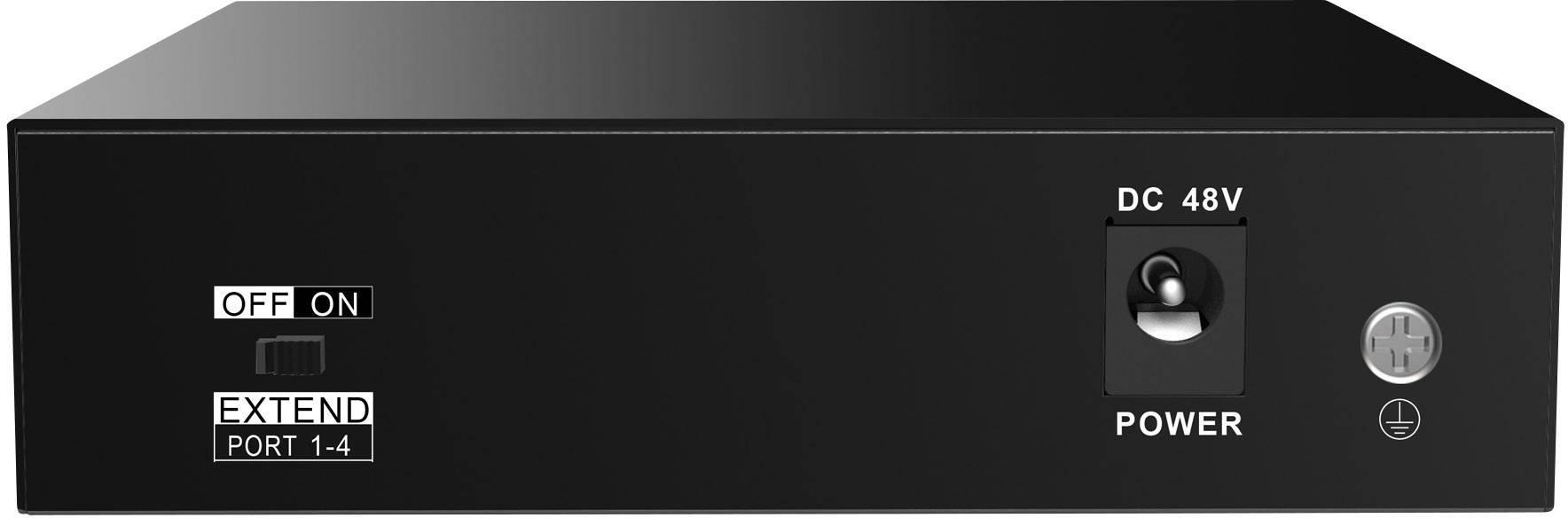

Shell : Metal material, fan-free design Operating Temperature : -10 °C to 55 °C (14 °F to 131 °F) Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F) Power Supply : 48 VDC, 0.8 A Storage Humidity : 5% to 95% (no condensation) Net Weight : 0.2 kg (0.4 lb) Gross Weight : 0.48 kg (1.06 lb) Dimension (L × H × D) : 105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”) Operating Humidity : 5% to 95% (no condensation) Power Consumption In Idle : 3 W
Network Parameters
Port Number : 4 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port Port Type : RJ45 port, full duplex, MDI/MDI-X adaptive Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x Forwarding Mode : Store-and-forward switching Working Mode : Standard mode (default); Extend mode MAC Address Table : 1 K Switching Capacity : 1 Gbps Packet Forwarding Rate : 0.744 Mpps Internal Cache : 448 Kbits High Priority Ports : Ports 1 to 2 Ports For Long-Distance Transmission : Ports 1 to 4
PoE Power Supply
PoE Standard :IEEE 802.3af, IEEE 802.3at PoE Power Pin : Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply PoE Port : Ports 1 to 4 Max. Port Power : 30 W PoE Power Budget : 35 W Max. Power Consumption : 38 W
