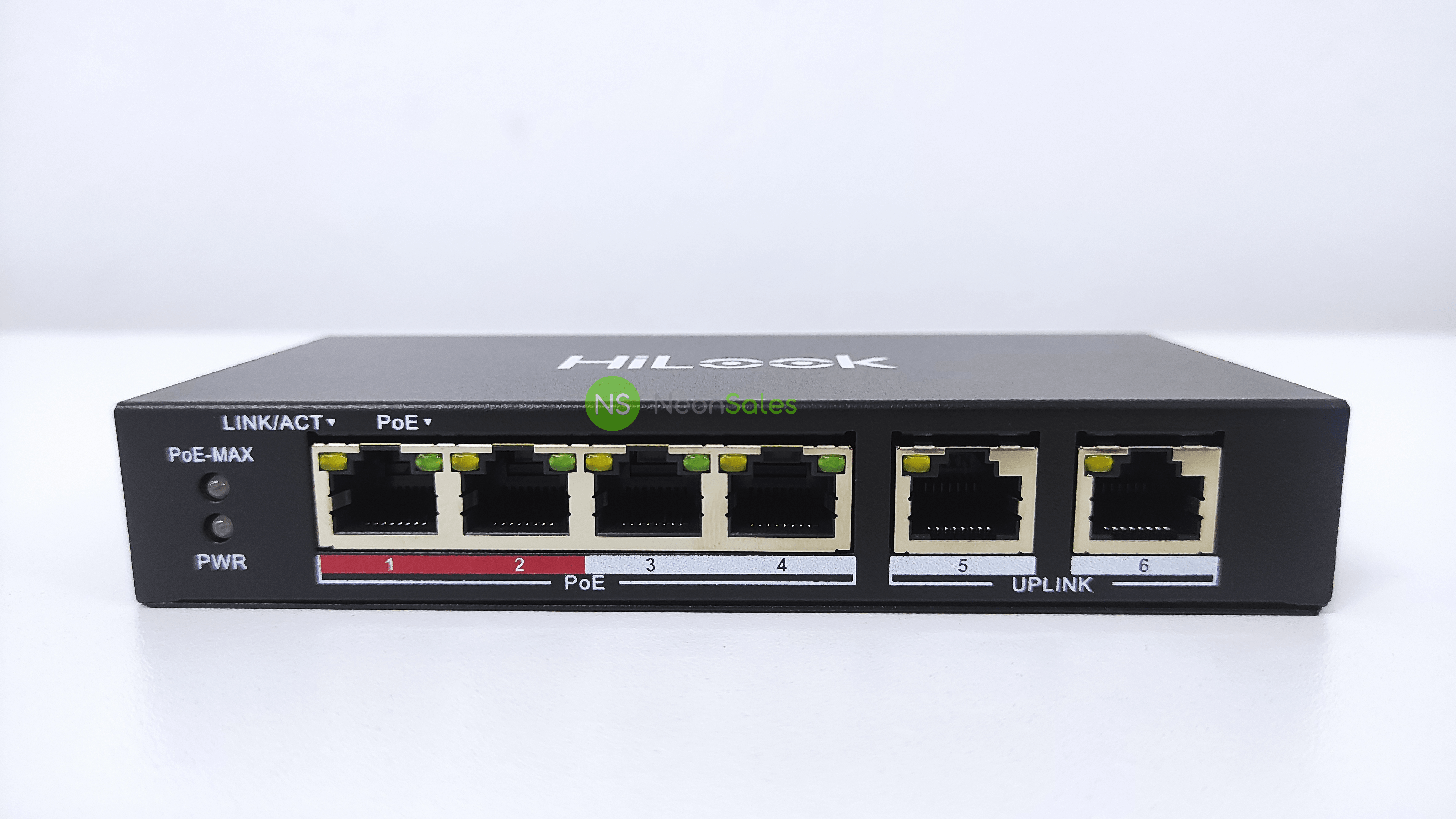

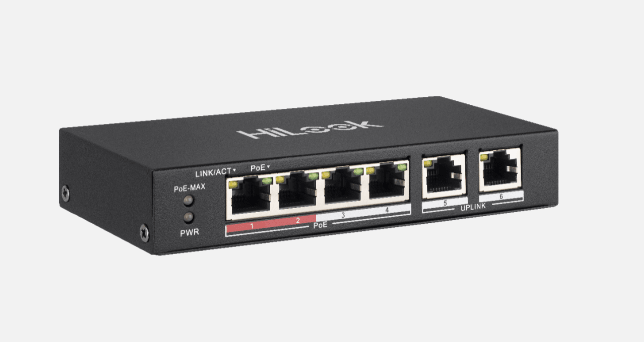

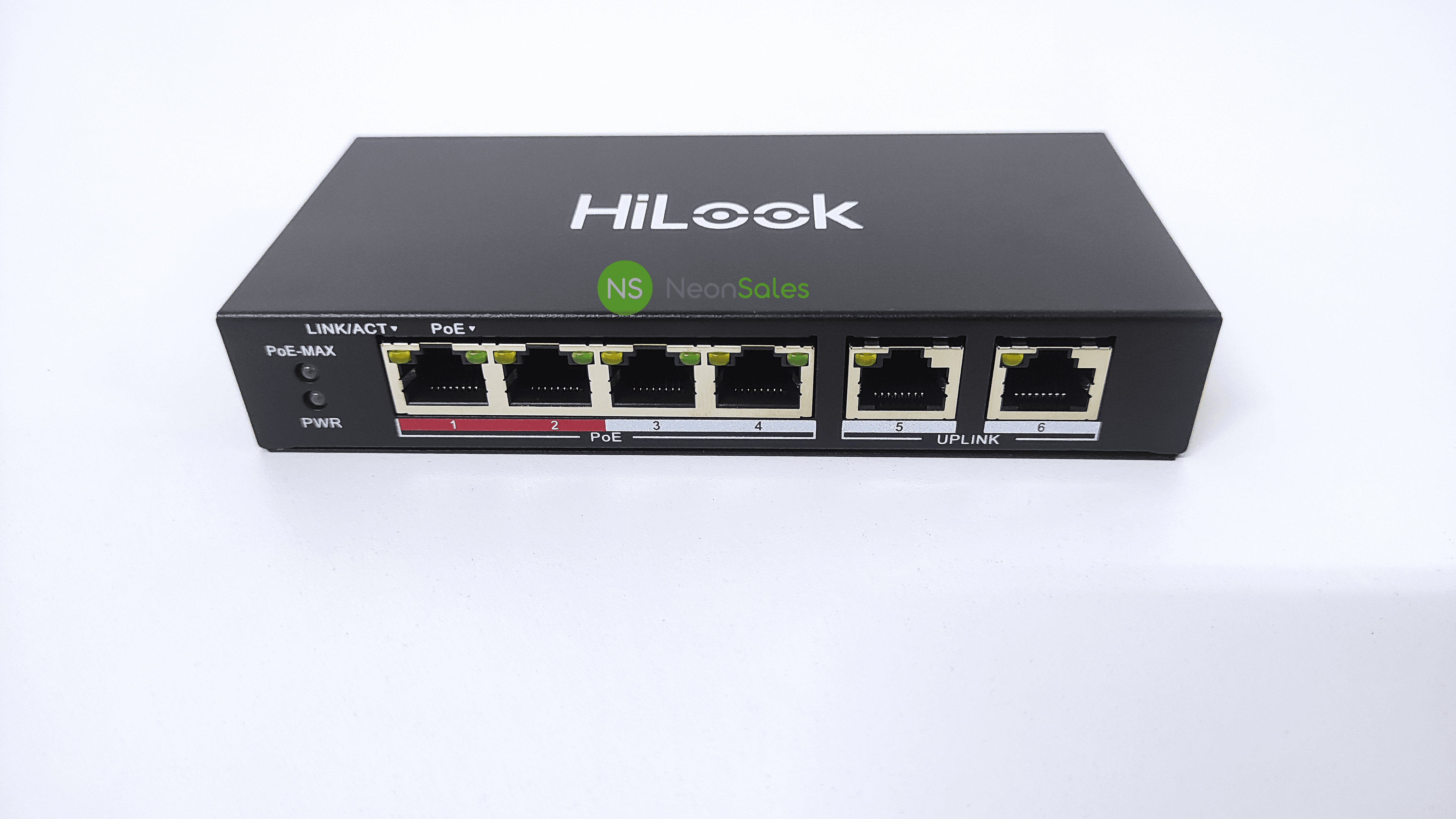

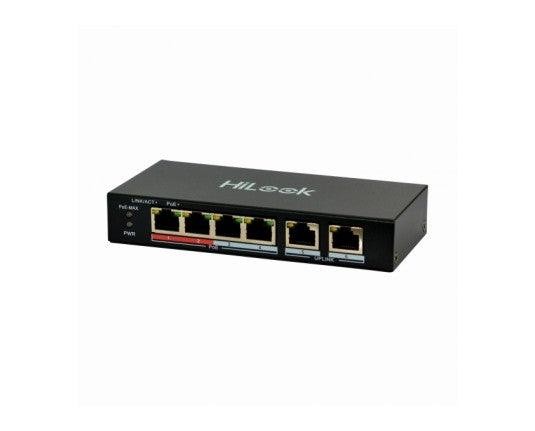

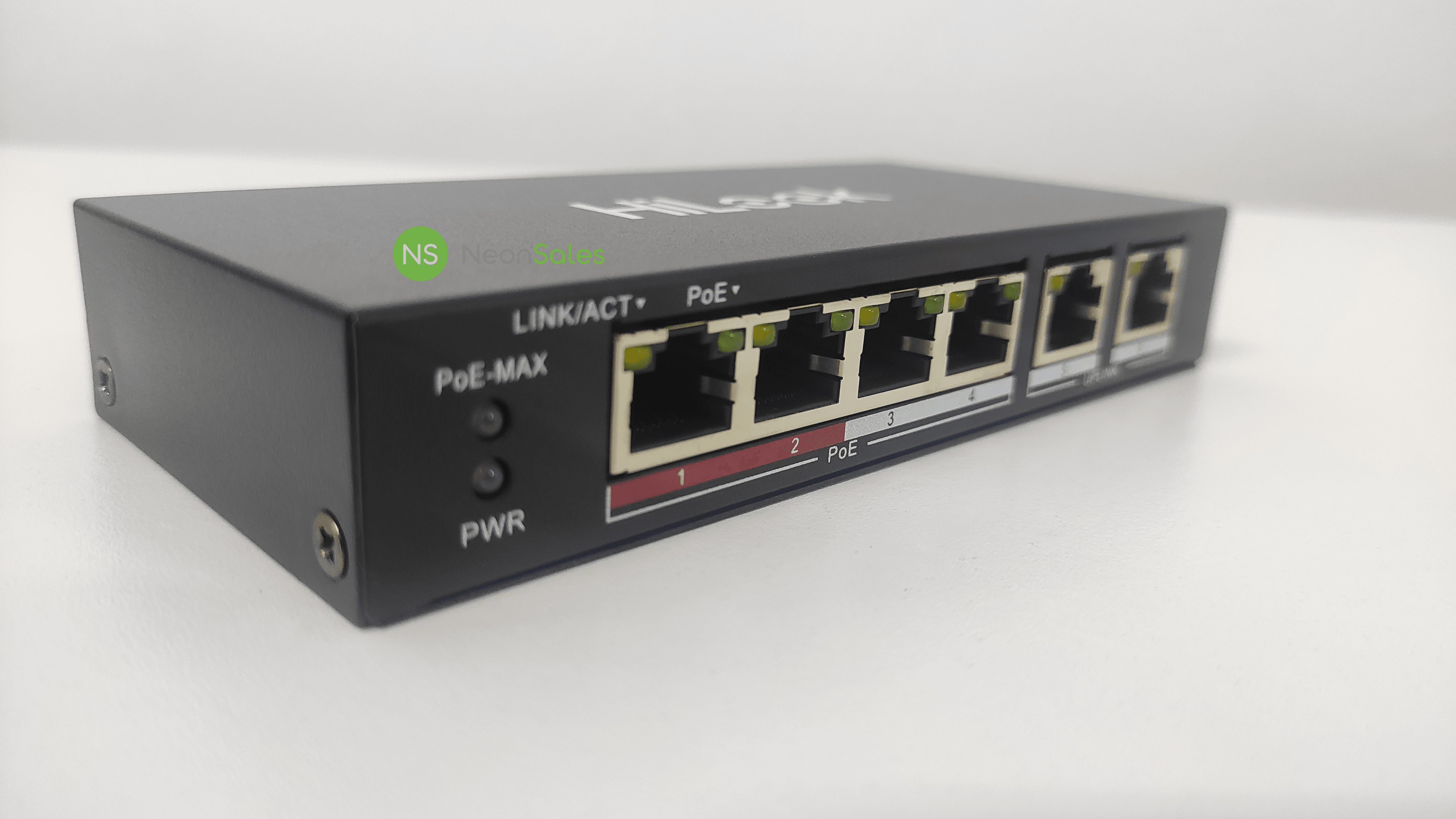

The HiLook NS-0106P-35 is a 4-port unmanaged network switch with Power over Ethernet (PoE) support. It is designed for small-scale network installations and is suitable for both home and office use.

This switch supports 10/100Mbps auto-negotiation on all ports, meaning it can automatically detect the speed and duplex mode of connected devices and adjust accordingly. It also supports PoE on all four ports, delivering power and data over a single Ethernet cable to PoE-enabled devices such as IP cameras, wireless access points, and VoIP phones.

The NS-0106P-35 has a maximum PoE power output of 35W, meaning it can provide up to 15.4W per port to connected devices. It also features a compact metal housing for durability and heat dissipation.

Overall, the HiLook NS-0106P-35 is a cost-effective and reliable network switch for small-scale PoE-enabled network installations. Its compact size and easy-to-use features make it a great choice for users who need to connect a few PoE devices to their network.

FEATURES :

• 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
• IEEE 802.3at/af standard for PoE ports (Max. 35 W PoE output).
• IEEE 802.3, IEEE 802.3u, and IEEE 802.3x standard.
• 6 KV surge protection for PoE ports.
• Up to 250 m long-range transmission.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design


TECHNICAL SPECIFICATIONS :

PoE Power Supply

PoE Standard :Ports 1 to 4: IEEE 802.3af, IEEE 802.3at
PoE Power Pin : Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power
supply simultaneously.
PoE Port : Ports 1 to 4
Max. Port Power : Ports 1 to 4: 30 W
PoE Power Budget : 35 W

Network Parameters

Port Number : 4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
Port Type : RJ45 port, full duplex, MDI/MDI-X adaptive
Standard : IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode : Store-and-forward switching
High Priority Ports : Ports 1 and 2
Ports For Long-Distance Transmission : Ports 1 to 4
MAC Address Table : 4 K
Switching Capacity : 1.6 Gbps
Packet Forwarding Rate : 0.8928 Mpps
Internal Cache : 768 Kbits
Dialing Function : Long Range
Ports 1 to 4 : up to 250m.

General

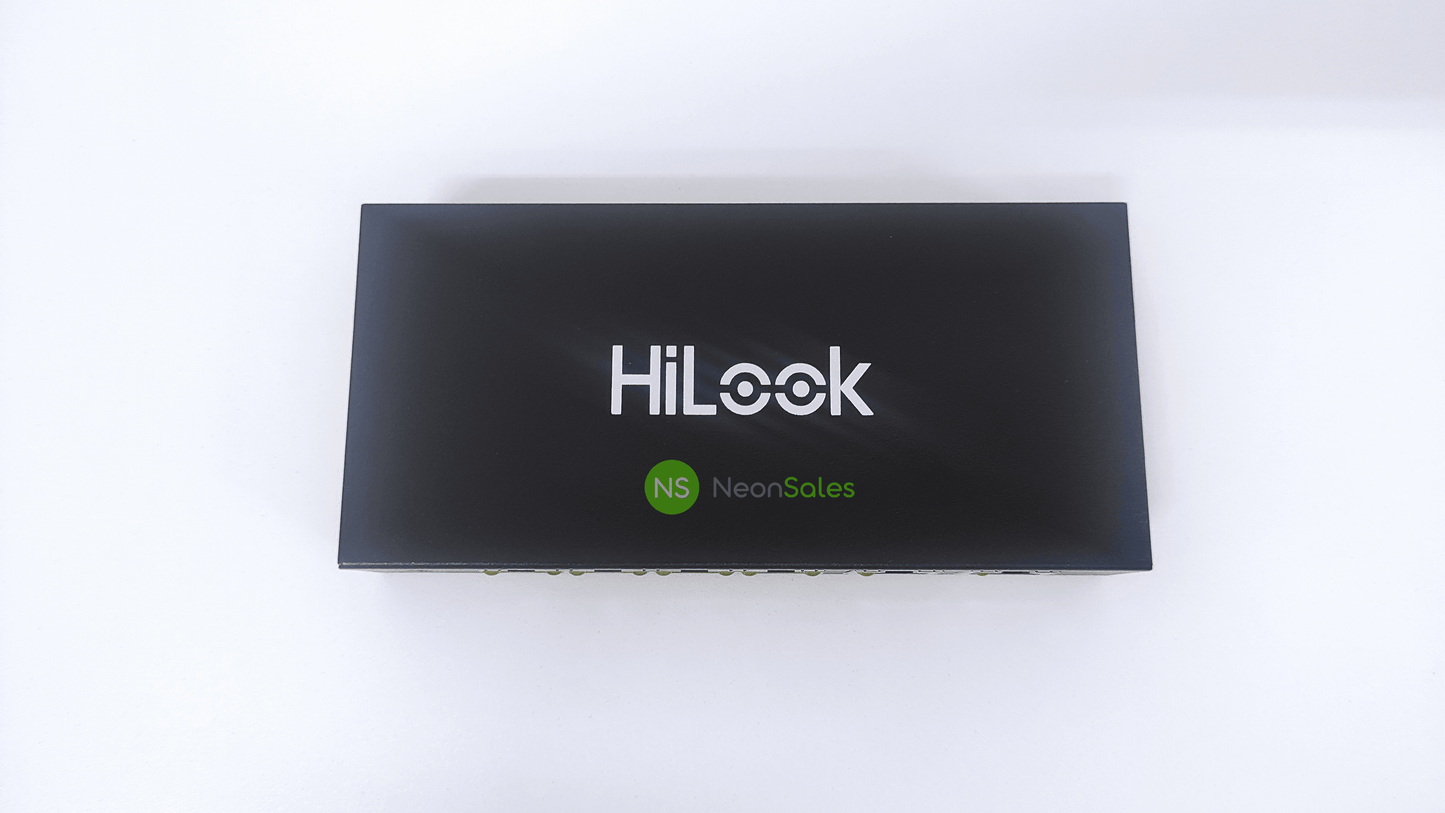

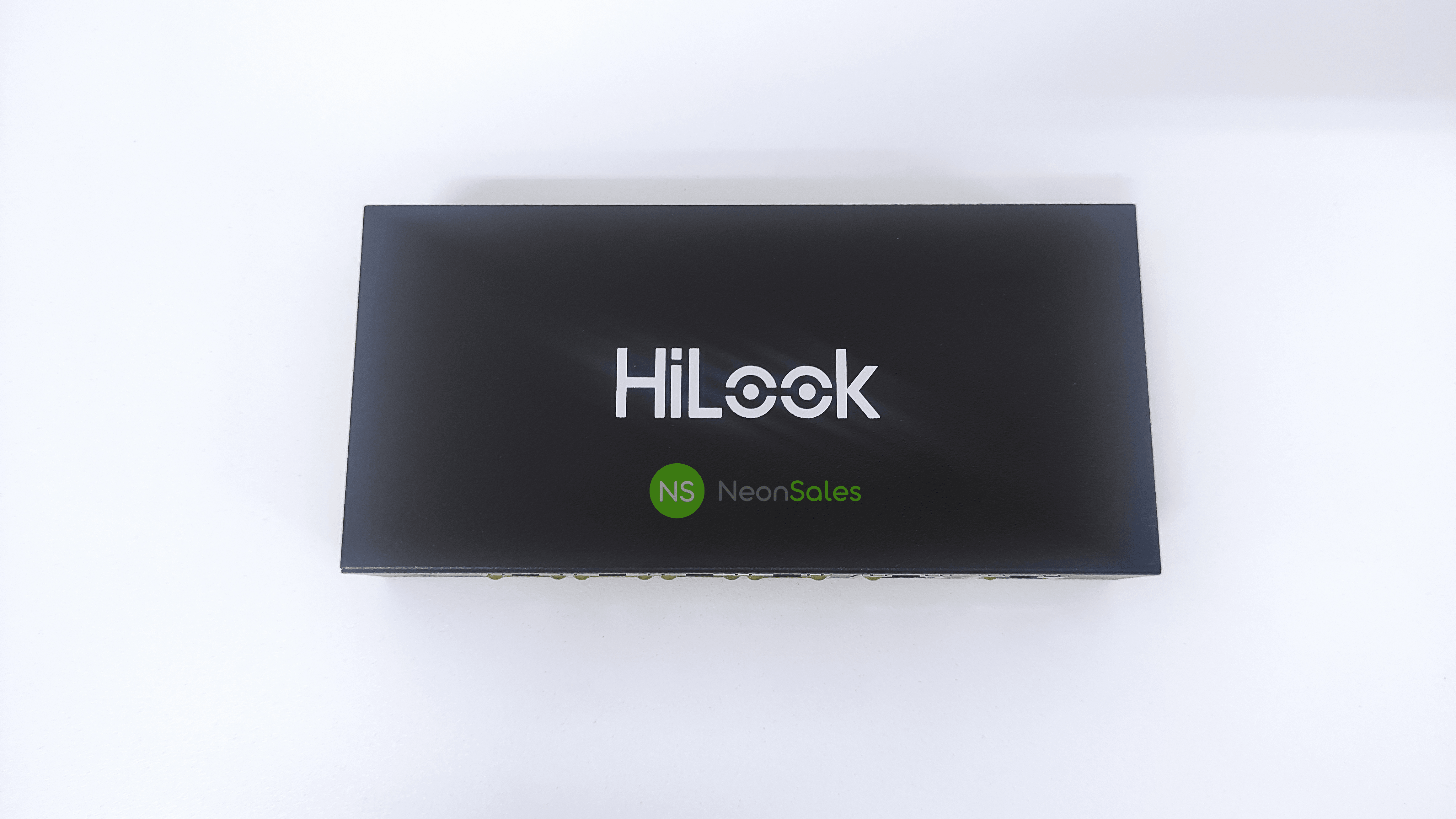

Shell : Metal material, fan-free design
Gross Weight : 0.52
Net Weight ; 0.265
Dimension (L × H × D) : 145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)
Operating Temperature : -10°C to 40°C (14°F to 104°F)
Storage Temperature : -40°C to 85°C (-40°F to 185°F)
Operating Humidity : 5% to 95% (no condensation)
Storage Humidity : 5% to 95% (no condensation)

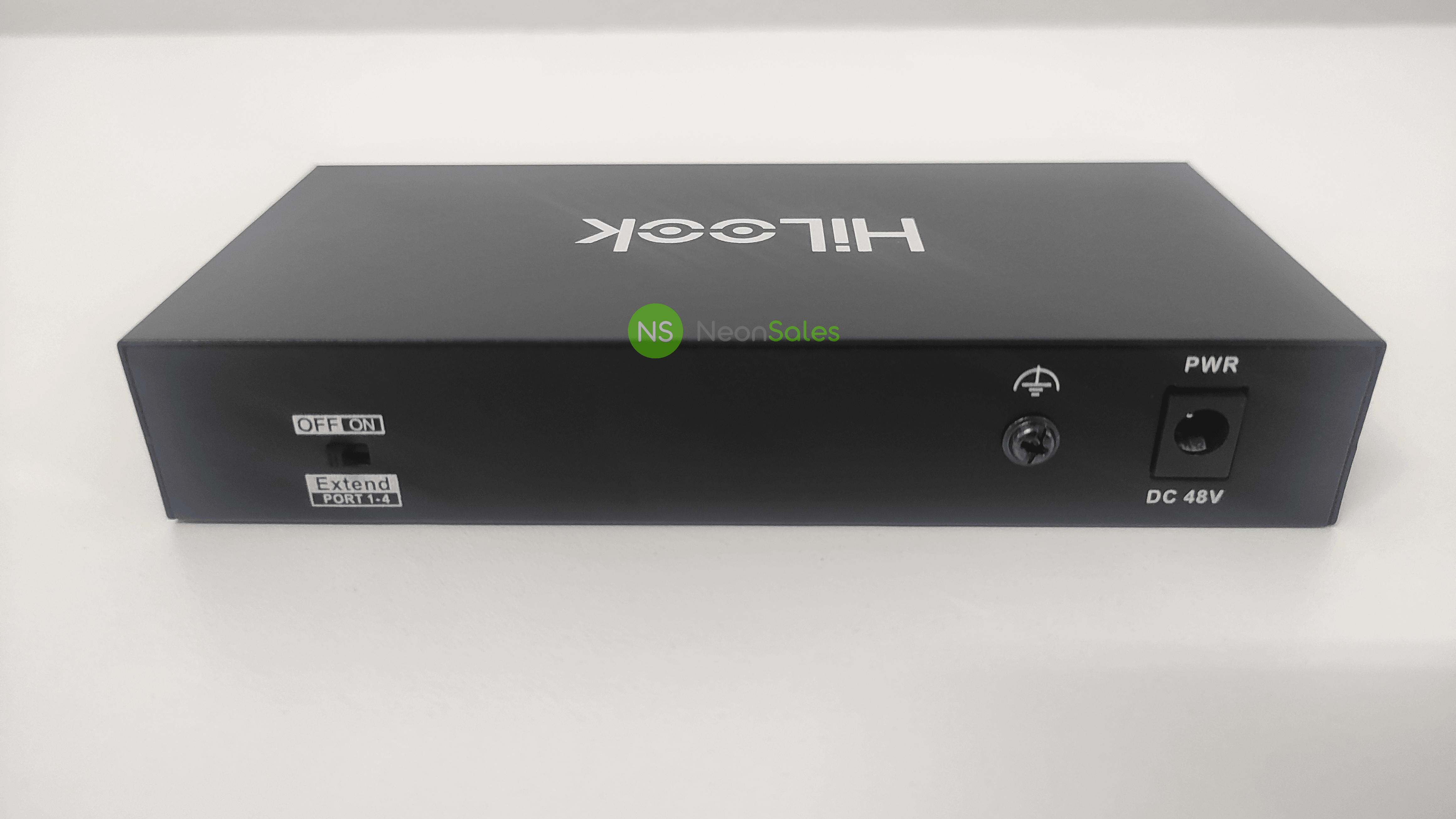

Power Supply : 48 VDC, 0.8 A
Power Consumption In Idle : < 5 W
Power Source : 38 W
Max. Power Consumption : 38 W

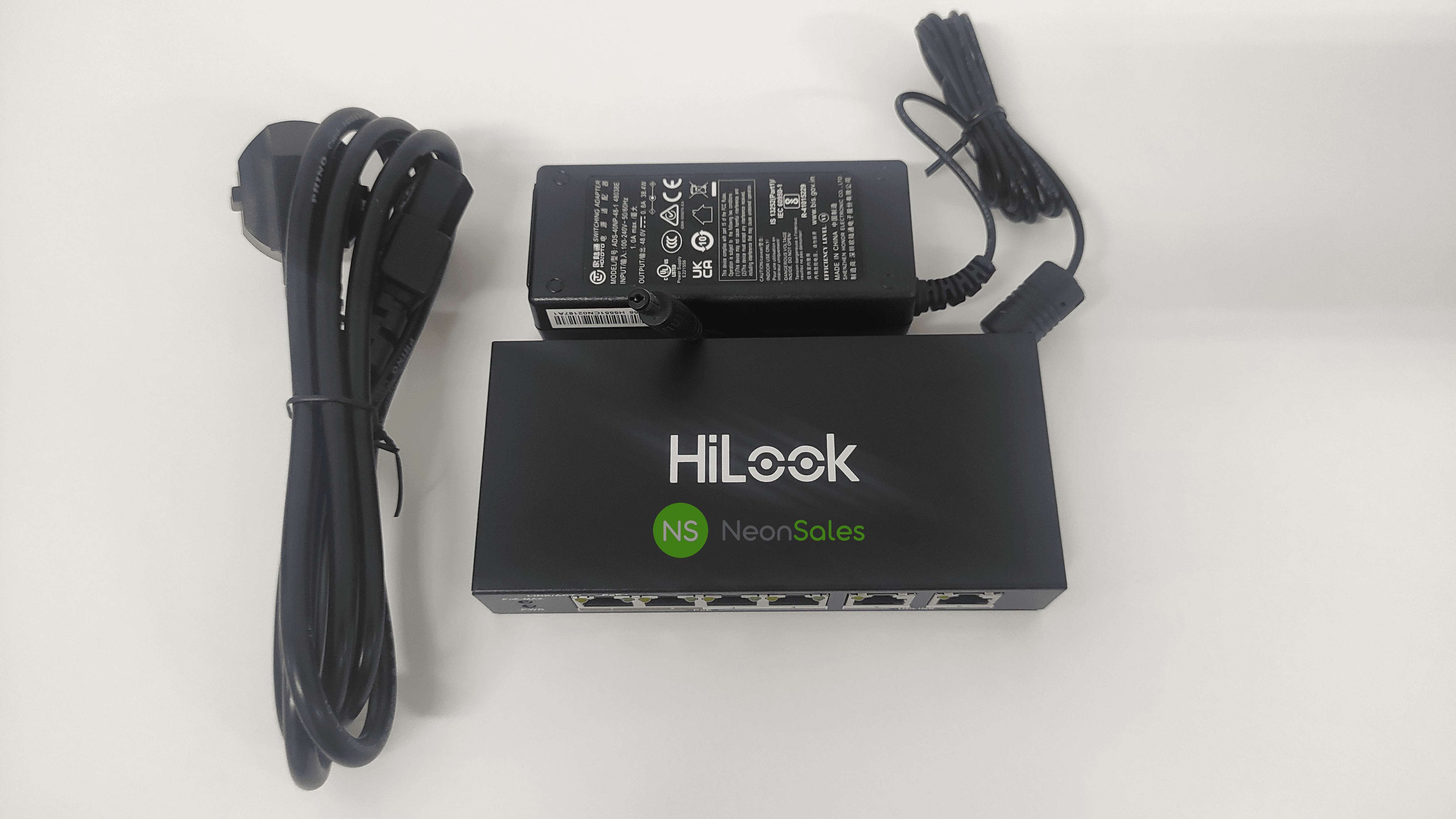

What's in the box :

1 X HiLook 4-Port NS-0106P-35 PoE Switch
1 X Power Adapter
1 X Quick Start Up Guide
