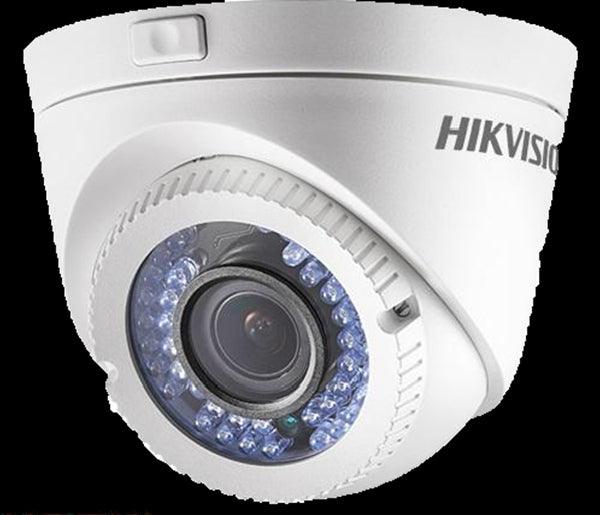

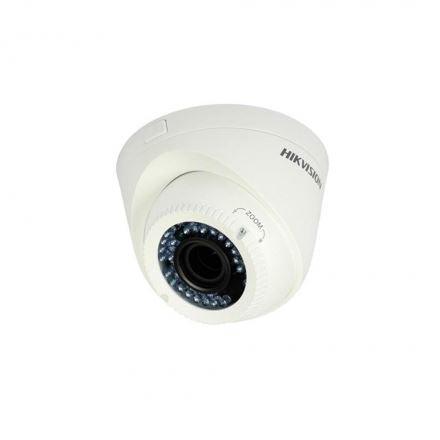

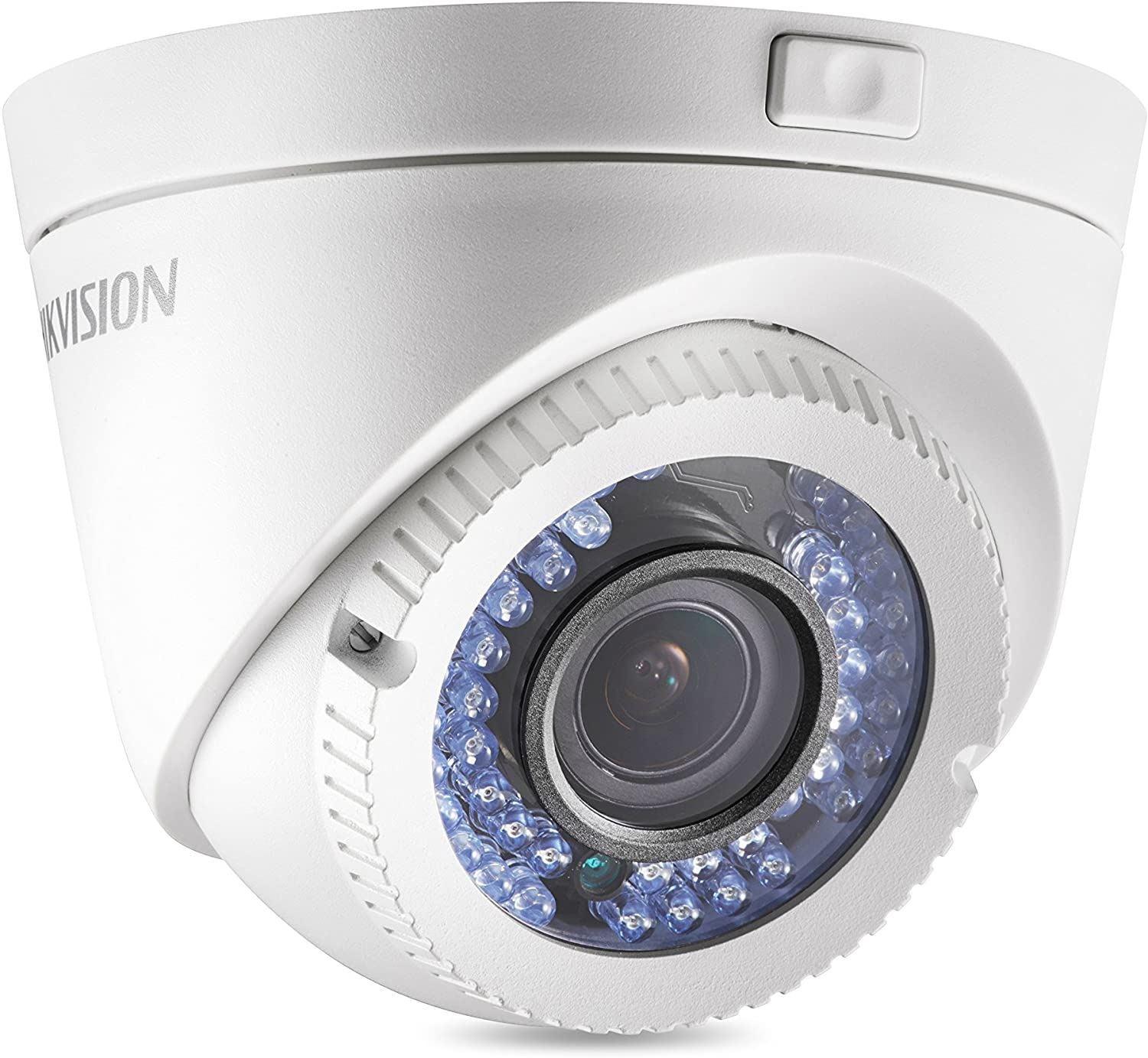

HIKVISON DOME DS-2CE56DOT-VFIR3F 2.8-12MM
OVERALL FEATURES:
- 2 MP varifocal PoC turret camera
-
2.8 mm to 12 mm varifocal lens
-
Up to 40 m IR distance for bright night imaging
-
Water and dust resistant (IP67)
-
Transmits both HD video and power over the same coaxial cable
SPECIFICATIONS:
- Camera
-
Image Sensor2 MP progressive scan CMOS
-
Max. Resolution1920 (H) × 1080 (V)
-
Min. Illumination0.01 Lux@(F1.4, AGC ON), 0 Lux with IR
-
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
-
Day & Night IR Cut Filter
-
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
-
Signal System PAL/NTSC
- Lens
-
Lens Type Varifocal lens, manual adjustment, 2.8 mm to 12 mm
-
Focal Length & FOV Horizontal FOV 105.2° to 32.8°
-
Lens MountΦ14
- Illuminator
-
Supplement Light Type IR
-
Supplement Light Range Up to 40 m
- Image
-
Image Settings AGC; Brightness; Sharpness; Mirror
-
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
-
Day/Night Mode Auto/Color/BW (Black and White)
-
Image Enhancement BLC;DWDR
-
Noise Reduction2D DNR
- Interface
-
Video Output1 HD analog output
- General
-
Power12 VDC ±15%/PoC.at, max. 6.5 W
-
Material Main body: Metal, Enclosure: Plastic
-
Dimension - Ø 130.5 mm × 102.4 mm (Ø 5.14" × 4.03")
-
Weight - Approx. 710 g (1.57 lb.)
-
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
-
Language - English
