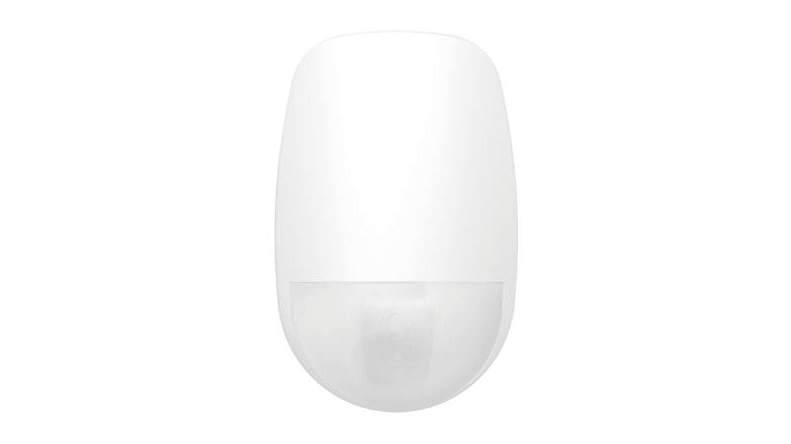

HIKVISION WIRELESS PIR CURTAIN DETECTOR

• Long range with narrow angle detection
• Fully remote configurable through APP
• Multiple enrollment method and easy installation design
• Easy replaceable battery with PCB protected
• Frequency hopping against jamming for reliable transmission

SPECS:

• Detection Performance
• Detection MethodPassive Infrared
• Detection Range15m
• Detection Angle6.3°
• Detection Zones18
• Detectable Speed0.3～2m/s
• Pet ImmunityNone
• White Light Filter6500lux
• Digital Temperature CompensationSupport
• Creep Zone ProtectionSupport

• Feature
• Digital ProcessingSupport
• Sealed OpticsSupport
• Tamper ProtectionFront;Rear
• Environment Temperature IndicatorSupport
• Signal Strength IndicatorSupport

• Interface
• Power SwitchPower Up Enrolling
• LED Indicator Blue (Alarm)

• Transmission
• Transmission Technology Tri-X Wireless
• Transmission Method Two-Way RF Wireless
• Transmission Frequency 868MHz
• Transmission Security AES-128 Encryption
• Transmission Range(Free Space)1.6Km
• Frequency Hopping Support
• Enrolling Method Power up;Remote ID;QR Code

• Electrical Characteristics
• Standard Battery Life

  Up to 5 years (standby time)

• Power Supply Battery Powered
• Battery Type CR123A × 1
• Typical Voltage 3V

• General
• Operation Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
• Operation Humidity 10% to 90%
• Dimension(WxHxD)65.5mm × 103 mm × 48.5mm
• Weight 128g
• Mounting Height2.4 to 3.6m
• Mounting Method Wall
• Application Scenario Indoor
• Bracket Optional Wall & Ceiling Accessory
