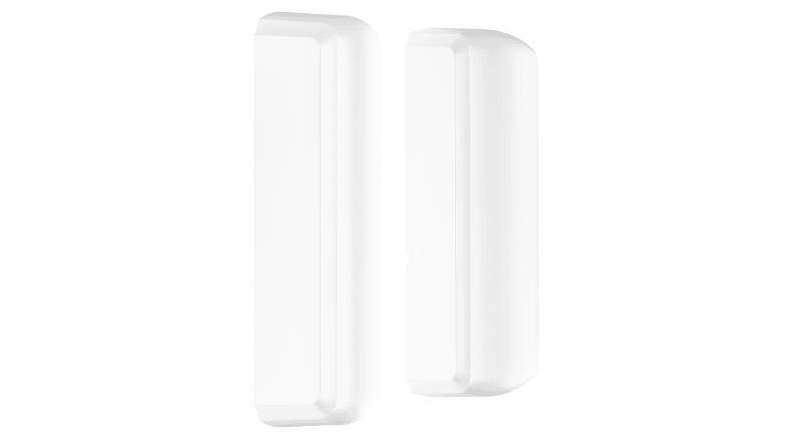

HIKVISION WIRELESS MAGNETIC CONTACT
DS-PDMCX-E-WE
Experience the ultimate in security with HIKVISION's Wireless External Magnetic Contact. Featuring IP66 protection, UV stability, remote configuration through our convenient APP, and multiple enrollment methods, this contact is easily installed for optimal protection against any type of jamming. Trust in our frequency hopping technology for reliable transmission and peace of mind.
FEATURES:
- IP66 protective level, UV stable
-
Fully remote configurable through APP
-
Multiple enrollment methods and easy installation design
-
Frequency hopping against jamming for reliable transmission
SPECS:
- Detection Performance
-
Detection Method Opening Contact
-
Detection Gap 76 mm Max
- Feature
-
Digital Processing Support
-
Tamper Protection Front;Rear
-
Environment Temperature Indicator Support
-
Signal Strength Indicator Support
- Interface
-
Alarm Input Normally Closed;Normally Open;Impulse Count
-
Power Switch Power up enrolling
-
LED Indicator Blue (alarm)
- Transmission
-
Transmission Technology Tri-X Wireless
-
Transmission Method Two-Way RF Wireless
-
Transmission Frequency 868MHz
-
Transmission Security AES-128 Encryption
-
Transmission Range(Free Space)1.6Km
-
Frequency Hopping Support
-
Enrolling Method Power up;Remote ID;QR Code
- Electrical Characteristics
-
Standard Battery Life Up to 5 years (standby time)
-
Power Supply Battery powered
-
Battery Type CR123A x 1
-
Typical Voltage 3V
