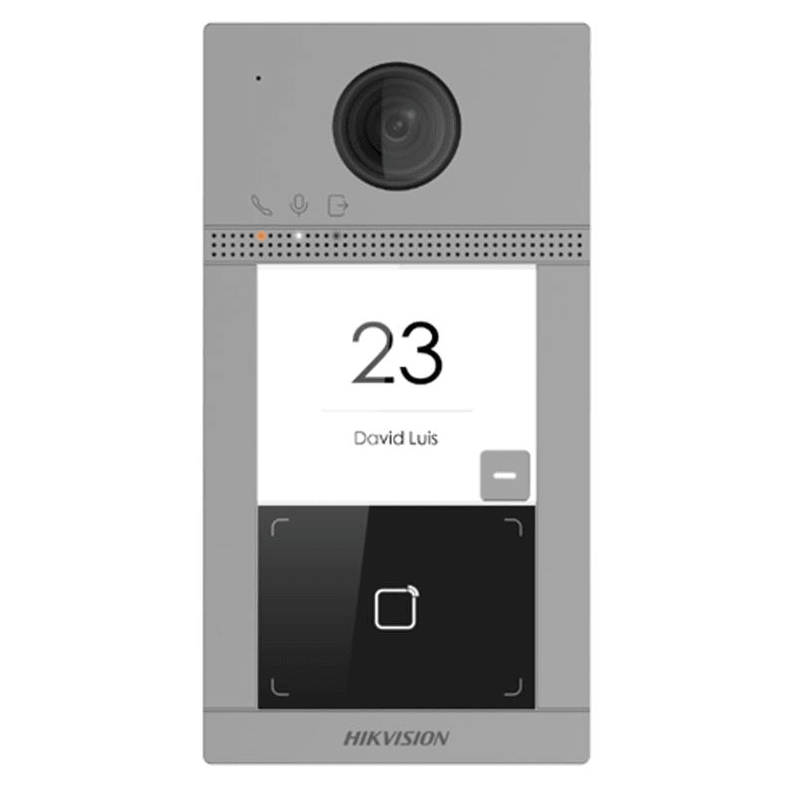

HIKVISION VIDEO INTERCOM POE DOOR STATION
HIKVISION VIDEO INTERCOM POE DOOR STATION
Enhance your home security with the KV8 series IP villa door station! Featuring a sleek metal design and customizable calling buttons, this innovative device allows you to easily view, chat with, and grant access to visitors using your mobile phone from anywhere.
As an added bonus, the villa door station runs on standard PoE, eliminating the need for extra wiring and making installation and deployment a breeze. Its high level of protection makes it the perfect fit for villas and detached houses. Trust the KV8 series to provide ultimate security and convenience.
FEATURES:
- 2 MP camera with IR supplement
- One nametag button calling design for easier calls
- Built-in card reader module
- Standard PoE power supply
- IK08 & IP65 higher protection level with aluminum alloy material
- Convenient Hik-Connect APP mobile control
- System Parameters
- Operation SystemLinux
- ROM32 MB
- RAM256 MB
- ProcessorEmbeded high performance processor
- Video Parameters
- Lens1
-
Resolution
Main stream:1920 × 1080p and 1280 × 720p
Sub stream: 640 × 480p
- FOVHorizontal: 124° Vertical: 75°
- Wide Dynamic Range (WDR)Digital WDR/76.9 dB
- Supplement LightIR light, up to 3 m
- Video Compression StandardH.264
- Audio Parameters
- Audio Input1 built-in omnidirectional microphone
- Audio Compression StandardG.711 U, G.711 A
- Audio Output1 built-in loudspeaker
- Audio Compression Bitrate64 Kbps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
- Capacity
- User Capacity2000
- Card Capacity10000
- Linked Indoor Station Capacity1 (main indoor station)
- Sub Door Station Capacity16
- Network Parameters
- Network ProtocolTCP/IP, RTSP
- Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
- Received Frequency2.4 to 2.4835 GHz
- Transmitted Frequency2.4 to 2.4835 GHz
- Bandwidth20/40 MHz
-
Frequency Power
802.11b:15 dBm +/- 1.5 dBm
802.11g:15 dBm +/- 1.5 dBm
802.11n(ht20):14 dBm +/- 1.5 dBm
802.11n(ht40):12 dBm +/- 1.5 dBm
- Authentication
- Card Reading Frequency13.56 MHz
- Device Interfaces
- Alarm Input4
- Network Interface 1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER1
- Exit Button2
- RS-4851
- TF Card Reserved
- Lock Control 2 relays, Max. 30 VDC 2 A
- Door Contact Input2
- General
- Button1 physical button
- Installation Surface mounting
- Indicator 3
-
Weight
Net weight: 0.370 kg
Gross weight: 0.637 kg
- Protective Level IP65, IK08
- Working Temperature-40 °C to 53 °C(-40 °F to 127.4 °F)
- Working Humidity 10% to 95% (no-condensing)
- Dimension (W × H × D)174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1")
- Application EnvironmentOutdoor
- Power Consumption< 10 W
- Language English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
HIKVISION VIDEO INTERCOM POE DOOR STATION
Enhance your home security with the KV8 series IP villa door station! Featuring a sleek metal design and customizable calling buttons, this innovative device allows you to easily view, chat with, and grant access to visitors using your mobile phone from anywhere.
As an added bonus, the villa door station runs on standard PoE, eliminating the need for extra wiring and making installation and deployment a breeze. Its high level of protection makes it the perfect fit for villas and detached houses. Trust the KV8 series to provide ultimate security and convenience.
FEATURES:
- 2 MP camera with IR supplement
- One nametag button calling design for easier calls
- Built-in card reader module
- Standard PoE power supply
- IK08 & IP65 higher protection level with aluminum alloy material
- Convenient Hik-Connect APP mobile control
- System Parameters
- Operation SystemLinux
- ROM32 MB
- RAM256 MB
- ProcessorEmbeded high performance processor
- Video Parameters
- Lens1
-
Resolution
Main stream:1920 × 1080p and 1280 × 720p
Sub stream: 640 × 480p
- FOVHorizontal: 124° Vertical: 75°
- Wide Dynamic Range (WDR)Digital WDR/76.9 dB
- Supplement LightIR light, up to 3 m
- Video Compression StandardH.264
- Audio Parameters
- Audio Input1 built-in omnidirectional microphone
- Audio Compression StandardG.711 U, G.711 A
- Audio Output1 built-in loudspeaker
- Audio Compression Bitrate64 Kbps
- Audio QualityNoise suppression and echo cancellation
- Volume AdjustmentAdjustable
- Capacity
- User Capacity2000
- Card Capacity10000
- Linked Indoor Station Capacity1 (main indoor station)
- Sub Door Station Capacity16
- Network Parameters
- Network ProtocolTCP/IP, RTSP
- Wi-FiIEEE802.11b, IEEE802.11g, IEEE802.11n
- Received Frequency2.4 to 2.4835 GHz
- Transmitted Frequency2.4 to 2.4835 GHz
- Bandwidth20/40 MHz
-
Frequency Power
802.11b:15 dBm +/- 1.5 dBm
802.11g:15 dBm +/- 1.5 dBm
802.11n(ht20):14 dBm +/- 1.5 dBm
802.11n(ht40):12 dBm +/- 1.5 dBm
- Authentication
- Card Reading Frequency13.56 MHz
- Device Interfaces
- Alarm Input4
- Network Interface 1 RJ-45, 10/100 Mbps self-adaptive
- TAMPER1
- Exit Button2
- RS-4851
- TF Card Reserved
- Lock Control 2 relays, Max. 30 VDC 2 A
- Door Contact Input2
- General
- Button1 physical button
- Installation Surface mounting
- Indicator 3
-
Weight
Net weight: 0.370 kg
Gross weight: 0.637 kg
- Protective Level IP65, IK08
- Working Temperature-40 °C to 53 °C(-40 °F to 127.4 °F)
- Working Humidity 10% to 95% (no-condensing)
- Dimension (W × H × D)174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1")
- Application EnvironmentOutdoor
- Power Consumption< 10 W
- Language English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak
