Hikvision DS-KD8003-IME1 – KD8 Series Pro Modular Door Station
Overview

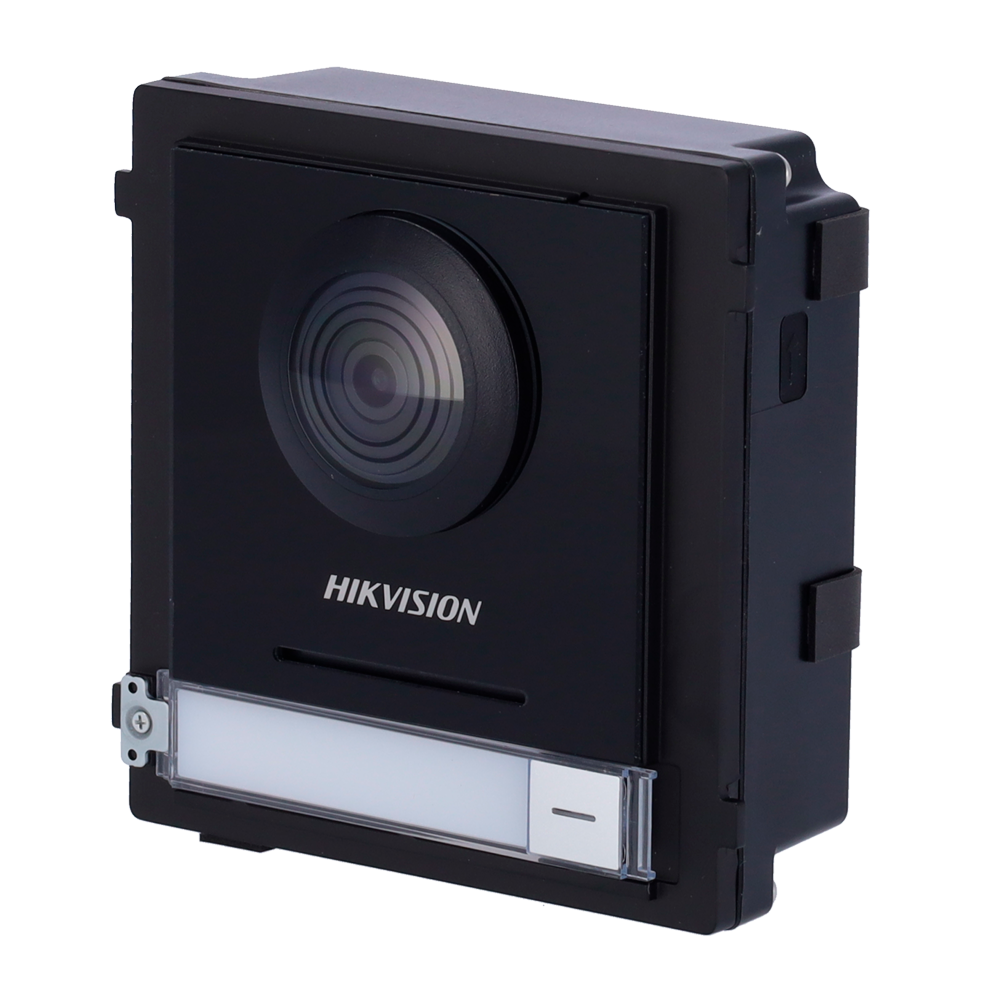

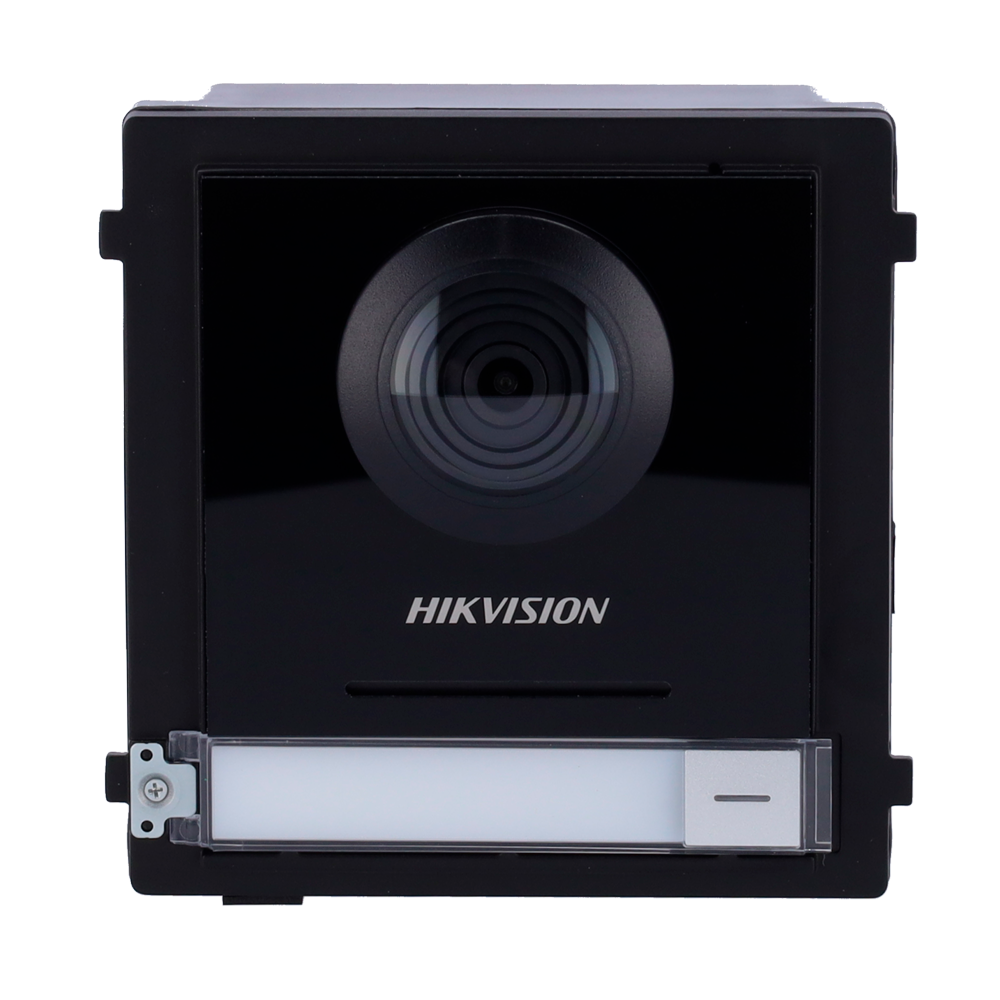

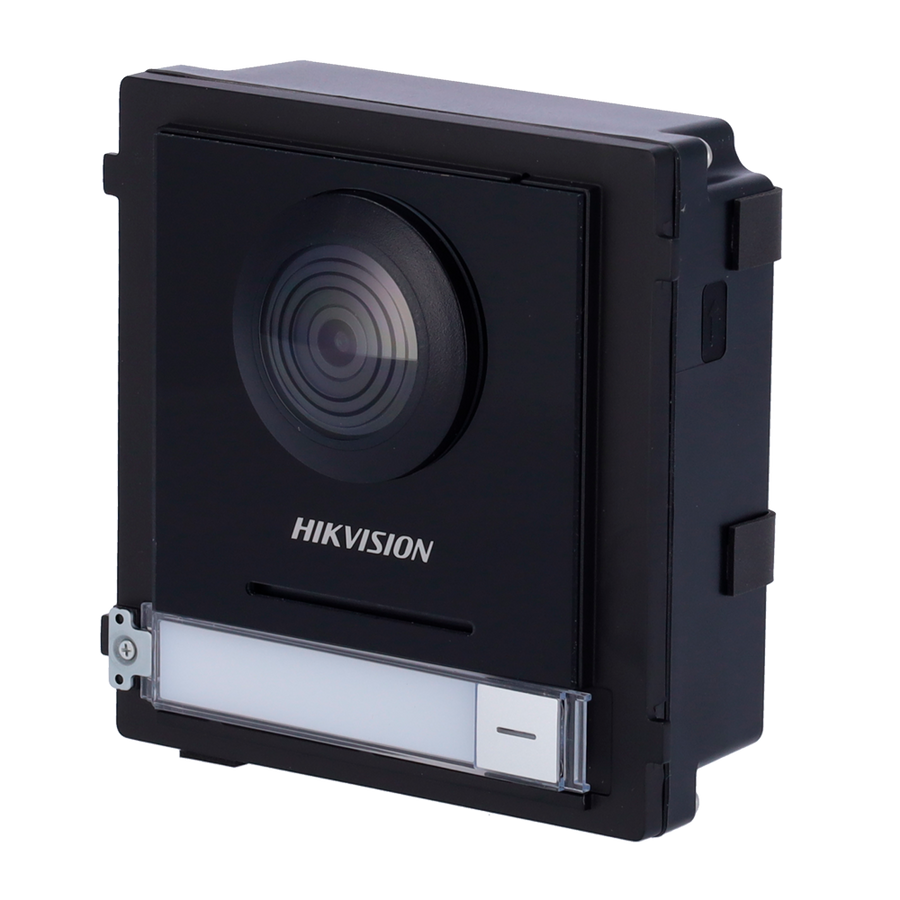

The DS-KD8003-IME1 is a high-performance modular door station main unit from the KD8 Series Pro range. Featuring a 2 MP fisheye camera with IR illumination, one-call physical button, dual-lock relay outputs and PoE power, it is designed for outdoor mounting with IP65 protection and robust access-control integration.
Key Features
-
2 MP fisheye camera with wide field of view – horizontal approx. 146°, vertical approx. 82°.
-
IR supplement lighting for low-illumination environments and night-time visibility.
-
One-call physical button for easy entry calls.
-
Two lock control relays for dual-lock or dual-door installations.
-
Four alarm/door contact inputs and tamper detection input for enhanced security.
-
12 V DC or PoE (IEEE 802.3af) for flexible installation and power options.
-
IP65 rated housing built for outdoor South African conditions.
-
Web-based configuration and network compatibility (ONVIF, TCP/IP, RTSP) for system integration.
Technical Specifications
-
Camera resolution: 2 MP
-
Field of view: H approx. 146°, V approx. 82°
-
Video compression: H.264, H.265, MJPEG
-
Audio: Built-in omnidirectional microphone & loudspeaker (≥85 dB at 20 cm) with noise suppression & echo cancellation
-

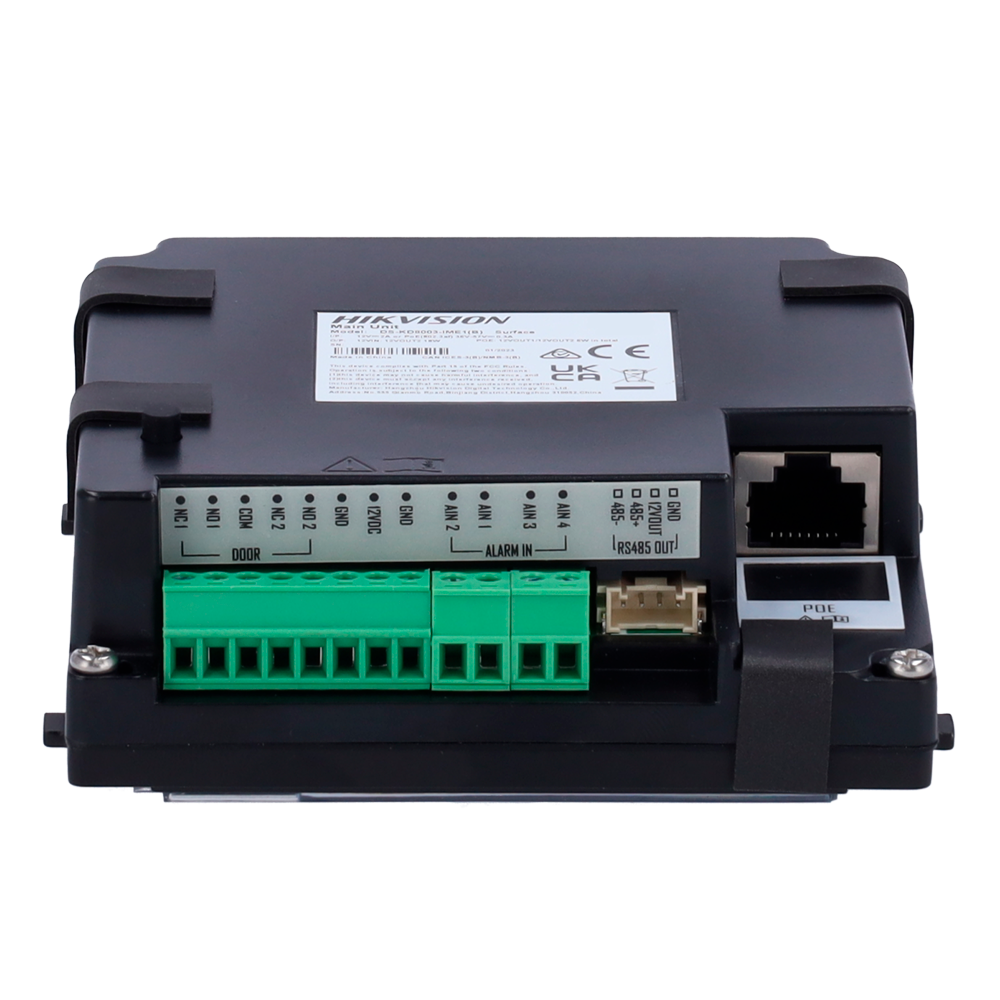

Alarm/lock I/O: 4-ch alarm input, tamper input; 2 relay lock control outputs (30 VDC, 2 A)
-
Network interface: 1 × RJ-45 10/100 Mbps
-
Power supply: 12 V DC / PoE (IEEE 802.3af)
-
Operating temperature: -40 °C to +60 °C
-
Ingress protection: IP65
-
Dimensions: 98 mm × 99.8 mm × 43.9 mm
-
Power consumption: ≤ 5 W
Recommended Applications
- Outdoor door entry stations for estates, apartments and commercial buildings.
- Access control points needing integration with card readers, CCTV and dual-lock setups.
- Cold-climate installations (-40 °C start-up) or high-security entrances with tamper detection and professional grade network support.
Installation Notes
- Mount the unit at eye/shoulder height for optimal camera view and user accessibility.
- Use shielded Ethernet cable for PoE installations; verify switch supports IEEE 802.3af power class.
- Configure lock control relays for your door hardware; test relay switching during commissioning.
- Secure network connection: change default password, enable HTTPS and segment the intercom network if possible.
- Ensure the outdoor enclosure is sealed and cable entry properly sealed to maintain IP65 rating and weather-durability.
