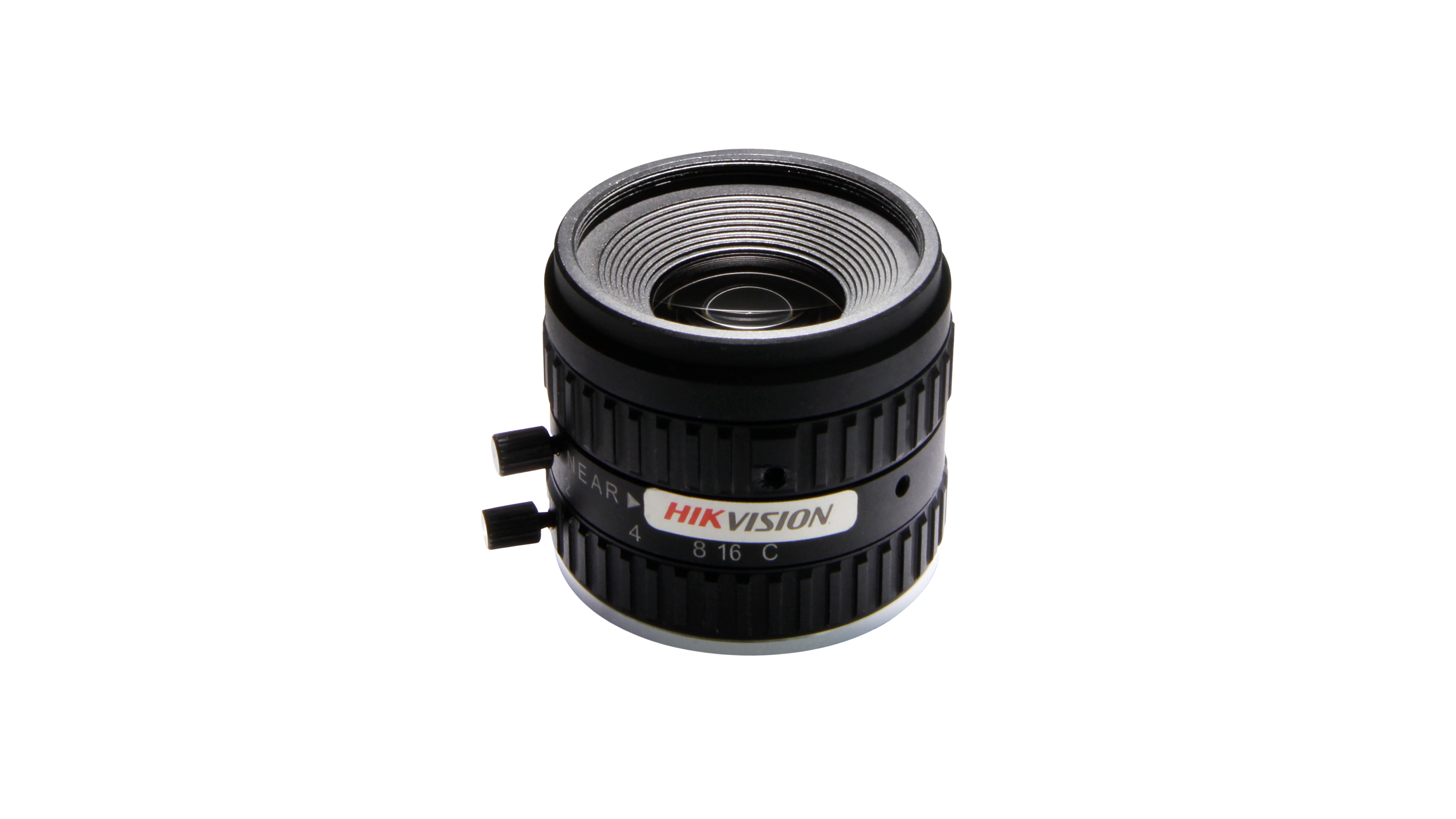

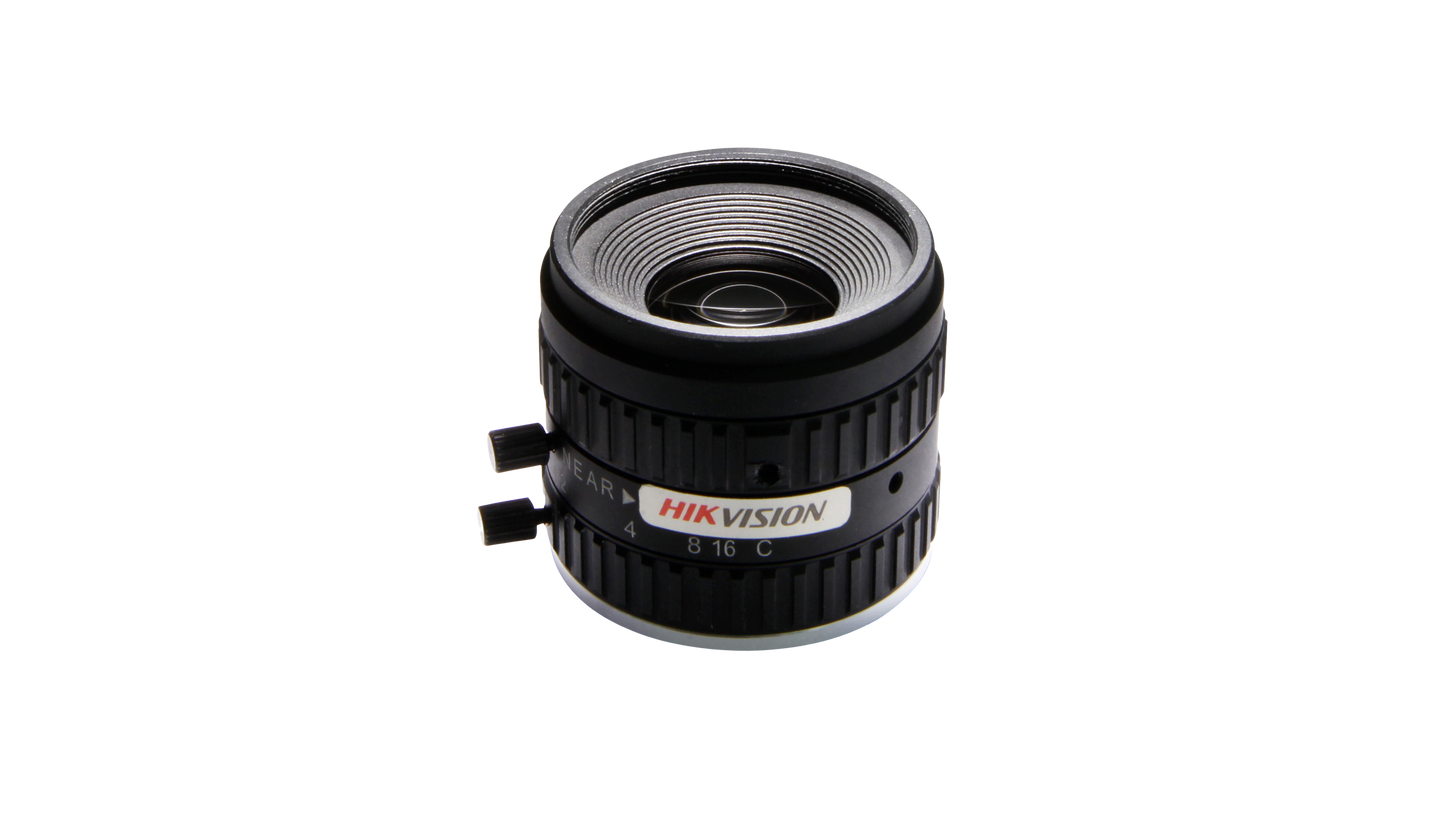

Precision optics for high-resolution surveillance systems. The Hikvision MF2514M-5MP is a fixed-focal length lens designed for 5 MP cameras, offering sharp image quality, manual iris control and reliable performance. With its 25 mm focal length and C-mount compatibility, it’s a great choice for professional CCTV installations in South Africa where clarity and durability matter.
What this lens delivers
When your surveillance application demands crisp detail—whether identifying individuals, monitoring critical zones or capturing vehicle licence plates—the right lens matters. The MF2514M-5MP gives you a stable 25 mm view that cuts out distortion, ensures consistent focus and works with high-resolution 5 MP sensors to capture usable, high-quality footage.
Key features & benefits
-
High-resolution ready: Designed for 5 MP cameras, delivering clear detail in high-definition systems.
-
Fixed 25 mm focal length: Provides a stable, predictable field of view in fixed-position setups.
-
Manual iris control: Enables installers to fine-tune exposure for challenging lighting conditions.
-
C-Mount compatibility: Fits cameras with C-mount threads—ideal for professional installations.
-
Compact and lightweight: Approx. 81.5 g weight and dimensions Φ36.0 × 33.7 mm make it easy to mount in a variety of housings.
Specifications
-
Model: MF2514M-5MP
-
Type: Fixed focal manual-iris lens
-
Focal length: 25 mm
-
Maximum image format: Ø12.1 mm (3/4″)
-
Mount type: C-mount
-
Aperture / F-number: F1.4-C
-
Minimum object distance (M.O.D): 1 m
-
Weight: 81.5 g
-
Dimensions: Φ36.0 mm × 33.7 mm (approx.)
-
Operating temperature range: -20 °C to +60 °C
-
Field of view (approx.):
- Diagonal (2/3″): 24.9°
- Horizontal (2/3″): 19.0°
- Vertical (2/3″): 15.9°
Typical applications
- Fixed-mounted CCTV cameras covering corridors, access points or indoor zones where distance to target is consistent.
- High-definition surveillance systems using 5 MP sensors where optical clarity is critical.
- Installations in South African environments where durable, professional-grade components matter.
Installation & setup tips
- Ensure your camera supports C-mount lenses; adjust for correct flange focal distance when needed.
- Set focus on target area using live view before locking the focus ring for consistency.
- Adjust the manual iris to match ambient lighting and avoid over-exposure or under-exposure in your scene.
- For outdoor or variable lighting installations, consider a weather-proof housing and clean the lens periodically for best results.
Clear, high-precision surveillance starts with the right lens. The Hikvision MF2514M-5MP combines fixed optics, manual control and high-resolution compatibility—making it a dependable choice for professional CCTV installations in South Africa.
Short product blurb (for collection pages): Hikvision MF2514M-5MP — 25 mm fixed focal manual-iris lens for 5 MP cameras (C-mount, Ø12.1 mm image format, compact design).
