HIKVISION THERMAL BULLET CAMERA 25MM
HIKVISION THERMAL BULLET CAMERA 25MM

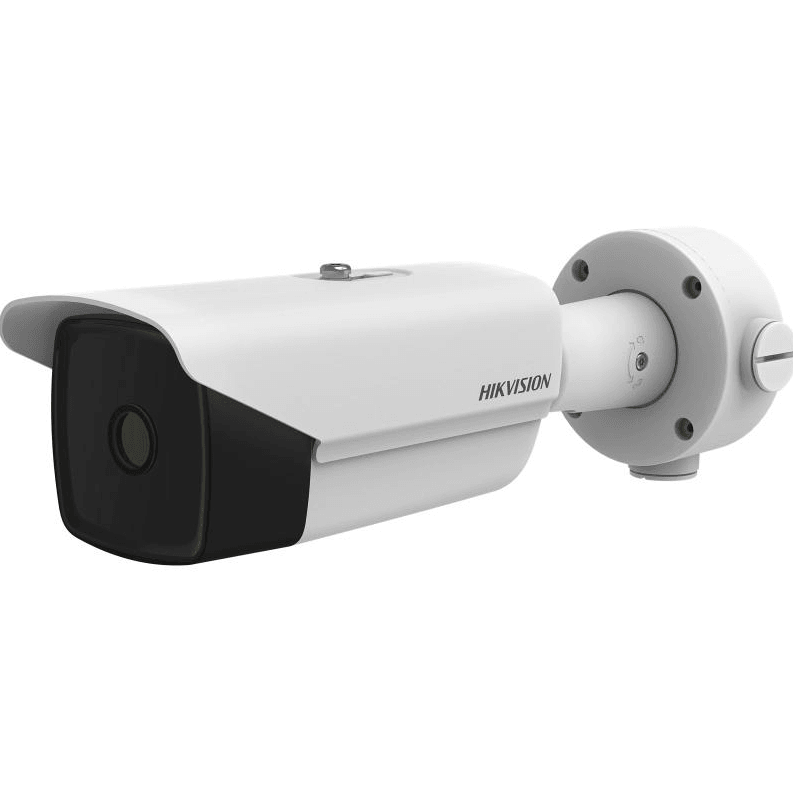

This Hikvision thermal bullet camera, model DS-2TD2138-25/QY, is specifically designed for perimeter protection and fire prevention in critical infrastructures like airports, railways, prisons, power stations, and 4S stores. Its vanadium oxide uncooled focal plane sensor greatly enhances thermal image quality, while its anti-corrosion coating makes it suitable for harsh environments.
Key Feature
- 384 × 288 resolution, 12 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance & exit
- High quality detector
SPECS:
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution384 × 288
- Pixel Pitch12 μm
- Spectral Range8 μm to 14 μm
- NETD< 35 mK (25°C, F1.0)
- Focal Length25 mm
- IFOV0.48 mrad
- Field Of View11.0° × 8.0° (H × V)
- Min. Focusing Distance13 m
- ApertureF1.0
- Digital Zoom2×, 4×, 8×
- Image Effect
- Target ColorationYes. Supported in white hot and black hot mode.
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 150°C (-4°F to 302°F)
- Temperature Accuracy± 8°C (± 14.4°F)
- Video And Audio
- Main Stream25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
- Sub-Stream25 fps (704 × 576, 640 × 512, 352 × 288)
- Third Stream25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
-
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SRTP, SFTP
- APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
- Simultaneous Live ViewUp to 20 channels
- ClientiVMS-4200, Hik-Connect
-
Web Browser
Live view (plug-in allowed): Internet Explorer 11
Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 +
Local service: Chrome 57.0 +, Firefox 52.0 +
- Network StorageMicroSD/SDHC/SDXC card (up to 256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
- Interface
- Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- Alarm Input2, alarm input (0 to 5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
-
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear level, impedance: 600 Ω
-
Communication Interface
1, RJ45 10 M/100 M self-adaptive Ethernet interface
1, RS-485 interface (half duplex)
- General
-
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
-
Power Supply
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
PoE (802.3af, class 3)
-
Power Consumption
24 VAC ± 25%: 0.13 A to 0.22 A, Max. 5 W
12 VDC ± 25%: 0.37 A to 0.61 A, Max. 5 W
PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, Max. 5.5 W
-
Working Temperature/Humidity
Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity: 90% or less
-
Protection Level
IP67 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
- Dimensions351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
- WeightApprox. 1.77 kg (3.90 lb)
HIKVISION THERMAL BULLET CAMERA 25MM
This Hikvision thermal bullet camera, model DS-2TD2138-25/QY, is specifically designed for perimeter protection and fire prevention in critical infrastructures like airports, railways, prisons, power stations, and 4S stores. Its vanadium oxide uncooled focal plane sensor greatly enhances thermal image quality, while its anti-corrosion coating makes it suitable for harsh environments.
Key Feature
- 384 × 288 resolution, 12 μm, VOx UFPA, NETD < 35 mK (25°C, F1.0)
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- Perimeter protection function, based on intelligent algorithm: line crossing, intrusion, region entrance & exit
- High quality detector
SPECS:
- Thermal Module
- Image SensorVanadium Oxide Uncooled Focal Plane Arrays
- Resolution384 × 288
- Pixel Pitch12 μm
- Spectral Range8 μm to 14 μm
- NETD< 35 mK (25°C, F1.0)
- Focal Length25 mm
- IFOV0.48 mrad
- Field Of View11.0° × 8.0° (H × V)
- Min. Focusing Distance13 m
- ApertureF1.0
- Digital Zoom2×, 4×, 8×
- Image Effect
- Target ColorationYes. Supported in white hot and black hot mode.
- Smart Function
- VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total
- Temperature Measurement3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
- Temperature Range-20°C to 150°C (-4°F to 302°F)
- Temperature Accuracy± 8°C (± 14.4°F)
- Video And Audio
- Main Stream25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
- Sub-Stream25 fps (704 × 576, 640 × 512, 352 × 288)
- Third Stream25 fps (1280 × 720, 704 × 576, 640 × 512, 352 × 288)
-
Video Compression
Main Stream: H.265/H.264
Sub-Stream: H.265/H.264/MJPEG
Third Stream: H.265/H.264/MJPEG
- Audio CompressionG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
- Network
- ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, SRTP, SFTP
- APIISAPI, HIKVISION SDK, and third-party management platform, Open Network Video Interface (Profile S, Profile G)
- SecurityUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x (EAP-MD5, EAP-TLS), access control, IP address filtering
- Simultaneous Live ViewUp to 20 channels
- ClientiVMS-4200, Hik-Connect
-
Web Browser
Live view (plug-in allowed): Internet Explorer 11
Live view (plug-in free): Chrome 57.0 +, Firefox 52.0 +
Local service: Chrome 57.0 +, Firefox 52.0 +
- Network StorageMicroSD/SDHC/SDXC card (up to 256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- User/Host LevelUp to 32 users, 3 levels: Administrator, Operator, User
- Interface
- Analog Output1.0V [p-p]/75Ω, PAL/NTSC/BNC
- Alarm Input2, alarm input (0 to 5 VDC)
- Alarm Output2, alarm output (alarm response actions configurable)
- Alarm ActionSD recording/Relay output/Smart capture/FTP upload/Email linkage
-
Audio Input
1, 3.5 mm Mic in/Line in interface
Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ ± 10%
- Audio OutputLinear level, impedance: 600 Ω
-
Communication Interface
1, RJ45 10 M/100 M self-adaptive Ethernet interface
1, RS-485 interface (half duplex)
- General
-
Web Client Language
32 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
-
Power Supply
24 VAC ± 25%, 12 VDC ± 25%, two-core terminal block
PoE (802.3af, class 3)
-
Power Consumption
24 VAC ± 25%: 0.13 A to 0.22 A, Max. 5 W
12 VDC ± 25%: 0.37 A to 0.61 A, Max. 5 W
PoE (802.3af, class 3): 44 V to 57 V: 0.1 A to 0.13 A, Max. 5.5 W
-
Working Temperature/Humidity
Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity: 90% or less
-
Protection Level
IP67 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection
- Dimensions351.3 mm × 113.5 mm × 115.2 mm (13.83" × 4.47" × 4.53")
- WeightApprox. 1.77 kg (3.90 lb)
