- Vendor: HIKVISION
- Type: CCTV
- SKU: 11191

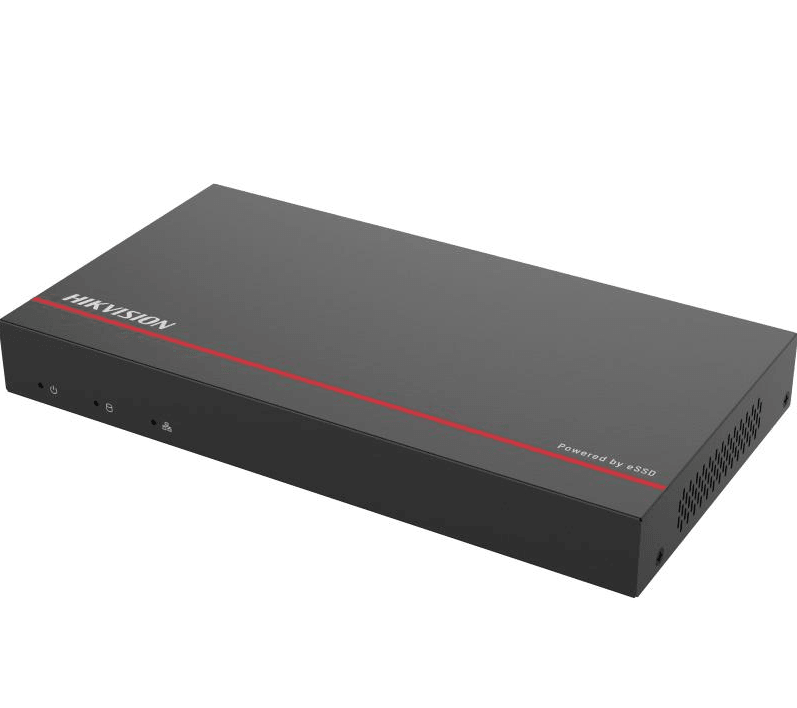

HIKVISION SSD COMPACT NVR
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay
Payflex
HIKVISION SSD COMPACT NVR
The HIKVISION SSD COMPACT NVR offers a low power consumption with its Built-in SSD design. The integrated storage design allows for plug-and-play use, while also offering easy installation with its Mini size design that saves space. Its anti-vibration design and light weight make it suitable for a variety of installation conditions.
With H.265+ compression, the device effectively reduces storage space by up to 75%, and offers full channel recording at up to 4 MP resolution. The NVR also features 2-ch@4 MP or 4-ch@1080p playback resolution and 8 independent PoE network interfaces. Additionally, it has 1 self-adaptive 10/100 Mbps Ethernet interface and easy network management with Hik-Connect.
FEATUERS:
- Powered by eSSD technology
- Low power consumption
- H.265+/H.265/H.264+/H.264 video compression
- Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- Up to 8-ch network camera inputs
- Up to 4-ch 1080p decoding capability
- Video And Audio
- IP Video Input8-ch
- Incoming Bandwidth60 Mbps
- Outgoing Bandwidth60 Mbps
- HDMI Output1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
- Decoding
- Decoding FormatH.265,Smart265,H.264,Smart264
- Recording Resolution4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback4-ch
- Decoding Capability4-ch@1080p (25 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
- Network
- Remote Connection128-ch
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP,NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface 1 RJ45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 58 W
- Standard IEEE 802.3 af/at
- Auxiliary Interface
- Capacity 1TB SSD (pre-installed)
- USB Interface Rear panel: 2 × USB 2.0
- General
- Power Supply48VDC，1.36A
- Consumption≤ 10 W (with SSD)
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)225 ×122 ×27 mm (8.9" × 4.8" × 1.1")
- Weight≤ 0.57 kg
- Certification
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
HIKVISION SSD COMPACT NVR
The HIKVISION SSD COMPACT NVR offers a low power consumption with its Built-in SSD design. The integrated storage design allows for plug-and-play use, while also offering easy installation with its Mini size design that saves space. Its anti-vibration design and light weight make it suitable for a variety of installation conditions.
With H.265+ compression, the device effectively reduces storage space by up to 75%, and offers full channel recording at up to 4 MP resolution. The NVR also features 2-ch@4 MP or 4-ch@1080p playback resolution and 8 independent PoE network interfaces. Additionally, it has 1 self-adaptive 10/100 Mbps Ethernet interface and easy network management with Hik-Connect.
FEATUERS:
- Powered by eSSD technology
- Low power consumption
- H.265+/H.265/H.264+/H.264 video compression
- Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
- Up to 8-ch network camera inputs
- Up to 4-ch 1080p decoding capability
- Video And Audio
- IP Video Input8-ch
- Incoming Bandwidth60 Mbps
- Outgoing Bandwidth60 Mbps
- HDMI Output1920×1080/60Hz，1600×1200/60Hz，1280×1024/60Hz，1280×720/60Hz
- Decoding
- Decoding FormatH.265,Smart265,H.264,Smart264
- Recording Resolution4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback4-ch
- Decoding Capability4-ch@1080p (25 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
- Network
- Remote Connection128-ch
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP,NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Network Interface 1 RJ45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power≤ 58 W
- Standard IEEE 802.3 af/at
- Auxiliary Interface
- Capacity 1TB SSD (pre-installed)
- USB Interface Rear panel: 2 × USB 2.0
- General
- Power Supply48VDC，1.36A
- Consumption≤ 10 W (with SSD)
- Working Temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)225 ×122 ×27 mm (8.9" × 4.8" × 1.1")
- Weight≤ 0.57 kg
- Certification
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
