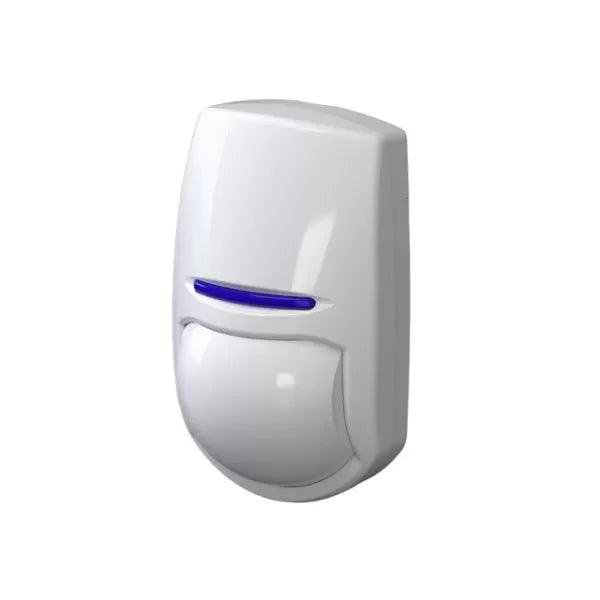

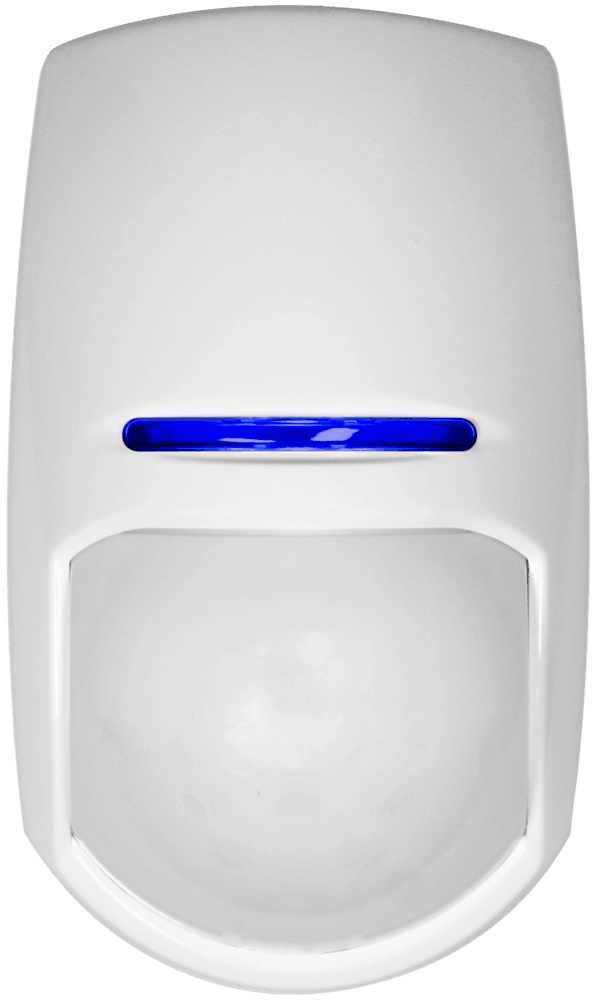

PYRONIX KX10DP INDOOR PIR

KX10DP

Intelligent home protection

 Keep your home protected even if you have pets. The KX10DP’s intelligent Pet Immune technology differentiates between your pets and intruders with pet immunity for even larger pets (up to 24kg – approximately the size of a Labrador).

Pet Immune / 10m volumetric detector

 The detectors intelligent PI (Pet Immune) technology analyses the difference between an intruder and a pet signal, with immunity up to 24kg and 10m coverage range.

Selectable EOL resistors

 The detectors incorporates selectable alarm resistor values of 6K8, 5K6, 4K7 &1K & tamper values of 5K6, 4K7, 2K2 and 1K catering for most control panels on the market.

Tamper proof brackets

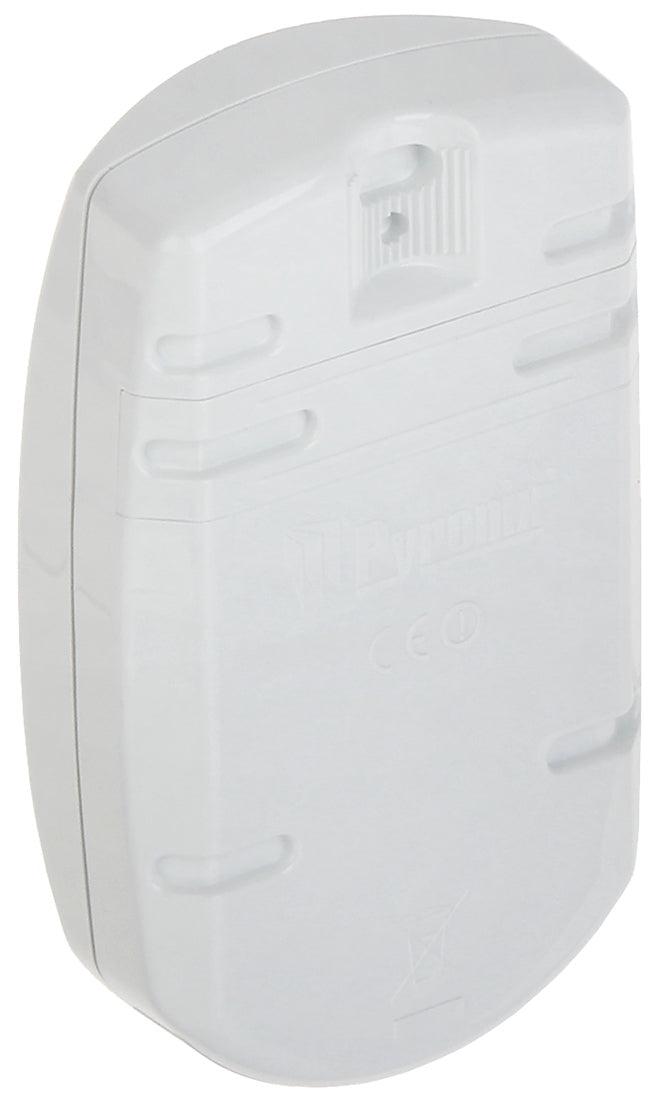

 Supplied with both wall & ceiling mount brackets which provides access for up to two 8 core cables (Tamper kit optional).

Blue Wave Technology

 This technology further enhances the detector’s immunity to infra-red noise in the environment. BWT comprises of some key components :

• The 3D optics system enables perfect focusing of the infra-red signal onto the pyro-electric sensor. This allows the detector to clearly identify the positive and negative signal edges.
• Digital temperature compensation digitally adjusts the detectors sensitivity to ensure intruder catch performance is maintained.
• Powerful software embedded into a microprocessor is used to process the received information from the pyro-electric sensor.

The result of this combination is lower infra-red signal noise amplification and therefore better immunity.

ABS plastics

 3mm polished finish, reduces electrostatic interference on the PIR sensor.

Sealed optics

 Protects from possible infestation from insects, shields air movement in front of the pyro-electric sensor and protects against adverse reflections from inside the detector housing.

• 10m pet immune detection up to 24kg animal

• Selectable EOL (End Of Line) resistors

• Blue Wave Technology

• Auto sensitivity feature

• Digital temperature compensation

• Tamper proof brackets included

• Sealed optics

• ABS plastics

• Complies with EN50131-1

What's in the box :

1 x Hikvision Pyronix KXDP10 PIR

1 x Mounting bracket and screws

1 x User Manual
