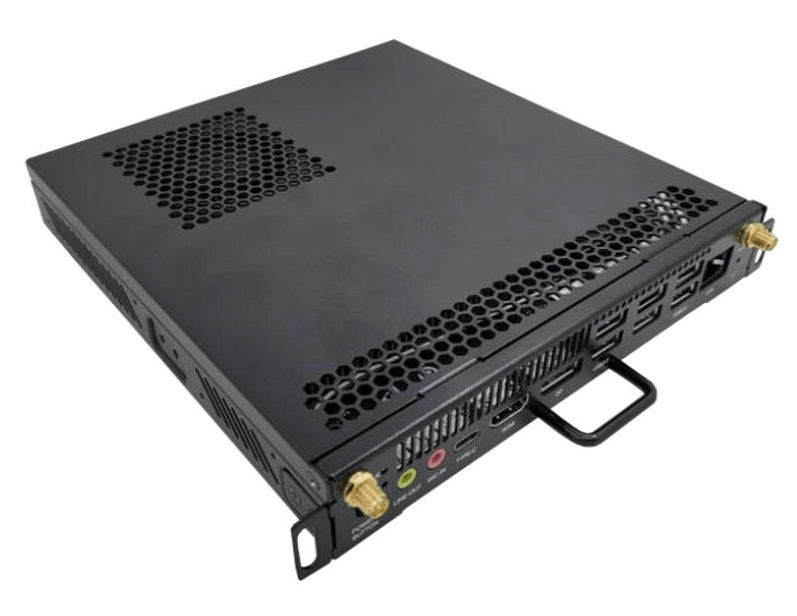

HIKVISION OPS MODULE WITH BUILT IN WIN 10
HIKVISION OPS MODULE WITH BUILT IN WIN 10
The HIKVISION OPS MODULE WITH BUILT IN WIN 10 is equipped with Intel® Iris® Xe Graphics, allowing for 4K resolution and quick start capabilities with a M.2 nvme system disk. It also features 4 USB 3.0 ports, 2 USB 2.0 ports, 1 HDMI port, 1 DP interface, and 1 Type-C port, making it a versatile option for various connectivity needs. In addition, it supports dual channel memory and Wi-Fi IEEE 802.11 a/b/g/n/ac for efficient and reliable performance.
FEATURES:
- Intel® Iris® Xe Graphics, support 4K resolution
- Support M.2 nvme system disk quick start
- Support 4 USB 3.0 ports, 2 USB2.0 ports, 1 HDMI port, 1 DP interface,1 Type-C port
- Support dual channel memory
- Support Wi-Fi IEEE 802.11 a/b/g/n/ac
SPECS:
- Built-In System
- Operation SystemWIN10 SAC
- Processor Intel® Core, i5 11th
- CPU Clock Speed3.2GHz
- Memory4G * 2
- NIC Integrated 10/100/1000M Adaption
- Graphics Intel® Iris® Xe Graphics
- Platform Architecture Intel® Tiger Lake
- Storage 256G
- Cooling System Single Brass & Single Fan
- Interface
- Network InterfaceRJ45 * 1
-
Data Transmission Interface
Bluetooth 4.2
USB 3.0 * 4;USB 2.0 * 2;Type-C * 1
- Video Output HDMI * 1; DP * 1
- Antenna2
- Power
- Standby Consumption0.5W
- Input Voltage12V-19V DC
- Max. Consumption95W
- General
- Product Dimensions (W × H × D)195×30×180mm
-
Package Dimensions (W × H × D)
Carton with a single module : 308 * 80 * 278 mm
Carton with five modules : 420 * 298 * 320 mm
- Net Weight About 1.22kg
-
Gross Weight
Carton with a single module : about 1.36 kg
Carton with five modules : about 7.50 kg
- Color Black
- Working Environment
- Working Temperature0°C - 40°C
- Working Humidity10%-90%
- Storage Temperature-20°C - 60°C
- Storage Humidity10%-90%
HIKVISION OPS MODULE WITH BUILT IN WIN 10
The HIKVISION OPS MODULE WITH BUILT IN WIN 10 is equipped with Intel® Iris® Xe Graphics, allowing for 4K resolution and quick start capabilities with a M.2 nvme system disk. It also features 4 USB 3.0 ports, 2 USB 2.0 ports, 1 HDMI port, 1 DP interface, and 1 Type-C port, making it a versatile option for various connectivity needs. In addition, it supports dual channel memory and Wi-Fi IEEE 802.11 a/b/g/n/ac for efficient and reliable performance.
FEATURES:
- Intel® Iris® Xe Graphics, support 4K resolution
- Support M.2 nvme system disk quick start
- Support 4 USB 3.0 ports, 2 USB2.0 ports, 1 HDMI port, 1 DP interface,1 Type-C port
- Support dual channel memory
- Support Wi-Fi IEEE 802.11 a/b/g/n/ac
SPECS:
- Built-In System
- Operation SystemWIN10 SAC
- Processor Intel® Core, i5 11th
- CPU Clock Speed3.2GHz
- Memory4G * 2
- NIC Integrated 10/100/1000M Adaption
- Graphics Intel® Iris® Xe Graphics
- Platform Architecture Intel® Tiger Lake
- Storage 256G
- Cooling System Single Brass & Single Fan
- Interface
- Network InterfaceRJ45 * 1
-
Data Transmission Interface
Bluetooth 4.2
USB 3.0 * 4;USB 2.0 * 2;Type-C * 1
- Video Output HDMI * 1; DP * 1
- Antenna2
- Power
- Standby Consumption0.5W
- Input Voltage12V-19V DC
- Max. Consumption95W
- General
- Product Dimensions (W × H × D)195×30×180mm
-
Package Dimensions (W × H × D)
Carton with a single module : 308 * 80 * 278 mm
Carton with five modules : 420 * 298 * 320 mm
- Net Weight About 1.22kg
-
Gross Weight
Carton with a single module : about 1.36 kg
Carton with five modules : about 7.50 kg
- Color Black
- Working Environment
- Working Temperature0°C - 40°C
- Working Humidity10%-90%
- Storage Temperature-20°C - 60°C
- Storage Humidity10%-90%
