HIKVISION NUMERIC AND CARD READER
- Vendor: HIKVISION
- Type: CCTV
- SKU: 11270
HIKVISION NUMERIC AND CARD READER
Safe & Secure Payment Options
Visa & Mastercard
Payfast By Network
Float
PayJustNow
Yoco Payment
Happy Pay

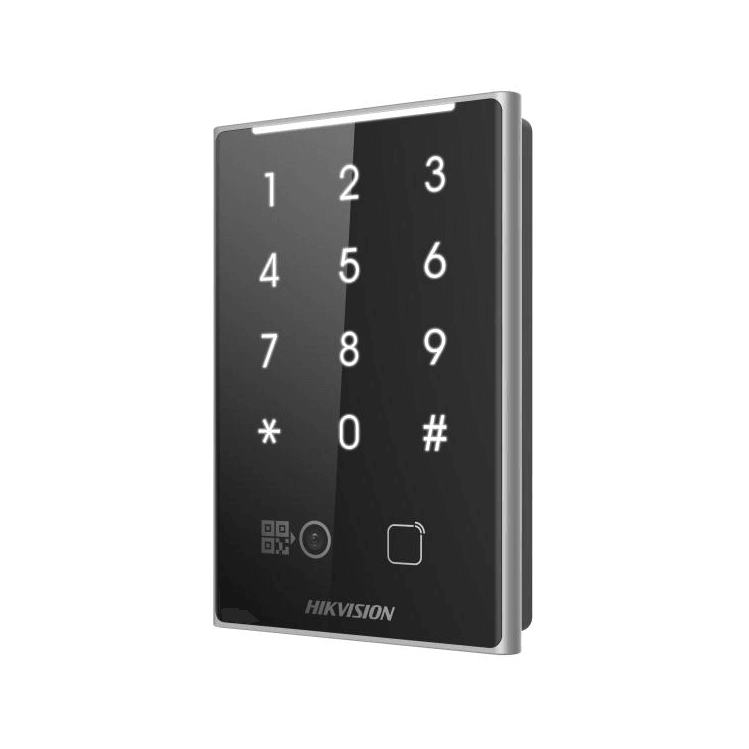

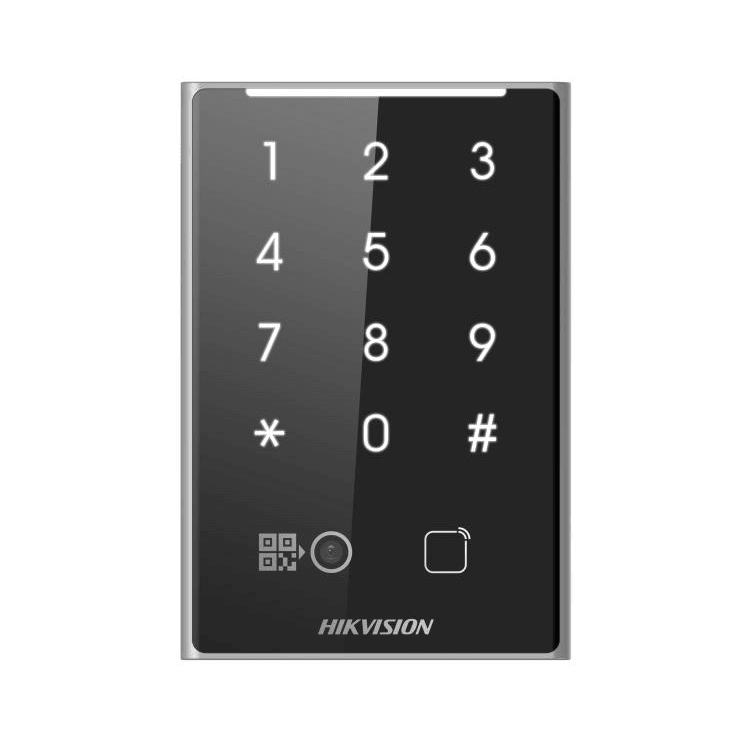

HIKVISION NUMERIC AND CARD READER
DS-K1109DKB-QR
- Supports RS-485 and Wiegand (W26, W34) protocol
- Supports reading DESfire card, Felica card and M1 card
- Supports authentication via card, password and QR code
- Supports bluetooth module (when connecting by RS-485)
- Tamper-proof function
- Interface
- TAMPER1
- RS-4851
- Wiegand 1
- Authentication
- Card Type M1 card;DESfire card;Felica card
- General
- Power Supply 12vdc
-
Power Consumption
With load: ≤ 14 w
Without load: ≤ 4 w
- Working Temperature-40 °C to 65 °C (-40 °F to 149 °F)
- Working Humidity 0 to 90% (no condensing)
- Dimensions 125 mm × 84.5 mm × 18 mm (4.92" × 3.33" × 0.71")
- Installation Wall mounting
- Weight≤ 1 kg (2.20 lb)
- BuzzerSupport
- Function
-
Barcode Recognition
Support
Format: Code 128, Interleaved 2 of 5, Matrix 2 of 5, Code 39, Codebar, Code 9 and UCC/EAN-128
- QR Code Recognition Support (when connecting by RS-485)
