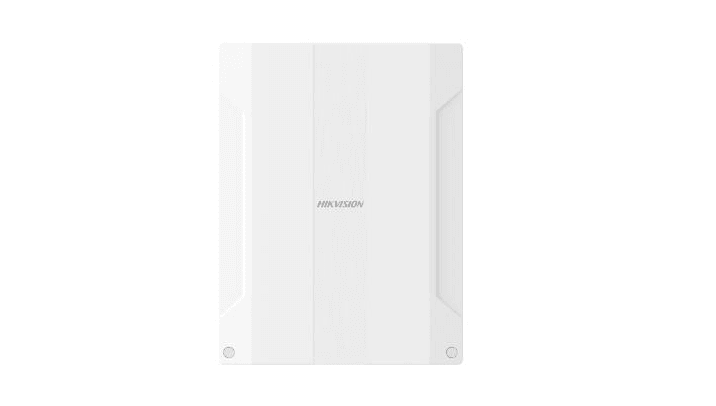

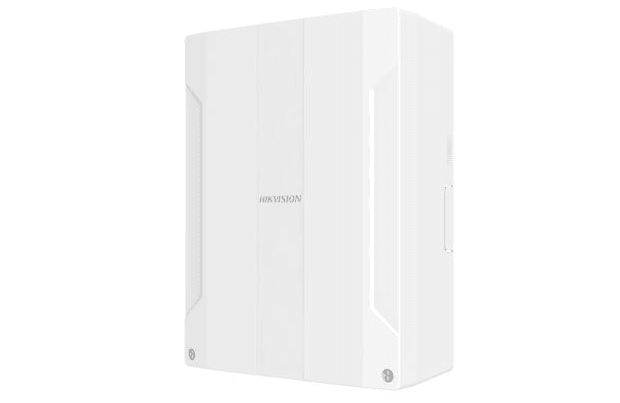

HIKVISION MULTI IO TRANSMITTER 868MHZ
DS-PM1-I16O2-WE
Upgrade your security system with DS-PM1-I16O2-WE, a wireless multi IO transmitter that seamlessly integrates third-party wired detectors, such as outdoor PIR, into your AX PRO alarm system.
With the convenience of an easy-to-use app, installers can quickly set alarm types and zone parameters. Embrace innovation and enhance your existing alarm system without altering any existing wired detectors with the multi IO transmitter.
FEATURES:
- 868MHz two-way wireless communication
- LED display, show the real status of device
- With 16 onboard inputs and 2 outputs, can be applied to connect wired detectors
- With two 12v power outputs, can be used to power up external wired detectors
- Large space for back up storage battery
SPECS:
- Software features
-
End of Line Resistance
1k 2.2k 4.7k 8.2k
NO/NC
- Hardware features
- Serial port1
- Battery port1, 12 VDC input
- Tamper-ProofFront and rear
- Power switch1
- Alarm input16
- Alarm output2
- Power Output2 (12v, total1A)
- Electrical characteristics
-
Battery type
Compatible with 12v 7 Ah
150 × 64 × 94 mm
- Power supply100-240VAC，30w
- Operation humidity10%~90%
- Operation temperature–10 ~ 40°C
-
Power consumption
Battery Supply: Quiescent current (50mA), Max current (1500mA), Voltage (13.8V)
220V Supply: Quiescent current (45mA), Max current (300mA), Voltage (220V)
- Battery life span Up to 36 hours
- Wireless transmission
- RF frequency 868MHz
- RF method Two-way communication
- RF modulation FSK
- RF distance 1100m
- Display
- Indicator 3: Power（Green）, Fault（Amber）, Signal Strength（Green/Red）
- General
- Installation method Wall Mounting
- Dimension(WxHxD)261*199*86.4mm
- Shell material Plastic
- Color White
-
Weight
975 g (without battery)
3024g (with battery)
