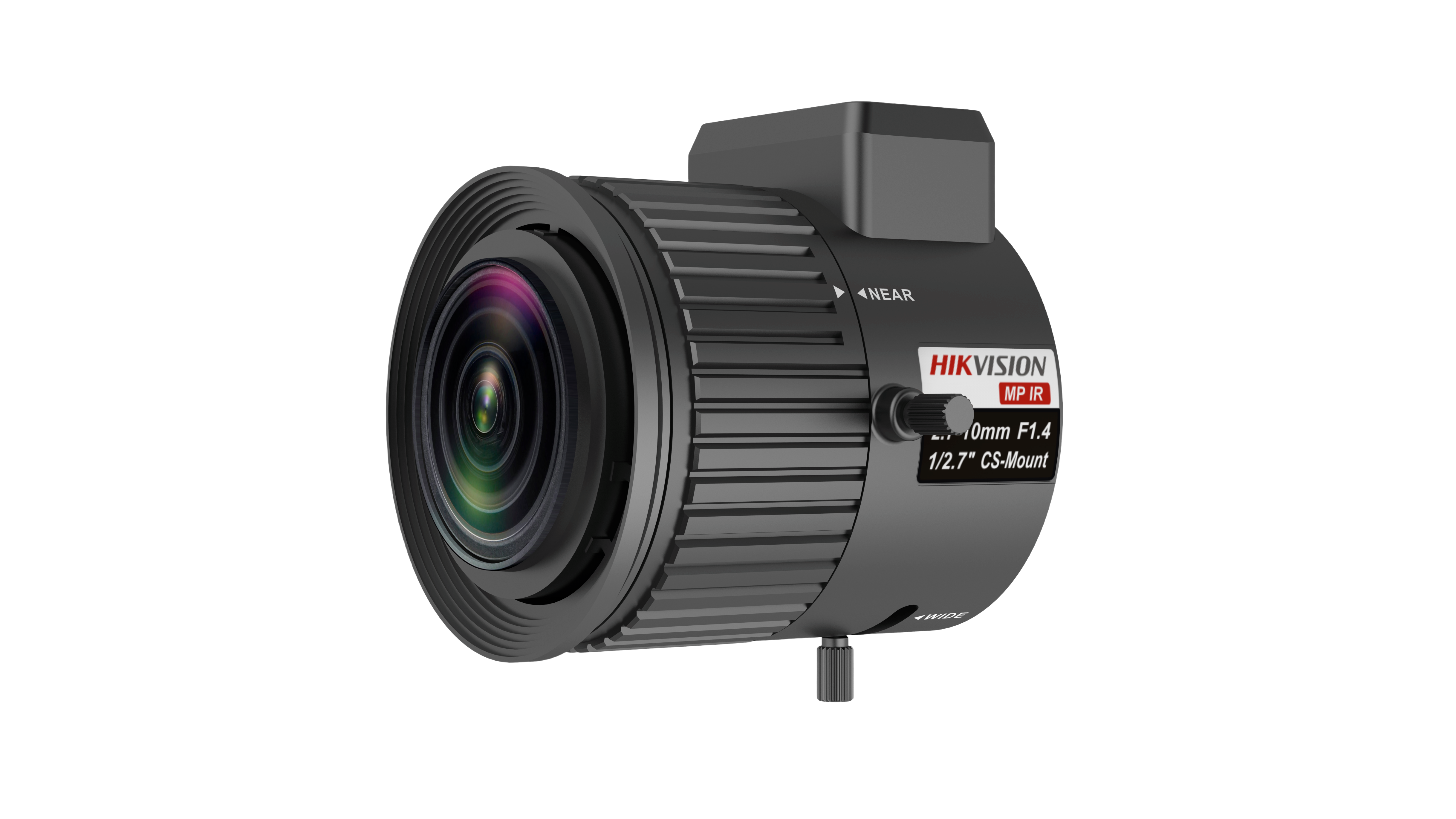

Give your CCTV system the optical flexibility it needs. The Hikvision TV2710D-MPIR is a compact, high-quality varifocal lens designed for 3-megapixel cameras. With a 2.7–10 mm focal range and DC auto-iris control, it delivers sharp images from wide-angle coverage to tighter, zoomed framing — ideal for entrances, corridors, retail counters and other professional surveillance applications.
Why fit a TV2710D-MPIR lens?
Many installations are limited by a fixed lens that either shows too much or too little. This varifocal lens lets you dial in the exact field of view on site, reducing installation time and giving you usable image detail where it matters. The auto-iris keeps exposure consistent when lighting changes, and the CS-mount ensures simple integration with compatible cameras.
Key features
- Supports up to 3 MP camera sensors for crisp detail
-
2.7–10 mm varifocal range — flexible from wide to narrow views
-
DC auto-iris for consistent exposure under varying light
-
CS-mount standard fitting for easy integration
- Suitable for use with IR-equipped cameras (check IR coverage)
- Compact and lightweight — simple to position in tight housings
Technical specifications
-
Model: TV2710D-MPIR
-
Resolution support: Up to 3 MP
-
Focal length: 2.7–10 mm
-
Aperture / F-number: F1.4 (fixed)
-
Image format support: Ø6.5 mm (1/2.7″)
-
Minimum focusing distance: 0.1 m
-
Field of view (approx.): Diagonal 129.7°–41.0° (1/2.8″); Horizontal 108.2°–35.7° (1/2.8″)
-
Mount type: CS-mount
-
Operating temperature: -20 °C to +60 °C
-

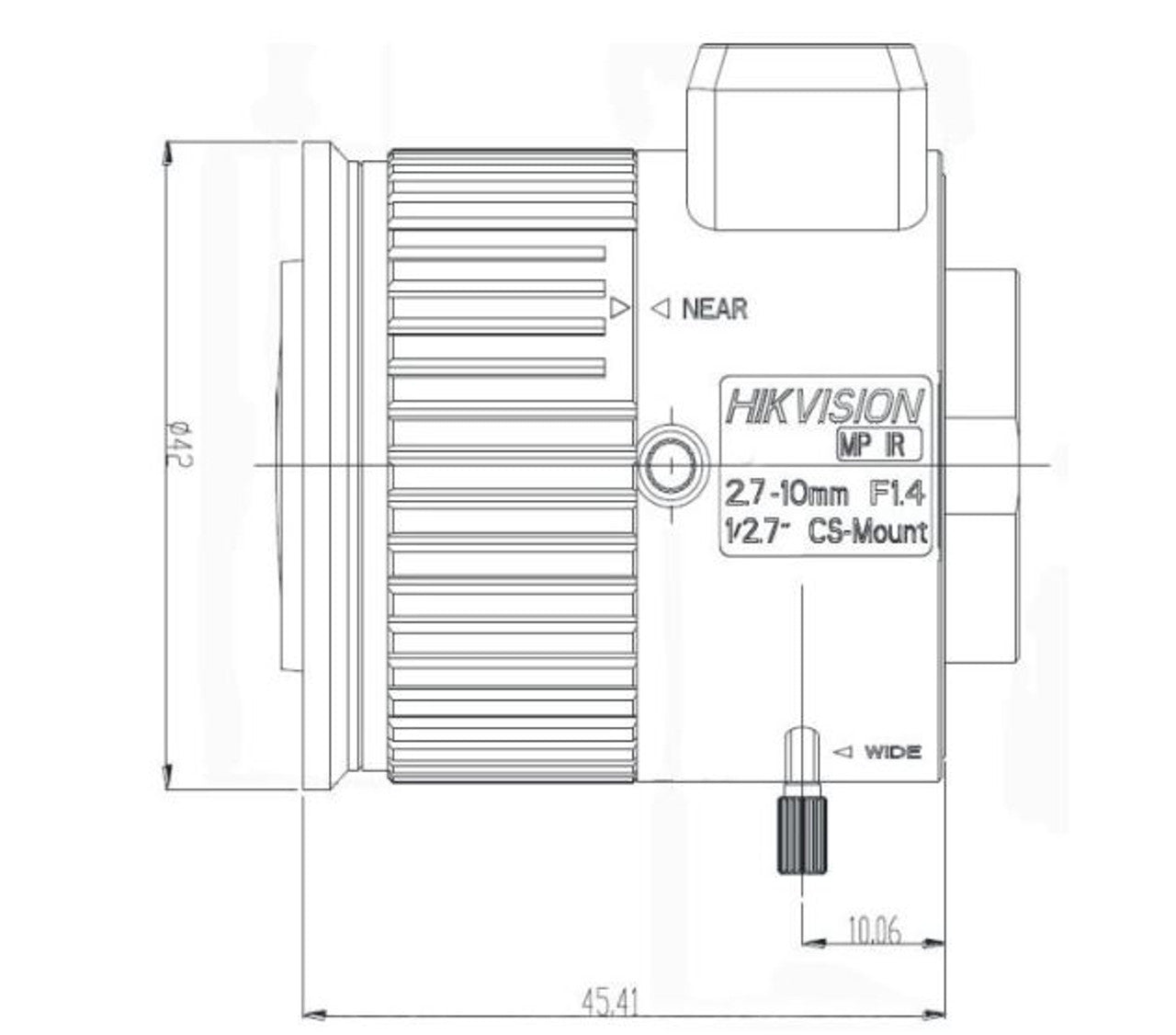

Dimensions: Ø42 × 46.9 mm (approx.)
-
Weight: ≈ 56 g
Typical applications
- Entrances and reception areas where both wide context and ID detail are required
- Corridors and aisles in retail or warehouse environments
- Upgrades to existing CCTV cameras where better framing and low-light performance are needed
- Professional installations requiring reliable auto-iris control
Installation & setup tips
- Confirm your camera has a CS-mount or use a C/CS adapter if needed.
- Mount the camera and adjust zoom & focus while viewing live footage to get precise framing.
- When using IR illumination, check that the lens field of view aligns with the IR pattern for even coverage.
- After focus and zoom are set, tighten the set screws to prevent drift from vibration.
- Clean the lens only with a lint-free cloth or lens tissue to avoid scratches.
Frequently asked questions
Will this lens fit my camera?
It fits cameras with a CS-mount. If your camera has a C-mount, use a C/CS adapter. Check sensor coverage (1/2.7″ or 1/2.8″ recommended) to ensure the lens covers the sensor area without vignetting.
Is the auto-iris compatible with all camera types?
This lens uses DC auto-iris control. Confirm your camera or lens controller supports DC iris drives. If not, you may need a compatible iris controller or choose a manual iris lens.
Can I use it outdoors?
The lens is compact and robust, but we recommend installing it within a suitable, weatherproof camera housing for outdoor use to protect against dust and moisture.
Short product blurb
Hikvision TV2710D-MPIR — 3 MP varifocal lens 2.7–10 mm, DC auto-iris, CS-mount. Flexible field of view and consistent exposure for professional CCTV systems.
