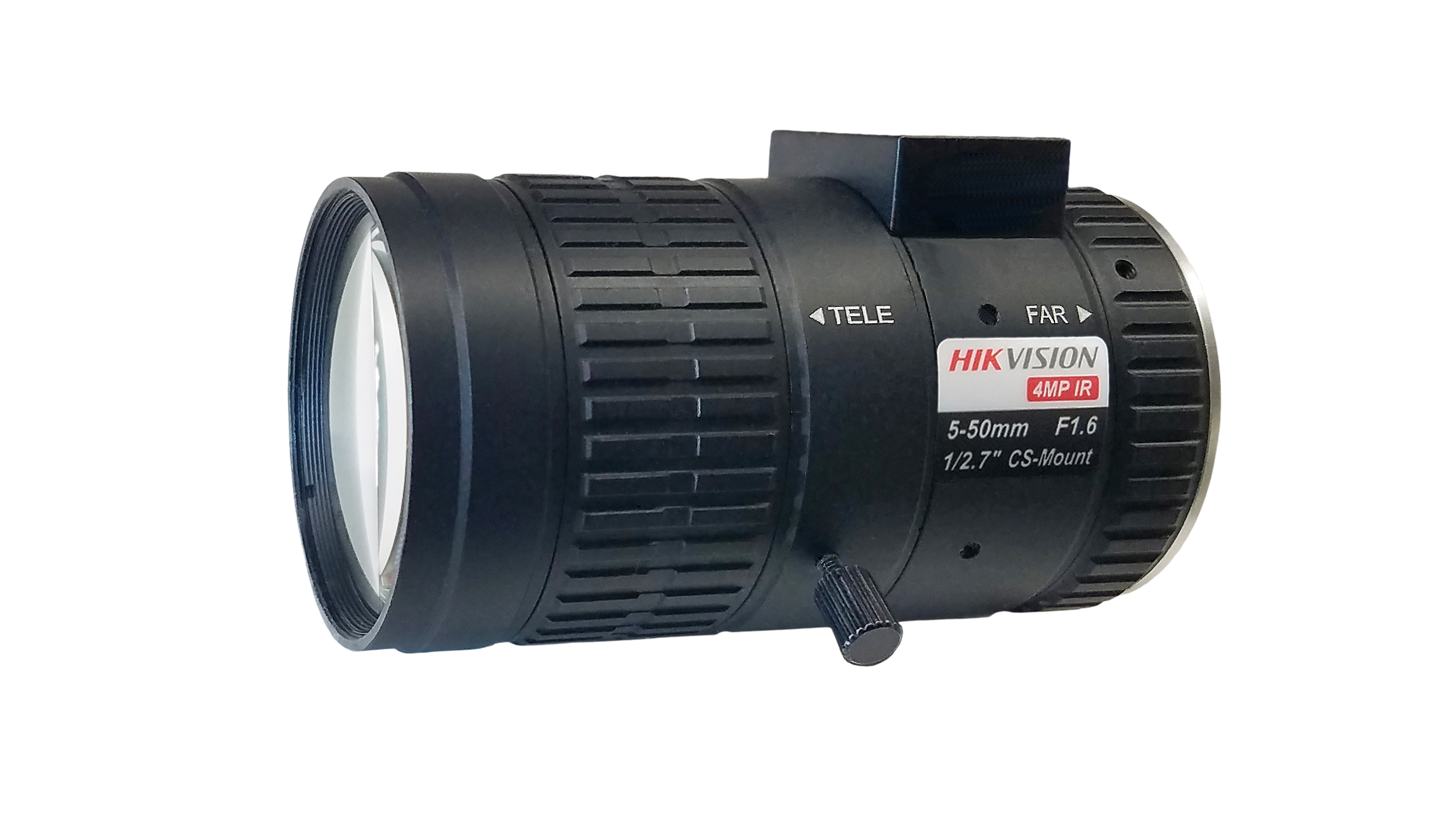

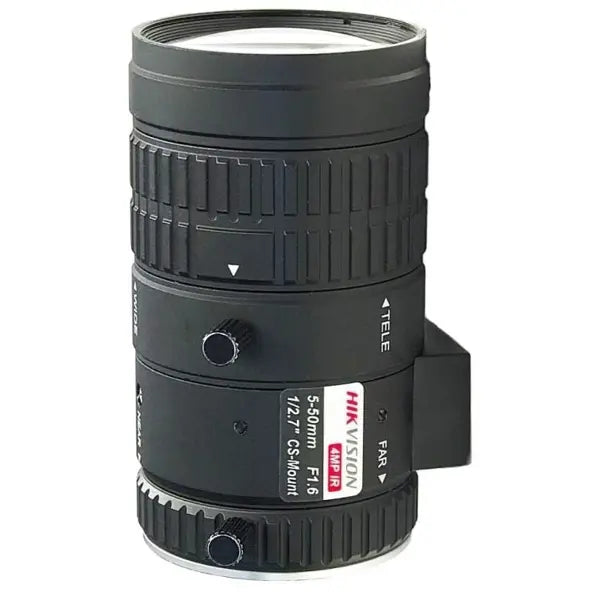

High-performance optics for professional CCTV installations. The Hikvision TV0550D-4MPIR offers a versatile 5–50 mm zoom range with DC auto-iris control, tailored for 4-megapixel cameras and CS-mount systems. Designed with IR correction, wide coverage and durable build, it is ideal for modern security setups across South Africa.
Why this lens makes a difference
Fixed lenses often limit your coverage and image clarity. This varifocal lens allows you to adjust framing on site — from wide area monitoring to tighter detail capture — while the auto-iris maintains consistent exposure under changing light conditions. For system integrators and serious users, that means better footage and fewer compromises.
Features & benefits
- Supports up to 4 MP resolution for improved image detail and clarity.
-
5-50 mm focal length — great flexibility from wide field of view to mid-telephoto.
-
DC auto-iris for real-time exposure control in varying lighting environments.
- CS-mount standard fitting – compatible with many CCTV cameras (use adapter if required).
- IR-corrected optics and wide sensor format support: covers up to Ø6.5 mm (1/2.7″) sensors.
- Compact dimensions (approx. Φ40 mm × 72.72 mm) and light weight (~177 g) – simpler to conceal or integrate.
- Operating temperature range: -20 °C to +60 °C – suited to South African indoor installations.
Technical specifications at a glance
-
Model: TV0550D-4MPIR
-
Resolution support: 4 Megapixels
-
Focal length: 5-50 mm
-
Aperture / F-number: F1.6-C
-
Mount type: CS-mount (12.5 mm flange back length)
-
Max. image format: Ø6.5 mm (1/2.7″)
-
Minimum object distance (M.O.D): 0.1 m
-
Field of view (approx.): Diagonal: 66.7°–7.7° (for 1/2.8″); Horizontal: 53.5°–6.2°; Vertical: 40.2°–4.6°
-
Dimensions: Φ40 mm × 72.72 mm
-
Weight: ≈ 177 g
-
Operating temperature: -20 °C to +60 °C
Ideal for these environments
- Retail outlets, offices and property entrances where surveillance clarity matters.
- Corridors or access-ways where variable zoom is needed from broad coverage to closer detail.
- Upgrades for existing 4 MP CCTV systems where the original lens limits performance.
- Installers needing reliable optics for commercial builds in South Africa.
Installation & integration tips
- Ensure camera sensor spec matches (1/2.7″ or 1/3″) to avoid vignetting or poor coverage.
- Set live-view feed and adjust zoom and focus for optimal framing before final locking screws.
- Use a compatible auto-iris driver or camera input to fully benefit from DC auto-iris; otherwise expect manual iris behaviour.
- Lock zoom/focus screws after calibration to avoid drift from vibration or tampering.
- For outdoor setups, mount inside a weather-proof housing and keep lens clean using a micro-fibre cloth only.
Better optics mean better footage.
If you’re serious about surveillance performance, the TV0550D-4MPIR gives you control over field-of-view, exposure and clarity. Give your system the upgrade it deserves and monitor with confidence.
Short product blurb (for collection pages): Hikvision TV0550D-4MPIR — 4MP varifocal auto-iris lens (5–50 mm, CS-mount) for professional CCTV systems.
