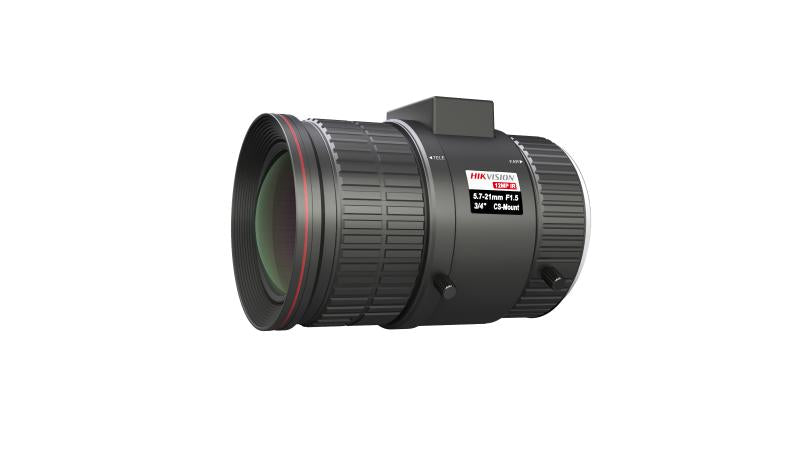

Upgrade your CCTV system with clarity and flexibility. The Hikvision HV5721D-12MPIR is a premium varifocal lens designed for 12-megapixel cameras. With a 5.7–21 mm focal range, DC auto-iris control and CS-mount compatibility, this lens delivers sharp, high-resolution footage with the ability to tailor the view on site — ideal for professional installations in South Africa.
Why choose this lens?
Fixed-focus lenses often limit what your camera can capture — either too wide or too narrow. With the HV5721D-12MPIR you get the best of both: flexible zoom, high resolution and refined exposure control. The result? Clearer images, better coverage and a lens that grows with your system.
Key features & benefits
- Supports up to 12 MP resolution — perfect for modern surveillance demands.
-
Varifocal 5.7–21 mm range — from broad views to tighter framing.
-
DC auto-iris drive — consistent exposure in varying light conditions.
-
CS-mount standard — easy integration with many cameras (use C/CS adapter if required).
-
High-quality IR corrected optics — ensures effective performance even with IR illumination.
-
Robust design: Weight approx. 524.5 g, dimensions Φ66.6 × 99.98 mm, operating temperature -20 °C to +60 °C.
Technical specifications
-
Model: HV5721D-12MPIR
-
Resolution support: Up to 12 MP
-
Focal length: 5.7–21 mm
-
Aperture / F-number: F1.5-C
-
Mount type: CS-mount (Flange back length 12.5 mm)
-
Max image format: Ø12.3 mm (3/4″)
-
Minimum object distance (M.O.D): 0.3 m
-
Dimensions: Φ66.6 mm × 99.98 mm
-
Weight: Approx. 524.5 g
-
Operating temperature: -20 °C to +60 °C
-
Focus/Zoom control: Manual focus, manual zoom, DC auto-iris.
Typical applications
- High-resolution surveillance in retail, corporate or industrial settings.
- Entrances, gates and focal points where flexible zoom is needed from wide to mid telephoto.
- Upgrading existing camera installations to unlock full sensor resolution.
Installation & setup tips
- Ensure your camera’s sensor size matches (1/2.8″ or 3/4″ compatibility) to avoid vignetting.
- Mount the camera securely, set live view, then adjust the zoom (5.7-21 mm) to frame the scene, followed by focus.
- Check the DC auto-iris input on your camera or controller to ensure the lens auto-adjusts exposure correctly.
- Use a C/CS adapter if your camera uses a C-mount rather than CS-mount to maintain proper focus distance.
- For outdoor use, install the lens inside a weather-proof housing and keep the lens clean with a lint-free cloth.
Ready for clearer detail? With the Hikvision HV5721D-12MPIR, you’re getting a lens designed for precision, clarity and flexibility. Upgrade your CCTV system today and ensure your footage is as sharp as your intentions.
Short product blurb (for collection pages): Hikvision HV5721D-12MPIR — 12 MP varifocal lens 5.7-21 mm, CS-mount, DC auto-iris. Optical upgrade for professional surveillance.
