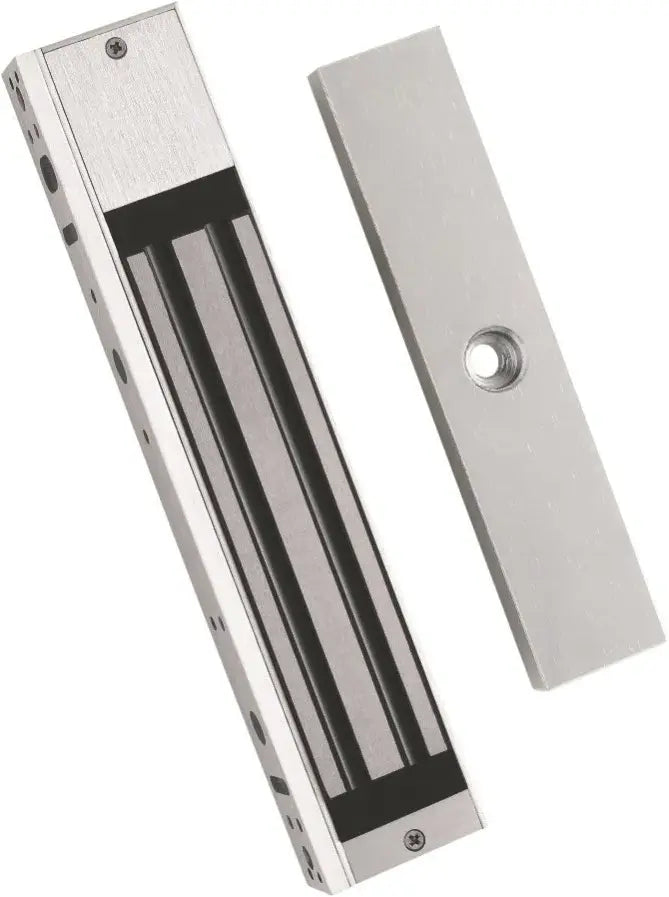

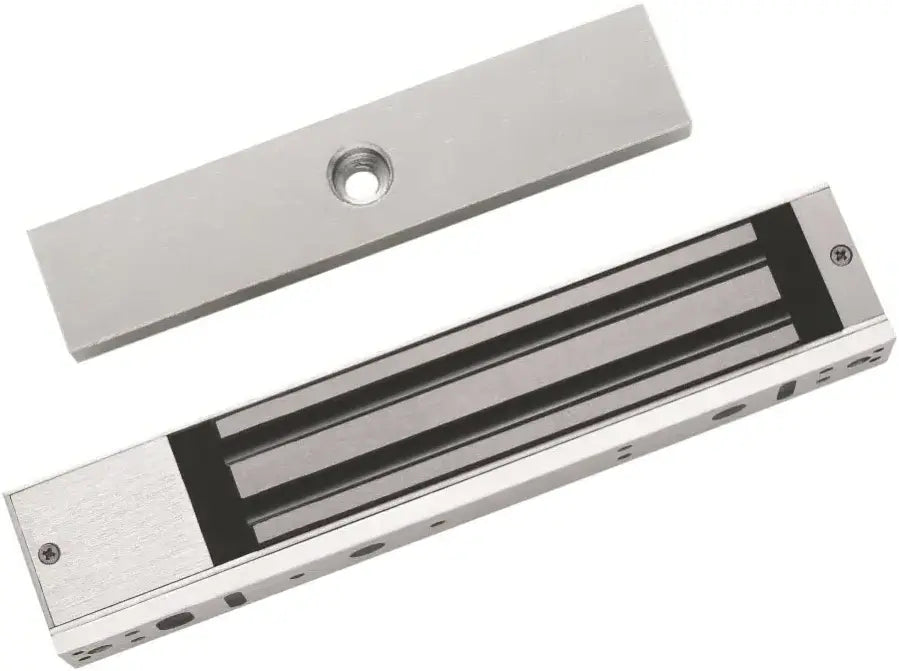

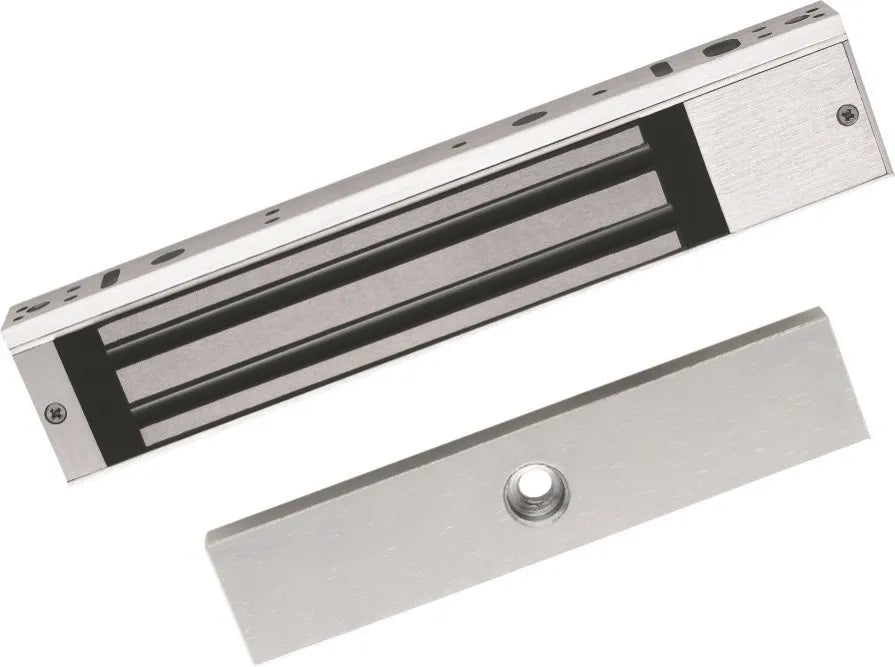

Hikvision Value Series Magnetic Lock — 280 kg (617 lb) Holding Force
The Hikvision Value Series Magnetic Lock is a durable, high-holding-force door lock engineered for reliable access control across residential and commercial sites. Supporting a static linear thrust of 280 kg (617 lb), this maglock delivers secure locking for wooden, glass, metal and fireproof doors. It can operate from 12 VDC (default) or 24 VDC power supplies and includes a clear LED indicator to show lock status. Built from abrasion-proof, electroplated materials and designed for wide environmental tolerance (-10 °C to 55 °C, up to 95% RH), the lock provides consistent performance and easy installation for single- or double-leaf doors. Unlock is by current interruption, and the unit keeps surface temperature within safe limits (≤ ambient +20 °C), making it a reliable choice for access control systems in South Africa.
Key Features & Specifications
-
Model / Series: Hikvision Value Series Magnetic Lock
-
Holding (Thrust) Capacity: Max. 280 kg (617 lb) static linear thrust
-
Power Supply: 12 VDC (default) or 24 VDC
-
Current Consumption: 12 VDC, 340 mA × 2
-
Indicator: LED status indicator — Green = working status
-
Suitable Door Types: Single leaf, double leaf, wooden door, glass door, metal door, fireproof door
-
Unlock Method: Current interruption (fail-safe)
- Materials / Finish:
- Shell: hard anodizing + electroplating
- Lock Body: eco-friendly nickel electroplating
- Armature Plate: eco-friendly zinc electroplating
- Dimensions:
-
Lock Body: 238 mm × 45 mm × 25 mm (9.4" × 1.8" × 1.0")
-
Armature Plate: 182 mm × 38 mm × 12.5 mm (7.2" × 1.5" × 0.5")
-
Weight: 2.1 kg (4.6 lb)
-
Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
-
Operating Humidity: 0 to 95% RH (relative humidity)
-
Surface Temperature: ≤ Ambient Temperature + 20 °C
Ideal Use Cases
- Secure entry for office buildings and commercial premises.
- Access control on glass doors and storefronts where discreet locking is needed.
-
Residential gate/door reinforcement for higher holding power.
-
Server rooms / IT closets requiring reliable fail-safe locking.
-
Fireproof doors and safety-rated entrances where compatibility is required.
- Retrofit projects replacing older maglocks with a robust, modern unit.
-
Retail outlets and banks needing consistent, abrasion-resistant hardware.
- Industrial sites and warehouses requiring weather-tolerant locking hardware.
Why Choose the Hikvision Value Series Magnetic Lock?
-
High holding force: 280 kg (617 lb) for dependable door security.
-
Flexible power options: Works on 12 VDC or 24 VDC to fit existing systems.
-
Clear status feedback: Built-in LED indicator shows lock operation at a glance.
-
Durable construction: Abrasion-proof, electroplated materials for long service life.
-
Wide compatibility: Suits wooden, glass, metal and fireproof doors for versatile deployment.
-
Environmental resilience: Operates from -10 °C to 55 °C and up to 95% humidity.
-
Safe operation: Unlock via current interruption and controlled surface temperature.
-
Easy retrofit: Compact dimensions and standard armature plate for simple installation.
What's in the box
1 x Value Series Magnetic Lock
