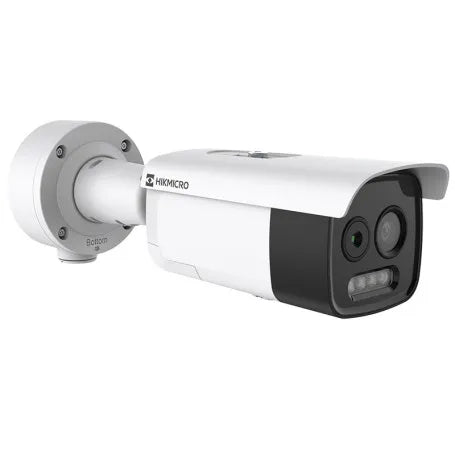

The HIKMICRO HM-TD2628-7/G1/T3A is a thermal and optical bi-spectrum network bullet camera for professional perimeter security and early fire/temperature-event detection. It combines a 256 × 192 thermal sensor with a 5MP optical channel and GUANLAN AI analytics.
Key Features
- 256 × 192 thermal resolution, 12 μm VOx UFPA
- NETD ≤25 mK thermal sensitivity
- 5MP optical resolution up to 2688 × 1944
- 6.9 mm thermal lens and 8 mm optical lens
- Smart Hybrid Light with IR, white light and smart mode
- IR and white-light range up to 60 m
- 120 dB WDR
- GUANLAN AI human and vehicle detection
- Temperature measurement from -20°C to 150°C
- Fire-point and smoking detection algorithms
- MicroSD support up to 512 GB
- 12 VDC or PoE (802.3at Class 4)
- IP67 weather resistance and IK10 vandal resistance
Smart Functions
- Line crossing
- Intrusion detection
- Region entrance
- Region exit
- Up to 21 temperature-measurement rules
- Audible and visual alarm support
What's in the Box
- 1 x HIKMICRO HM-TD2628-7/G1/T3A camera
- 1 x DS-1260ZJ junction box
- Installation hardware
- Quick-start documentation
