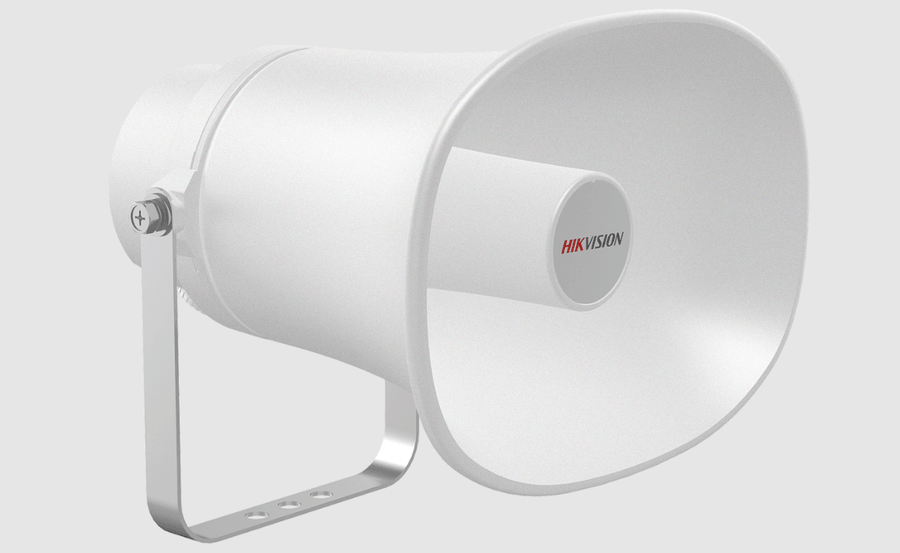

HIKVISION IP HORN SPEAKER
The HIKVISION IP HORN SPEAKER allows for easy audio broadcasting through both network and SD card sources, and allows for two-way talk between remote computers and the speaker for seamless communication. Additionally, the remote computer can also collect real-time sound from the surrounding area through the speaker.
FEATURES:
- Network broadcast: playing audio file or real-time audio stream
- SD card broadcast: playing audio files from SD card
- Supports two-way talk between remote computer and horn speaker.
- On-the spot sound collection: remote computer can collect the real-time sound around the horn speaker.
SPECS:
- Parameters
- Max Sound Pressure Level120 db
- Network Interface10/100Base-TX self-adaptive network, RJ45 interface
- Network ProtocolTCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP
- Audio ProtocolMP3, G.711a/u, G.722
-
Storage
Micro SD Card, up to 32 GB
*need SD card to play pre-recorded audio
- MIC Input0.2 Vrms
- Speaker Output8 Vrms
- Power InputPoE (IEEE 802.3af), maximum 13 W
-
Approvals
EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024,
EN 50121-4, IEC 62236-4, FCC Part 15 Subpart B Class B,
ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B,
KCC KN22 Class B, KN24, IEC/EN/UL 60950-1,
IEC/EN/UL 60950-22, IEC 60068-2-1, IEC 60068-2-2,
IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64,
IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67,
NEMA 250 Type 4X, CNS 13438
- ColorWhite
- WeightApprox. 1.5 kg (3.31 lb.)
-
Material
Casing: aluminum alloy
Rear cover: stainless steel
-
Dimension
With bracket: 242 mm × 182 mm × 338.5 mm (9.53" × 7.17\" × 13.33\")
Without bracket: 242 mm × 182 mm × 250 mm (9.53 × 7.17\" × 9.84\")"
- Power Consumption< 1 W (without sound), maximum 13 W (producing sound)
- Protection LevelIP67
- Operating Temperature-40°C to 60°C (-40°F to 140°F)
- Frequency Response300 Hz~12.5 kHz
- Coverage Pattern70° horizontal by 100° vertical
- Amplifier DescriptionBuilt-in 15 W Class-D amplifier
HIKVISION IP HORN SPEAKER
The HIKVISION IP HORN SPEAKER allows for easy audio broadcasting through both network and SD card sources, and allows for two-way talk between remote computers and the speaker for seamless communication. Additionally, the remote computer can also collect real-time sound from the surrounding area through the speaker.
FEATURES:
- Network broadcast: playing audio file or real-time audio stream
- SD card broadcast: playing audio files from SD card
- Supports two-way talk between remote computer and horn speaker.
- On-the spot sound collection: remote computer can collect the real-time sound around the horn speaker.
SPECS:
- Parameters
- Max Sound Pressure Level120 db
- Network Interface10/100Base-TX self-adaptive network, RJ45 interface
- Network ProtocolTCP, UDP, RTP, ARP, ICMP, DHCP, DNS, IGMP, HTTP
- Audio ProtocolMP3, G.711a/u, G.722
-
Storage
Micro SD Card, up to 32 GB
*need SD card to play pre-recorded audio
- MIC Input0.2 Vrms
- Speaker Output8 Vrms
- Power InputPoE (IEEE 802.3af), maximum 13 W
-
Approvals
EN 55022 Class B, EN 61000-6-1, EN 61000-6-2, EN 55024,
EN 50121-4, IEC 62236-4, FCC Part 15 Subpart B Class B,
ICES-003 Class B, VCCI Class B, C-tick AS/NZS CISPR 22 Class B,
KCC KN22 Class B, KN24, IEC/EN/UL 60950-1,
IEC/EN/UL 60950-22, IEC 60068-2-1, IEC 60068-2-2,
IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-64,
IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 60529 IP67,
NEMA 250 Type 4X, CNS 13438
- ColorWhite
- WeightApprox. 1.5 kg (3.31 lb.)
-
Material
Casing: aluminum alloy
Rear cover: stainless steel
-
Dimension
With bracket: 242 mm × 182 mm × 338.5 mm (9.53" × 7.17\" × 13.33\")
Without bracket: 242 mm × 182 mm × 250 mm (9.53 × 7.17\" × 9.84\")"
- Power Consumption< 1 W (without sound), maximum 13 W (producing sound)
- Protection LevelIP67
- Operating Temperature-40°C to 60°C (-40°F to 140°F)
- Frequency Response300 Hz~12.5 kHz
- Coverage Pattern70° horizontal by 100° vertical
- Amplifier DescriptionBuilt-in 15 W Class-D amplifier
