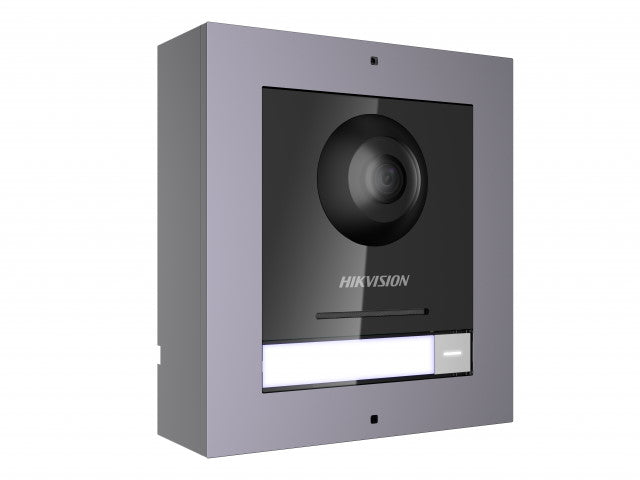

The Hikvision DS-KD8003-IME1(B)/Surface is a 2 MP modular IP video-intercom main door station supplied for surface-mount installation. It forms the primary camera, audio and call-control module in a compatible Hikvision KD8 modular entry system.
Key Features
- 2 MP HD fisheye camera
- IR supplement lighting for low-light visitor viewing
- Built-in microphone and loudspeaker
- Noise suppression and echo cancellation
- One physical call button
- Two lock-control relays
- 4 alarm inputs
- RS-485 connection for compatible Hikvision sub-modules
- 10/100 Mbps Ethernet
- Powered by 12 V DC or standard IEEE 802.3af PoE
- IP65 protection when correctly installed with the suitable surface-mount hardware
Specifications
- Model: DS-KD8003-IME1(B)/Surface
- Camera resolution: 2 MP
- Horizontal field of view: approximately 146°
- Vertical field of view: approximately 82°
- Video compression: H.264
- Working temperature: approximately -40°C to +60°C
- Power consumption: up to 5 W
System note: Indoor monitors, locks, network equipment and any optional keypad/card-reader sub-modules are separate unless specifically stated.
What's in the Box
- 1 x Hikvision DS-KD8003-IME1(B) main video-intercom module
- 1 x Compatible single-module surface-mount housing / installation frame
