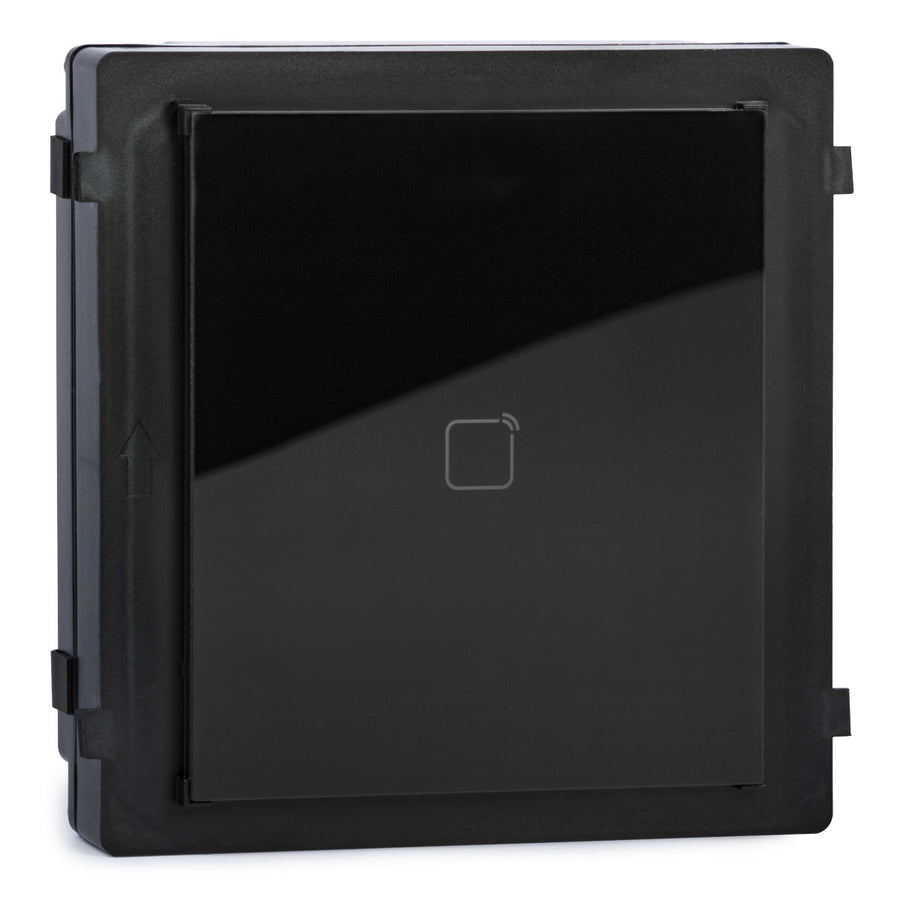

The Hikvision DS-KD-M is a MIFARE 1 card-reader sub-module for compatible Hikvision KD8 Series modular video-intercom door stations. It provides card-based door-unlock functionality when connected to a compatible main module and mounting system.
Key Features
- Built-in MIFARE 1 card reader
- 13.56 MHz card-reading frequency
- Supports door unlocking by compatible card
- Supports card issuing through a compatible Hikvision intercom system
- Backlight function
- RS-485 module input and output connections
- 8-position DIP switch for sub-module addressing
- Suitable for compatible flush- or surface-mount modular frames
- IP65-rated for outdoor installation when correctly installed
Specifications
- Model: DS-KD-M
- Card type: MIFARE
- Frequency: 13.56 MHz
- Power: 12 V DC supplied via compatible module
- Power consumption: approximately 0.8 W
- Dimensions: approximately 98.5 x 100 x 33.7 mm
- Operating temperature: -40°C to +55°C
- Net weight: approximately 160 g
Compatibility note: This is a modular sub-unit. A compatible Hikvision main door-station module and suitable mounting frame are required and are sold separately unless specifically stated.
What's in the Box
- 1 x Hikvision DS-KD-M MIFARE card-reader module
