HIKMICRO HM-TD1017-2/QW-HS121 THERMAL PRESENCE DETECTOR
The HM-TD1017-2/QW-HS121 is a compact indoor thermal-presence detector. Unlike an ordinary visible-light camera, its thermal sensor detects heat patterns for presence and occupancy monitoring in suitable indoor spaces.
KEY FEATURES
- 160 × 120 uncooled VOx thermal sensor with 17 μm pixel pitch
- Thermal sensitivity: NETD < 50 mK (25°C, F1.1)
- 1.9 mm thermal lens; 90° horizontal and 65.3° vertical field of view
- People-count exception and presence detection
- Temperature-exception alarms with manufacturer-stated measurement accuracy of ±8°C
- Configurable alarm/relay output for compatible lighting or air-conditioning controls
- 2.4 GHz Wi-Fi connectivity
- MicroSD card support up to 256 GB

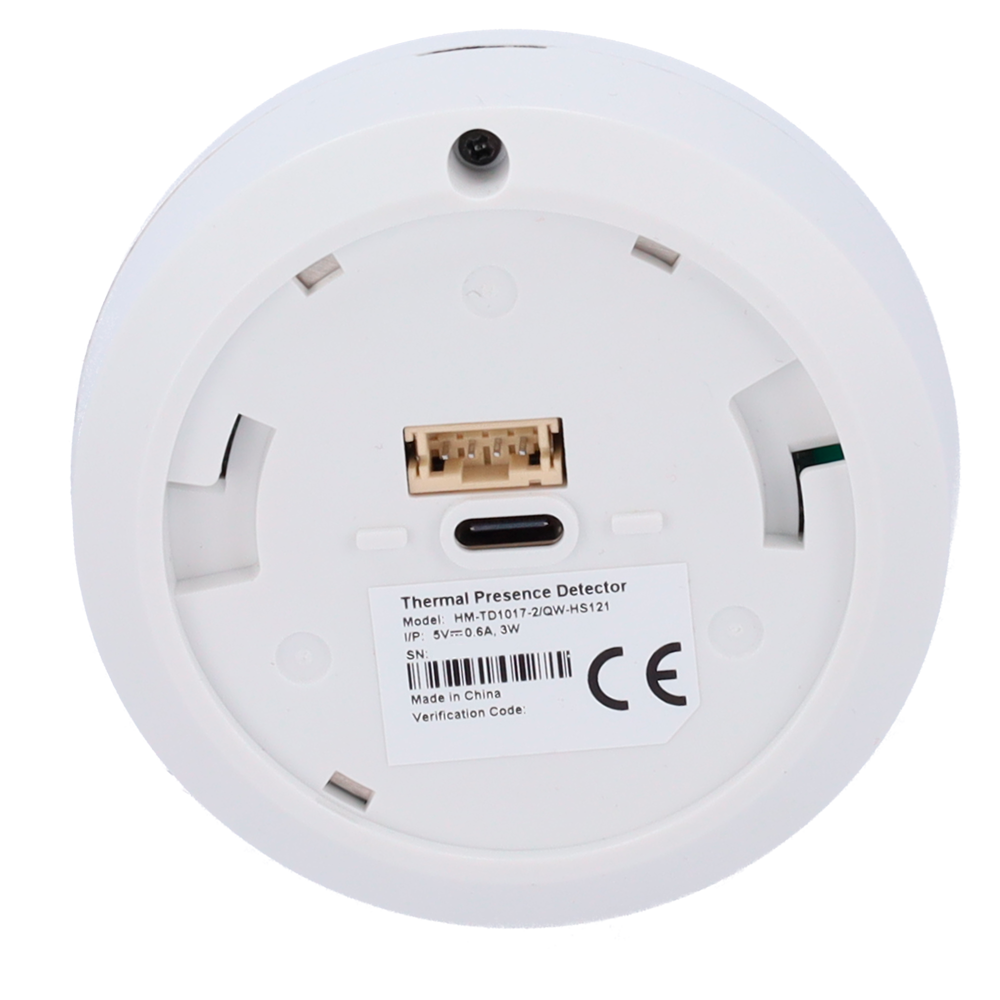

- Power: 5–16 V DC via USB Type-C
- Approximate dimensions: 70 mm diameter × 25 mm; weight 100 g
SUITABLE APPLICATIONS
Indoor meeting rooms, offices, classrooms, libraries and other spaces where occupancy monitoring is required. Professional configuration is recommended for connected relays, alerts and building systems.
WHAT'S IN THE BOX
- 1 x HM-TD1017-2/QW-HS121 thermal-presence detector
Important: Additional wiring, power supply, memory card and integration equipment are not included unless physically supplied with this unit. Confirm installation requirements before ordering.
