HIKVISION HUMAN DETECTOR HM-TD1017-1/QW-HS111(B)
Discrete Thermal Presence Detection for Smart Buildings
The HIKVISION HUMAN DETECTOR HM-TD1017-1/QW-HS111(B) is a compact thermal presence sensor engineered for privacy-friendly occupancy monitoring and automated building control. Ideal for offices, meeting rooms, healthcare spaces and retail interiors, this unit detects human presence and temperature changes without capturing identifiable video — perfect where discreet detection, energy savings and safety are priorities.
Benefits That Matter
-
Privacy-first detection: Uses thermal sensing rather than conventional video, so you can monitor occupancy without recording personal images.
-
Accurate presence counting: Detects human presence reliably across varied lighting conditions and when visual cameras struggle.
-
Energy and HVAC optimisation: Feed occupancy data into lighting and HVAC systems to cut energy use and improve comfort.
-
Temperature-aware alerts: Monitors temperature anomalies for early warning of equipment overheating or unusual heat sources.
-
Easy integration: Works with automation systems and network platforms for centralised control and event management.
Key Specifications
-
Model: HM-TD1017-1/QW-HS111(B)
-
Thermal Resolution: 160 × 120 pixels
-
Pixel Pitch: 17 µm
-
Thermal Lens: 1.9 mm (wide-angle field)
-
Field of View: Wide coverage suitable for rooms and corridors (ceiling or wall mount)
-
NETD (Sensitivity): < 50 mK (typical)
-
Temperature Measurement Range: −20 °C to +200 °C (approx., depends on configuration)
-
Power Supply: 5–16 V DC
-

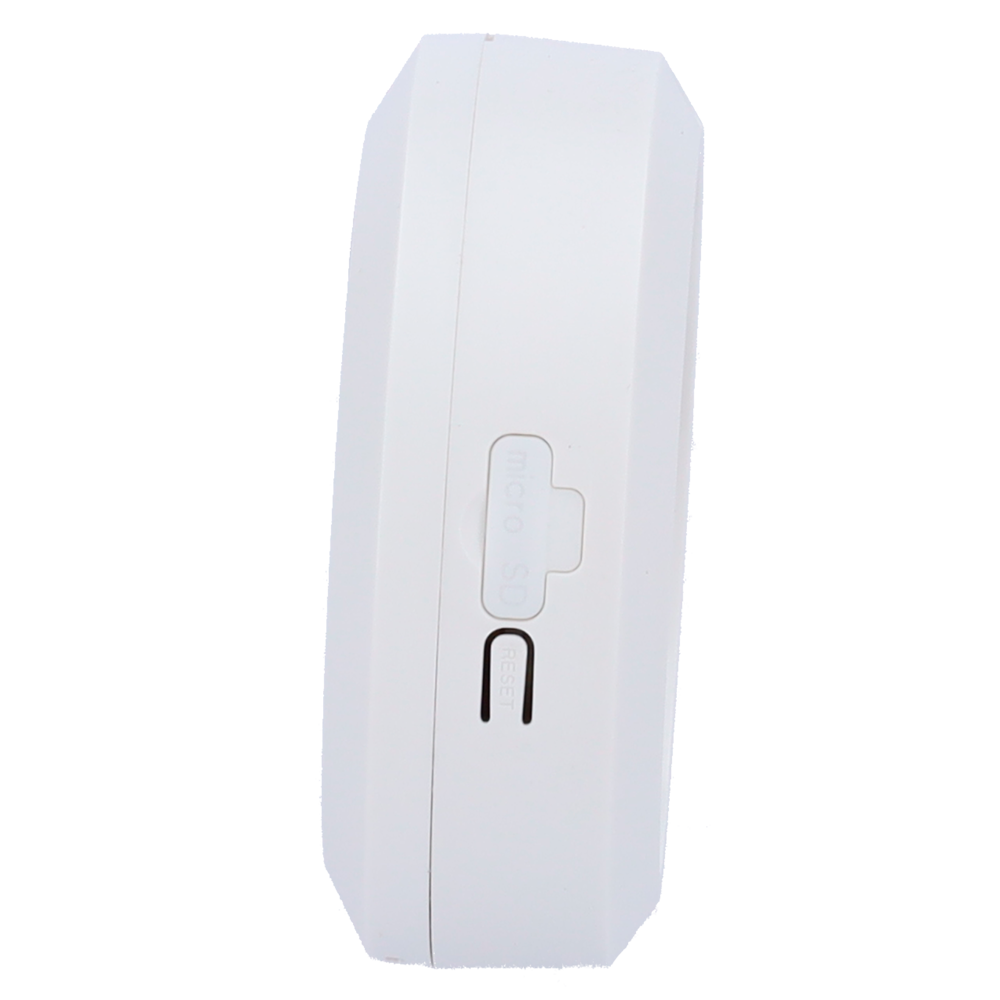

Interfaces: Wi-Fi 2.4 GHz, onboard micro-SD slot for local events, relay output for automation equipment
-
Dimensions: Compact, low-profile (approx. Ø70 mm × 25 mm)
-
Weight: Lightweight — easy ceiling or wall mounting
Typical Applications
Perfect for places where privacy and accurate occupancy data are needed: meeting rooms, boardrooms, elder-care facilities, classrooms, libraries and smart offices. Also useful for energy management in retail spaces and for non-intrusive presence detection in healthcare environments.
Installation & Setup Tips
- Mount at ceiling height or high on a wall to maximise coverage of the monitored zone (typical mounting: 2.5 m–3.5 m for indoor rooms).
- Aim the sensor to avoid direct sun, hot machinery or reflective surfaces that could affect thermal readings.
- Use the relay output to directly control lighting circuits or HVAC triggers for rapid automation response.
- Connect to your building network and configure occupancy thresholds and temperature alarm rules during commissioning.
Common Questions
-
Q: Does this record video?
A: No — this device uses thermal sensing and does not capture recognisable video, making it suitable for privacy-sensitive locations.
-
Q: Can it trigger building systems?
A: Yes — the detector supports relay outputs and network integration so it can trigger lighting, HVAC or alarm systems based on presence or temperature rules.
-
Q: What environment is it best suited for?
A: Indoor environments such as offices, meeting rooms, classrooms, clinics and retail areas where discreet occupancy detection is required.
Start Using Smarter, Private Occupancy Detection
Bring privacy-conscious intelligence to your building with the HIKVISION HUMAN DETECTOR HM-TD1017-1/QW-HS111(B). It gives you accurate occupancy data, useful temperature alerts and straightforward integration for automation — all without intrusive video. ✅ Available at NeonSales.co.za — upgrade your building control and safety today.
