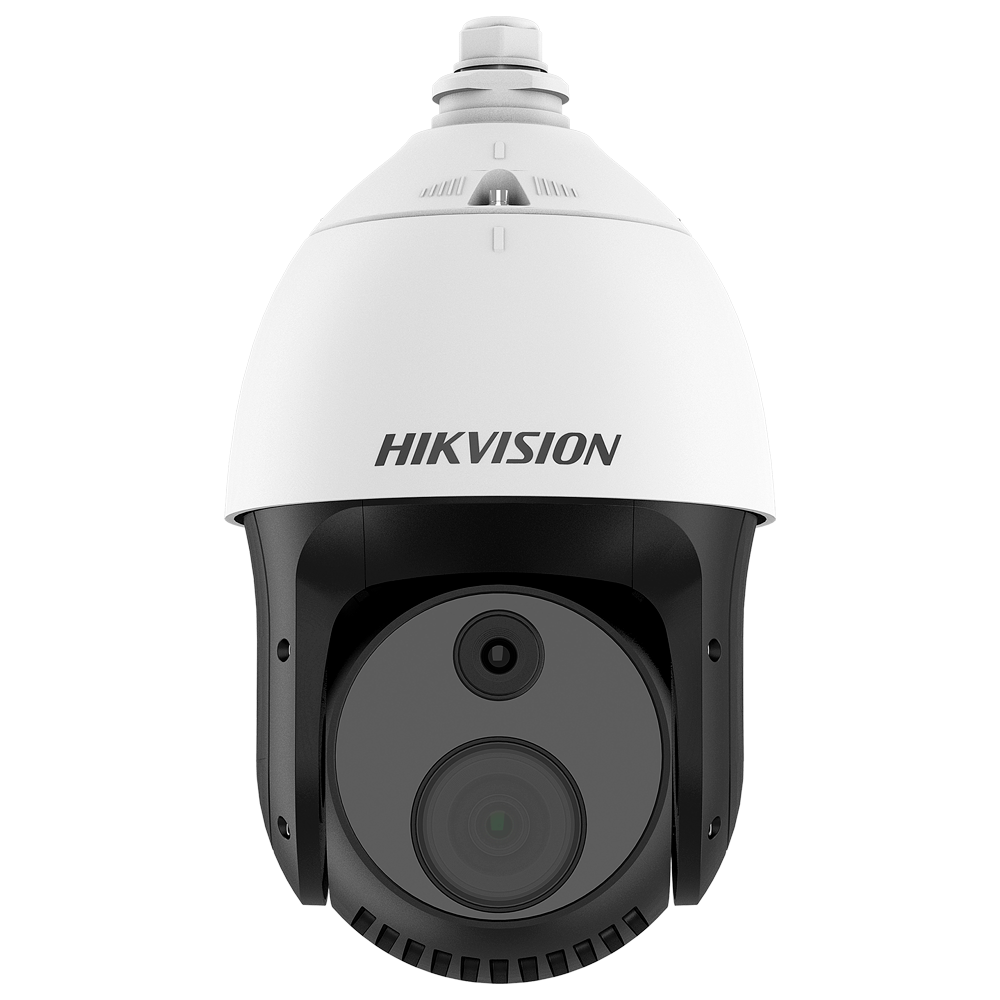

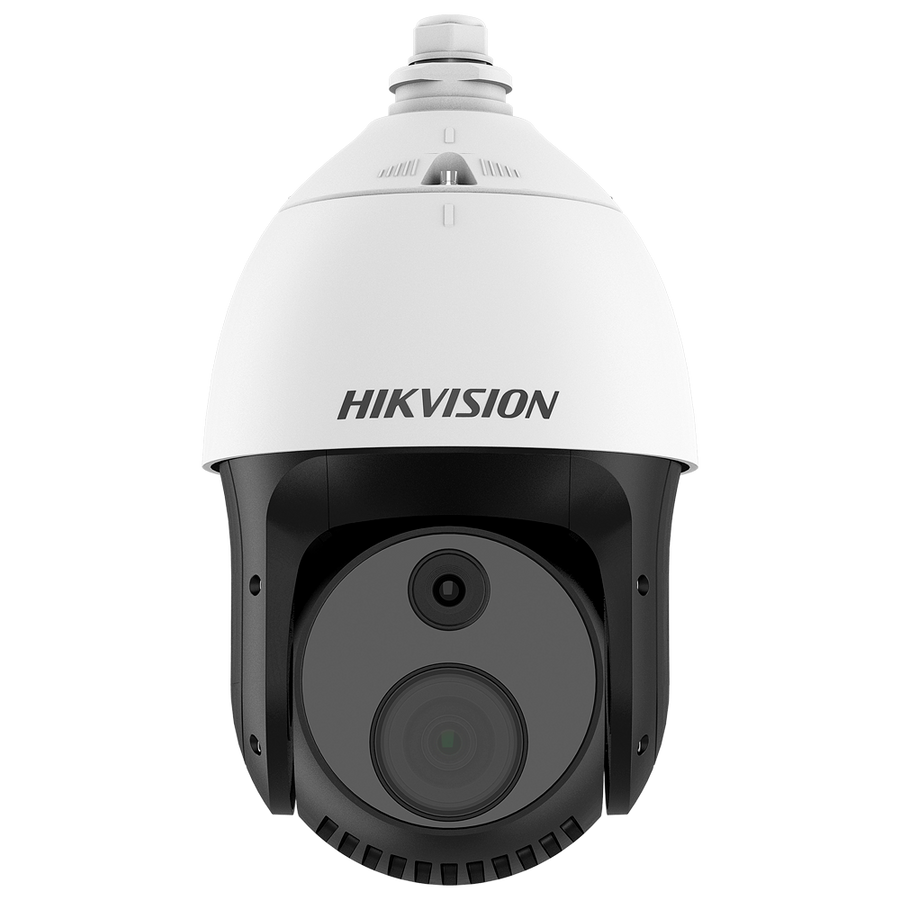

HIKVISION HEATPRO PTZ 10MM DS-2TD4228T-7/S2
Advanced Dual-Spectrum PTZ Thermal & Optical Surveillance
The HIKVISION HEATPRO PTZ 10MM DS-2TD4228T-7/S2 combines high-precision thermal imaging with a powerful optical zoom module in a pan-tilt-zoom form factor — designed for large-scale security installations, industrial sites and perimeter protection in South Africa. With its 10 mm thermal lens, full PTZ functionality and intelligent analytics, it offers top-tier detection, visual verification and proactive alerts in one reliable unit.
Why This PTZ Thermal Camera Works for You
From expansive estates to logistics hubs and critical infrastructure, this model delivers both thermal signature detection and high-definition optical verification. Its smart tracking, temperature measurement, and dual-channel imaging mean you’re ready for intrusion, fire-risk and situational monitoring, day or night, rain or shine.
-
Dual-Spectrum Imaging: Thermal channel for heat-signature detection plus optical channel for full-colour visual clarity.
-
Thermal Module: 256 × 192 VOx uncooled detector with 12 µm pixel pitch, thermal lens 10 mm, NETD ≤ 35 mK — ideal for long-range detection.
-
Optical Module: 4 MP (2688 × 1520) CMOS with varifocal zoom (4.8–153 mm, 32×) and WDR 120 dB — ensures sharp visuals at a distance.
-
Pan-Tilt-Zoom Performance: 360° continuous pan; tilt -5° to +90° with auto-flip; preset, patrol and pattern scanning support.
-
Smart Analytics: Human/vehicle classification, line crossing, intrusion, region entry/exit, temperature exception alarms and fire detection.
-
Rugged Design: Built for harsh outdoor conditions, suitable for South Africa’s environment, utilising flexible power and network support.
Key Specifications
-
Thermal Detector: 256 × 192 resolution, 12 µm pixel pitch
-
Thermal Lens: 10 mm focal length
-
Response Waveband: 8 µm – 14 µm
-
NETD: ≤ 35 mK (@25 °C, F1.0)
-
Optical Sensor: 1/2.8″ Progressive Scan CMOS
-
Optical Resolution: 2688 × 1520 (4 MP)
-
Optical Lens: 4.8 – 153 mm (32× zoom)
-
Minimum Illumination: Colour 0.05 Lux @ F1.2; B/W 0.01 Lux @ F1.2
-
Temperature Range: –20 °C to +550 °C
-
Temperature Accuracy: ±2 °C or ±2% (whichever greater)
-
Pan Movement: 360° continuous
-
Tilt Movement: -5° to +90°, auto-flip
-
Power Consumption: Max approx. 30 W
-
Operating Temperature: -40 °C to +65 °C
Applications & Use Cases
This model is perfect for wide-area monitoring, infrastructure sites, perimeters, airports and large commercial estates. It provides long-range thermal detection combined with visual confirmation, enabling proactive responses to intrusion, equipment overheating or fire-risk events.
Installation Tips for South African Sites
- Mount at a height of 3 m – 8 m depending on required coverage and view angle.
- Ensure clear, unobstructed sight lines for both thermal and optical channels.
- Set patrol routes and presets that cover critical zones and vulnerable access points.
- Configure temperature-based alarm rules and integrate with NVR/ONVIF systems for seamless event linkage.
Elevate Your Security Coverage
Choose the HIKVISION HEATPRO PTZ 10MM DS-2TD4228T-7/S2 for reliable dual-spectrum surveillance, long-range detection and intelligent analytics — built to perform under South African conditions. ✅ Available now at NeonSales.co.za — upgrade your monitoring infrastructure today.
