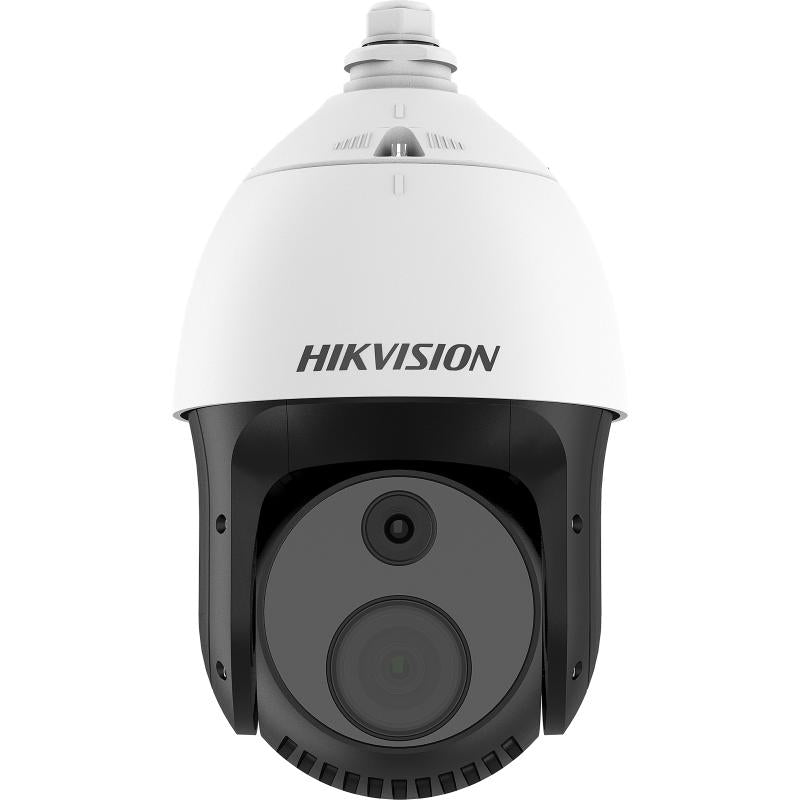

Premium dual-spectrum thermal imaging for high-end perimeter and critical infrastructure security. The Hikvision DS-2TD4228-7/S2 is a high-performance PTZ camera that combines thermal and optical imaging with up to 800 m effective detection range, 30× optical zoom and advanced analytics. Built for demanding South African installations, it delivers reliable detection, tracking and monitoring even in total darkness or harsh environments.
Why this speed dome stands out
Security threats don’t wait for daylight. With the DS-2TD4228-7/S2, you get both thermal and visible-light imagery in a single housing—so you can detect heat signatures at long range and then zoom in with optical clarity for identification. This dual-spectrum design gives you both breadth and detail in one streamlined system.
Key features & benefits
-
Thermal imaging camera: 384 × 288 VOx sensor, 2.3–4.6 mm thermal lens for long-range detection.
-
30× optical zoom visible-light camera: 8 MP sensor with 5.5–165 mm lens for sharp detail at range.
-
Dual-spectrum fusion: Simultaneously analyses thermal and optical views for superior detection and tracking.
-
Excellent long-range performance: Effective thermal detection up to 800 m and visible identification beyond 500 m (typical values).
-
Full pan/tilt/zoom: 360° continuous pan, tilt from –15° to 90°, and high-speed movement for wide area coverage.
-
Advanced analytics: Intrusion detection, line crossing, loitering, face capture and other smart features built-in.
-
Professional build for challenging environments: IP67 / IP66 weather rating, built-in low-temperature heater, vandal-resistant housing.
Technical specifications (selection)
-
Model: DS-2TD4228-7/S2
-
Thermal sensor: 384 × 288 resolution, VOx uncooled detector
-
Thermal lens: 2.3–4.6 mm, field of view approx. 24°-12°
-
Visible sensor: 8 MP progressive scan
-
Visible camera lens: 5.5–165 mm (30× zoom)
-
Pan/tilt range: 360° pan continuous, –15° to +90° tilt
-
Weather/spec rating: IP67 / IK10 vandal resistance
-
Network interfaces: Gigabit Ethernet, PoE+ support, dual-streaming
-
Operating temperature: –40 °C to +65 °C with built-in heater
Ideal applications
- Perimeter security for manufacturing, mining or utilities in South Africa
- Airport and critical infrastructure surveillance where visibility is compromised
- Wildlife reserves or farm boundaries requiring long-range detection day or night
- High-end commercial sites needing integrated thermal and visual monitoring
Installation & deployment tips
- Mount at height with clear line of sight and minimal obstruction for optimum thermal and optical range.
- Ensure appropriate network bandwidth and PoE+ power supply for full PTZ performance and streaming.
- Configure analytics zones carefully based on your environment to avoid false alarms (e.g., heat sources, vegetation).
Choose unmatched clarity and detection power. The Hikvision DS-2TD4228-7/S2 dual-spectrum speed dome camera combines deep thermal reach with sharp visible detail—giving you the performance you need when it matters most.
Short product blurb (for collection pages): Hikvision DS-2TD4228-7/S2 dual-spectrum thermal & optical speed dome camera, long-range detection up to 800 m, 30× zoom, IP67 build. Professional perimeter solution.
