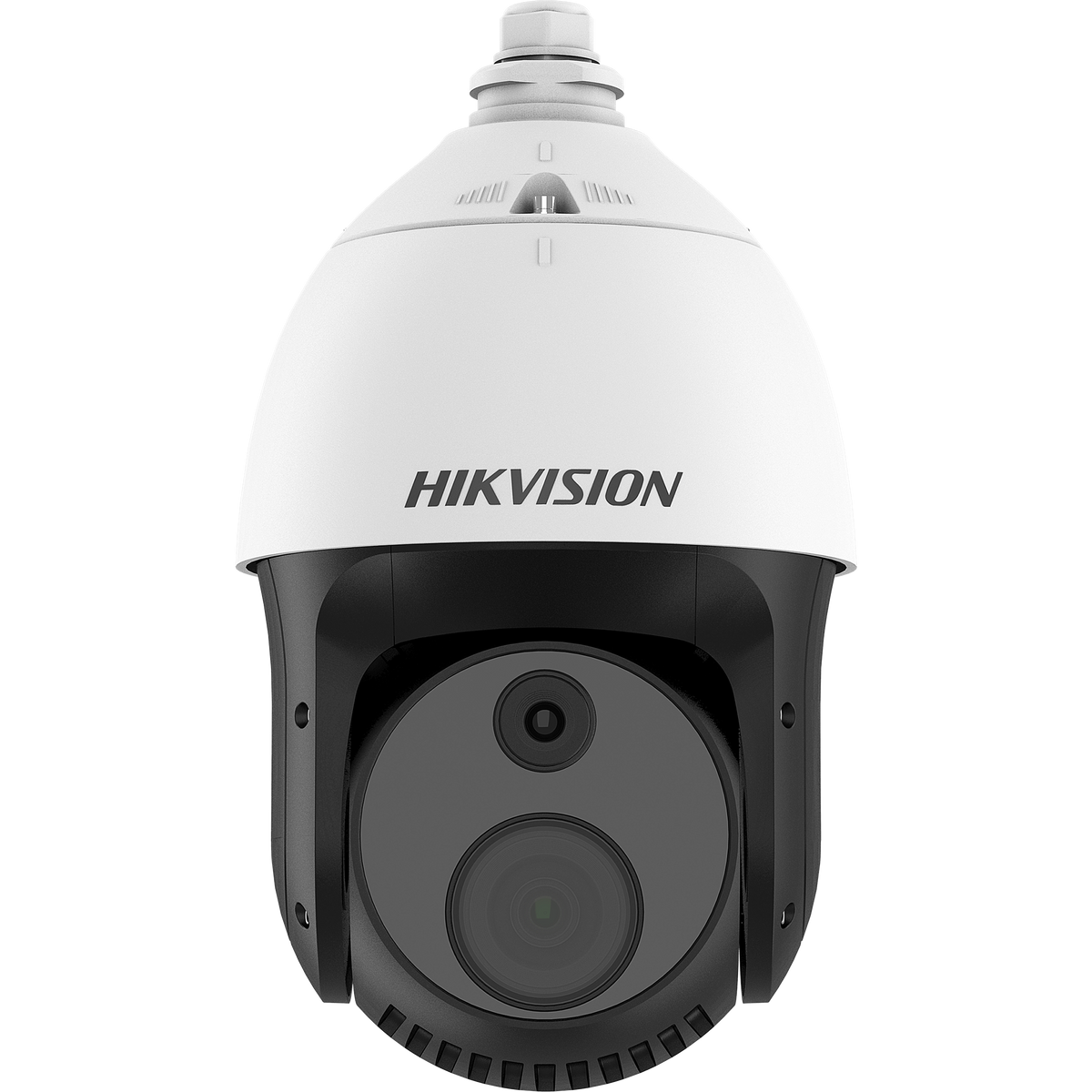

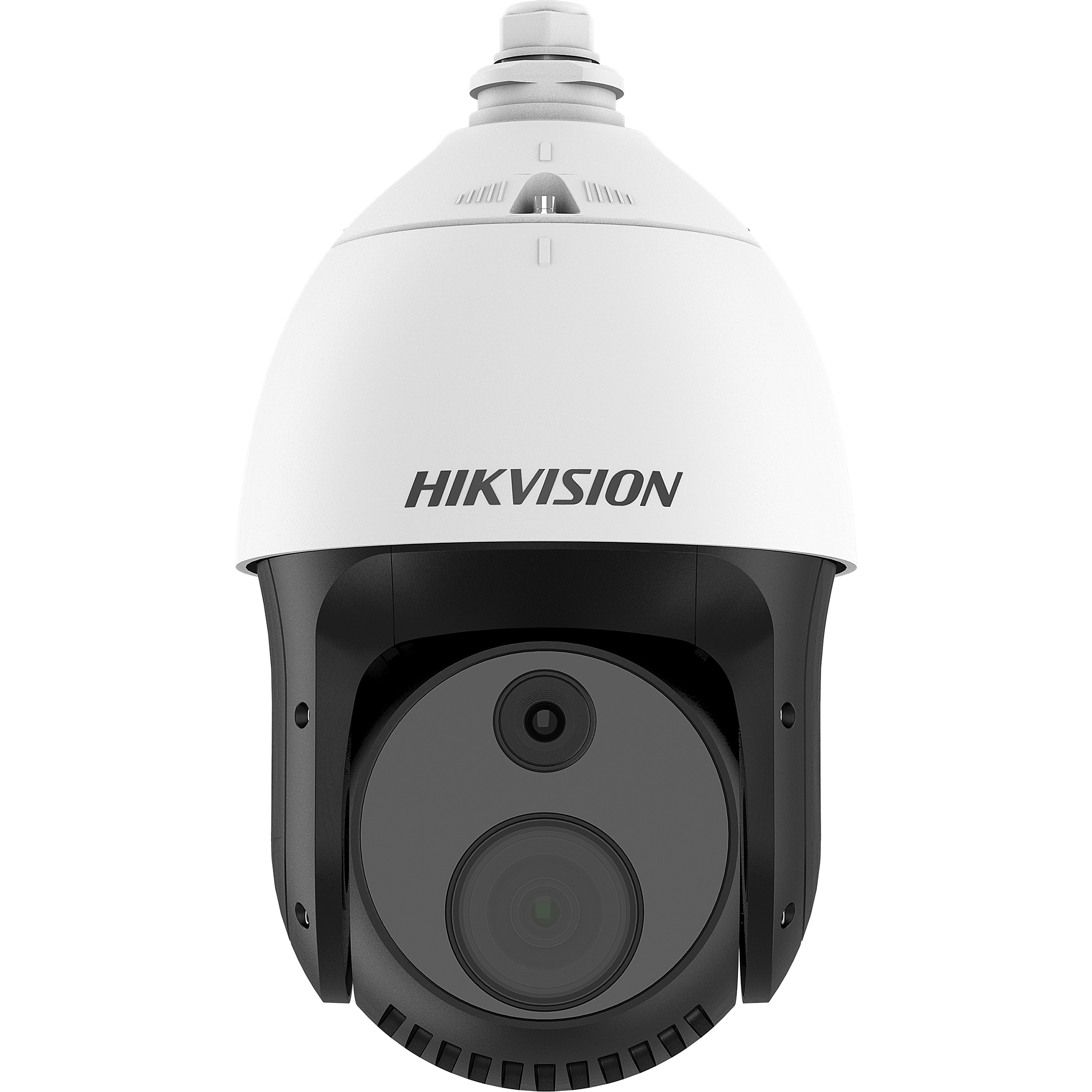

HIKVISION HEATPRO PTZ 10MM DS-2TD4228T-10/S2
Ultimate Bi-Spectrum PTZ Thermal & Optical Surveillance
The HIKVISION HEATPRO PTZ 10MM DS-2TD4228T-10/S2 delivers advanced dual-spectrum thermal and optical monitoring in a powerful pan-tilt-zoom form-factor. With a 10 mm thermal lens and high-definition optical module, this speed-dome camera is ideal for wide-area perimeter protection, industrial sites, and any South African environment where long-range precision and smart detection matter.
Why this PTZ Thermal Camera stands out
Designed for demanding applications, this unit brings real-time intelligence via smart thermal analytics, human/vehicle detection, temperature monitoring, and full PTZ control. Whether you’re watching large estates, logistics yards or mission-critical infrastructure, this model gives both coverage and clarity so you can react fast and with confidence.
-
Dual-Spectrum Imaging: Thermal channel for heat-signature detection plus optical channel for visual detail and identification.
-
10 mm Thermal Lens: VOx 256 × 192 thermal detector with high sensitivity (≤ 35 mK) for extended detection range and thermal accuracy.
-
4 MP Optical Module: High-resolution optical sensor, varifocal lens (4.8–153 mm), enabling zoomed inspection and clear visuals.
-
Smart PTZ Functionality: 360° continuous pan, tilt from –5° to +90°, presets, pattern scans, auto patrols — full control of your field of view.
-
Intelligent Analytics: Supports line crossing, intrusion, region entry/exit, temperature rules, human/vehicle classification for proactive monitoring.
-
Rugged Outdoor Design: Built for tough environments — ideal for South African outdoor installations exposed to sun, dust and rain.
Key Specifications
-
Thermal Detector: 256 × 192 resolution, pixel pitch 12 µm
-
Thermal Lens: 10 mm focal length
-
NETD (Thermal Sensitivity): ≤ 35 mK (@ 25 °C, F1.0)
-
Optical Sensor: 1/2.8″ Progressive Scan CMOS, 4 MP (2688 × 1520)
-
Optical Lens: 4.8-153 mm varifocal
-
Thermal Temp Range: –20 °C to +550 °C, accuracy ±2 °C or ±2% (whichever greater)
-
PTZ Movement: Pan: 360° continuous; Tilt: –5° to +90° (auto flip)
-
Power Consumption: Max ~30 W
-
Operating Temperature: –40 °C to +65 °C
Applications & Use Cases
Ideal for large-scale outdoor monitoring such as fences, airports, ports, power stations and farming estates. Use it where you need wide coverage, long-distance thermal detection plus zoomed visual detail — ensuring no intrusion or temperature event goes unnoticed.
Installation & Setup Tips
- Mount the unit at a height of 3 m to 8 m depending on coverage range required.
- Configure PTZ patrol routes and preset positions to cover critical zones and unattended areas.
- Use the temperature rule-sets for early fire detection or equipment overheating monitoring.
- Ensure clear line-of-sight and minimise reflective surfaces in thermal view to maintain accurate readings.
Elevate Your Surveillance Capabilities
Upgrade to the HIKVISION HEATPRO PTZ 10MM DS-2TD4228T-10/S2 for professional-grade detection, smart analytics and full-range monitoring. ✅ Available now at NeonSales.co.za — secure your site with superior thermal technology.
What's in the Box
- 1 x HIKVISION HEATPRO PTZ 10MM DS-2TD4228T-10/S2
