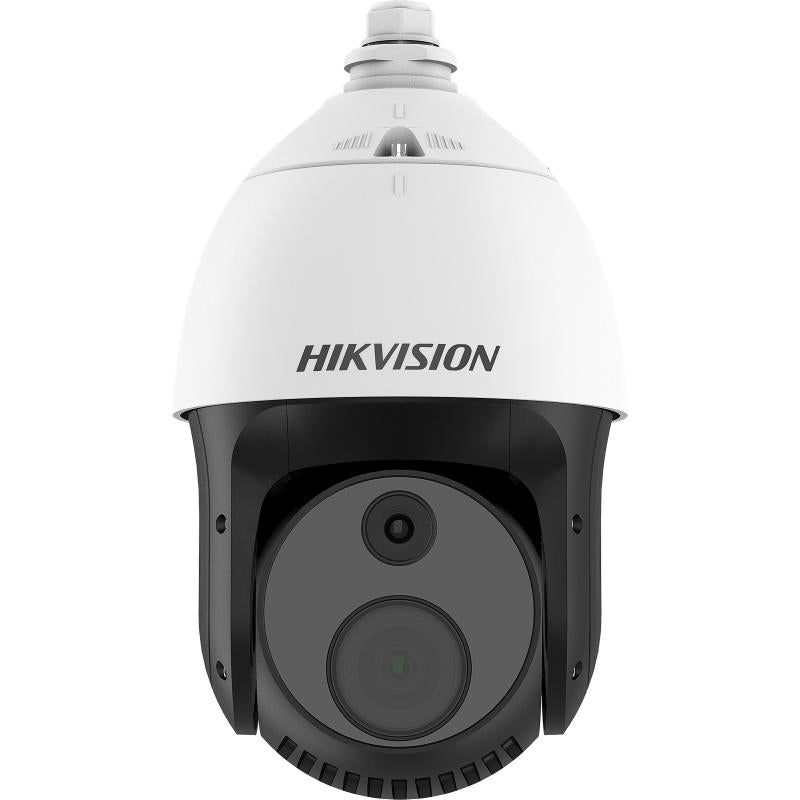

Professional long-range dual-spectrum surveillance built for precision and reliability. The Hikvision DS-2TD4228-10/S2 is a high-performance PTZ camera that integrates both thermal and optical imaging into a single intelligent dome system. Designed for demanding outdoor and perimeter security, it provides accurate detection and identification in complete darkness, fog, or smoke — perfect for South African industrial, mining, and commercial environments.
All-in-one monitoring power
This camera combines a thermal imaging module for heat-based detection with a high-resolution optical module for clear visual confirmation. The dual-spectrum technology allows operators to detect, track, and identify potential threats with precision. With advanced image fusion, 30× optical zoom, and built-in analytics, it’s ideal for round-the-clock protection of large-scale installations.
Key features & benefits
-
Dual-spectrum integration: Combines thermal and optical sensors in one unit for both detection and visual identification.
-
Thermal module: 384 × 288 uncooled VOx detector with a 10 mm lens, offering effective long-range thermal detection of up to ±1 km.
-
Optical module: 8 MP (3840 × 2160) resolution with a 5.5–165 mm focal range and 30× optical zoom for sharp visible-light detail.
-
Powerful PTZ control: 360° endless pan and –15° to 90° tilt for flexible monitoring and area coverage.
-
Smart analytics: Supports human and vehicle detection, line-crossing, intrusion, and region-based alarms for intelligent event response.
-
Exceptional environmental tolerance: IP66 weather-rated housing, built-in heater, and surge protection ensure performance from –40 °C to +65 °C.
-
Thermal accuracy: Temperature measurement range of –20 °C to 150 °C with ±8 °C accuracy for fire or hotspot detection.
-
Wide compatibility: Supports ONVIF and H.265/H.264 streaming for seamless integration with NVRs and VMS platforms.
Technical specifications
-
Model: DS-2TD4228-10/S2
-
Thermal sensor: 384 × 288 VOx uncooled detector
-
Thermal lens: 10 mm fixed, F1.0 aperture
-
Optical sensor: 1/1.8″ CMOS, 8 MP (3840 × 2160)
-
Optical lens: 5.5–165 mm, 30× optical zoom
-
Pan range: 360° continuous rotation
-
Tilt range: –15° to 90° with auto-flip
-
Video compression: H.265, H.264, MJPEG
-
Smart functions: Line-crossing, intrusion, region entrance/exit, temperature exception
-
Ingress protection: IP66 weatherproof rating
-
Power: 24 VAC or Hi-PoE
-
Operating temperature: –40 °C to +65 °C (with heater)
-
Dimensions: Approx. 220 mm × 353 mm (Ø×H)
-
Weight: Approx. 5.5 kg
Ideal applications
- Perimeter protection for industrial plants, warehouses, and logistics yards
- Long-range surveillance for critical infrastructure, mining and energy sites
- Airport, seaport and transportation monitoring where visual and thermal fusion is required
- Perimeter and environmental monitoring in low-visibility or extreme-temperature areas
Installation & setup recommendations
- Mount the dome on a stable structure using a Hikvision PTZ bracket to ensure vibration-free operation.
- Provide a clear line of sight for both thermal and optical modules to maximise detection range.
- Use a PoE+ or 24 V AC power source as specified for full pan/tilt and heating performance.
- Integrate with HikCentral or NVRs to configure temperature alarms, event triggers and tracking automation.
Engineered for precision and reliability. The Hikvision DS-2TD4228-10/S2 delivers world-class thermal imaging and high-definition optical clarity in one smart speed dome. Designed for high-security installations in South Africa, it ensures accurate, uninterrupted performance under all conditions.
Short product blurb (for collection pages): Hikvision DS-2TD4228-10/S2 — Dual-spectrum thermal & optical speed dome with 8 MP sensor, 30× zoom, 10 mm thermal lens, and IP66 weather protection.
