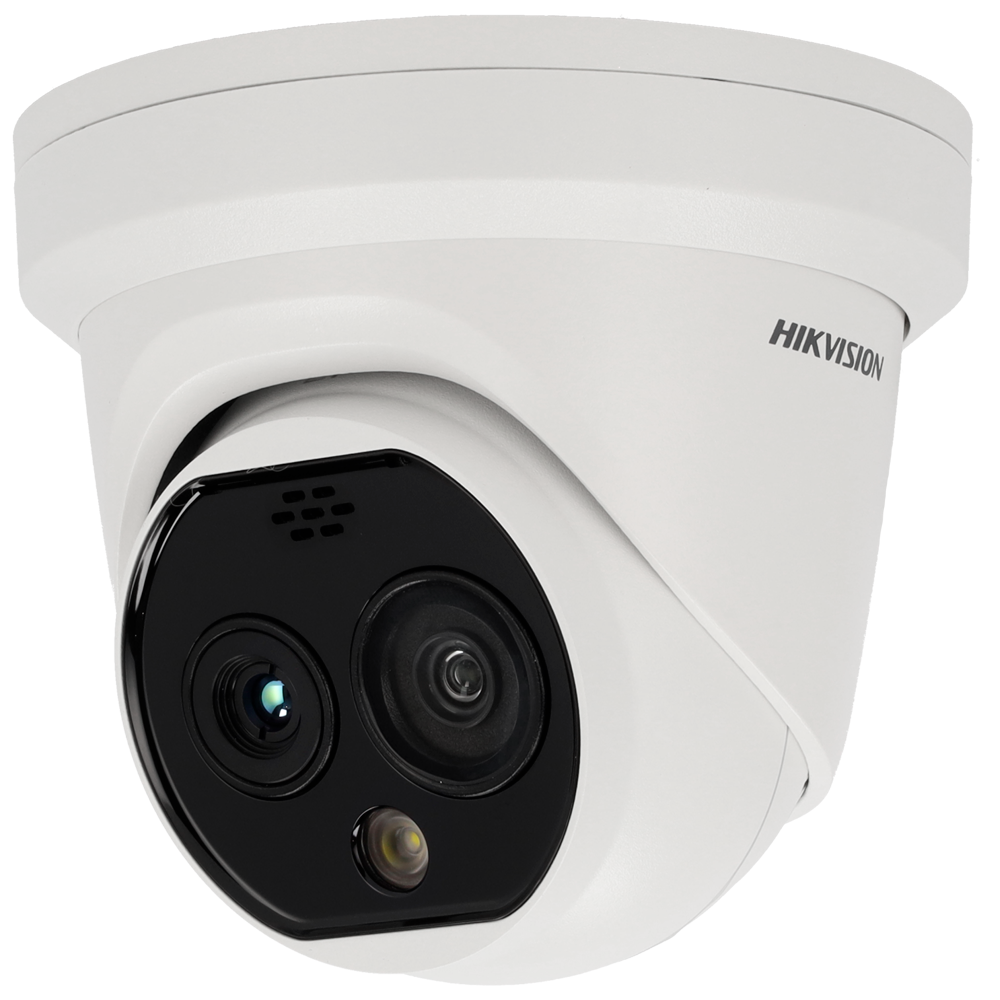

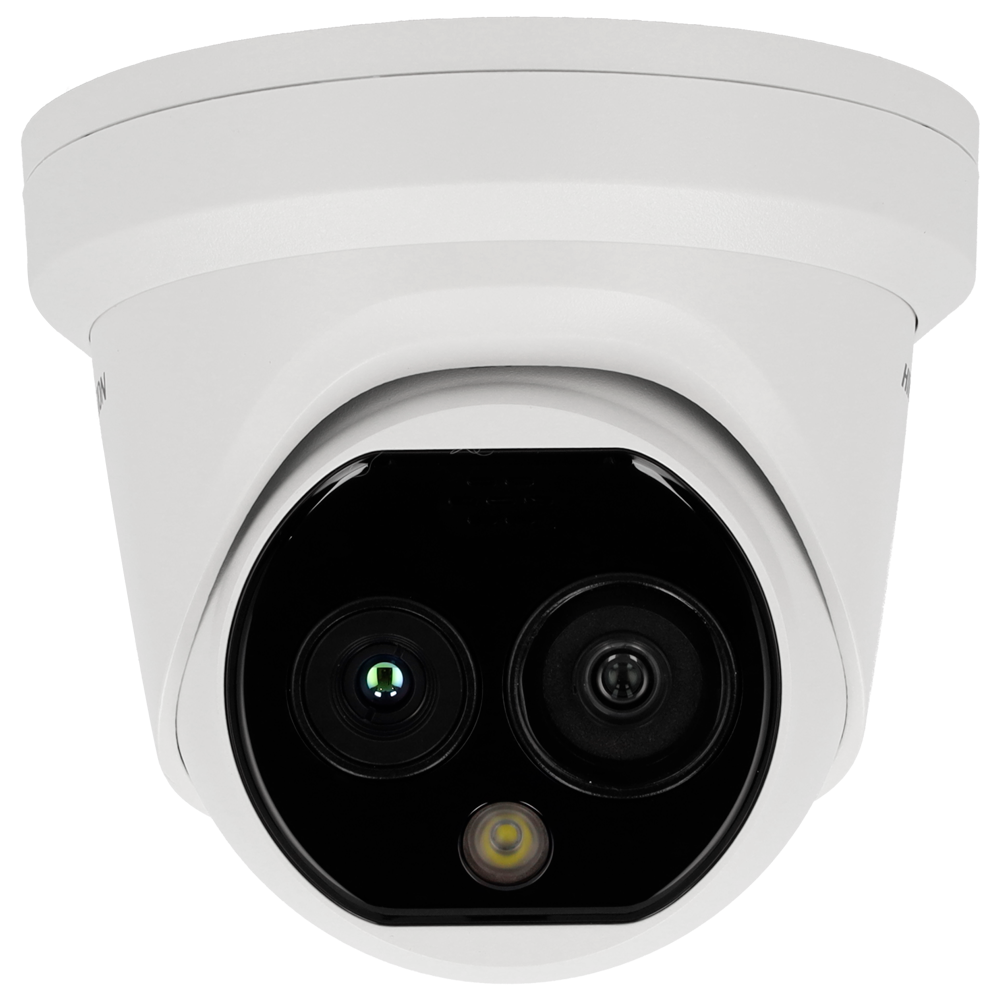

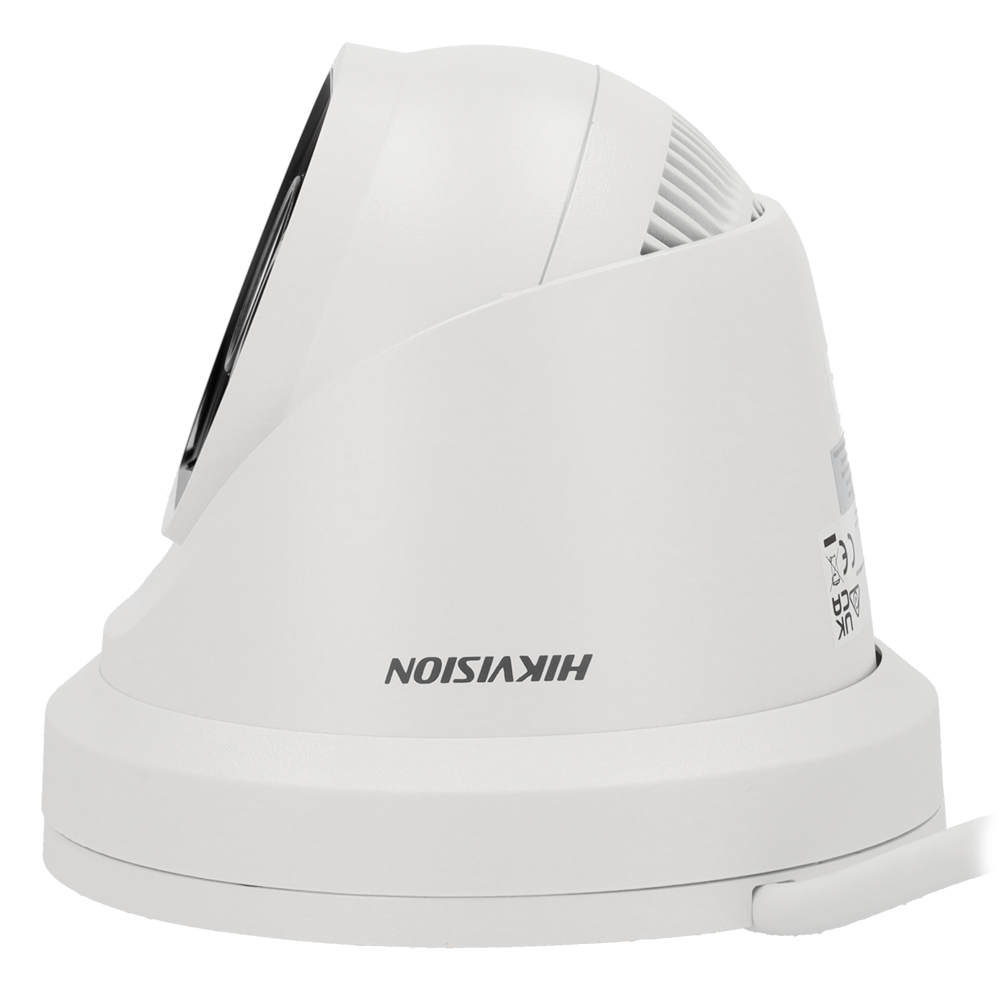

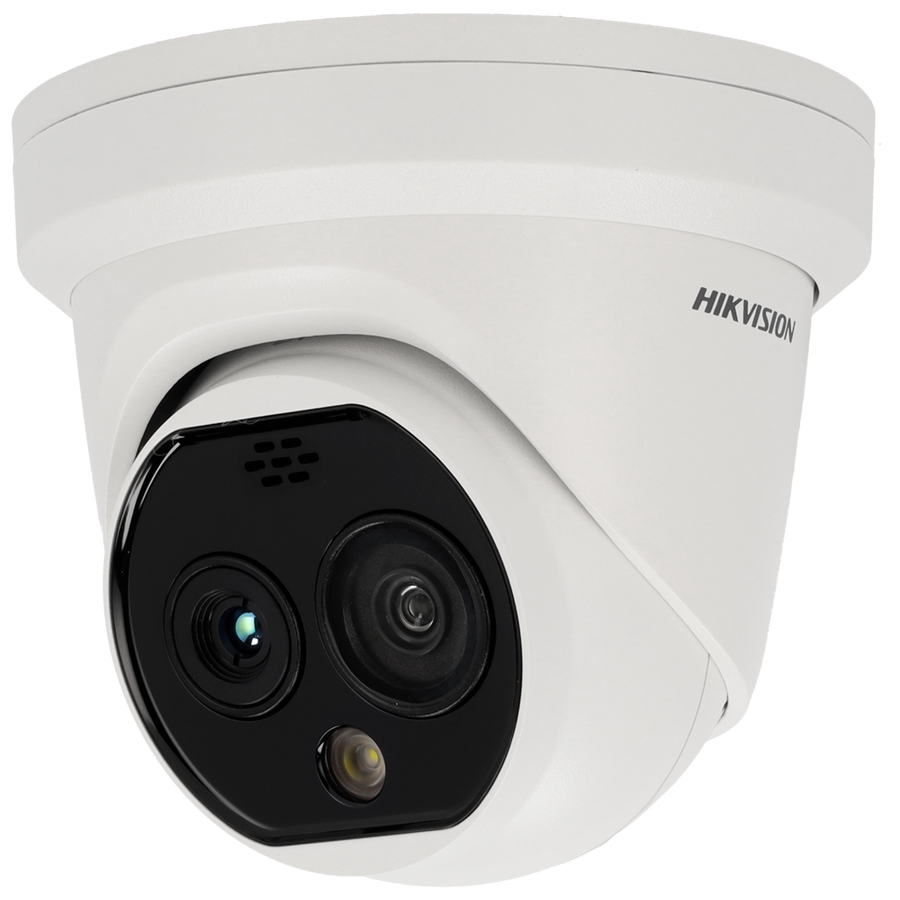

HIKVISION HEATPRO DOME 7MM DS-2TD1228T-3/QA(B)
Compact Bi-Spectrum Dome for Accurate Thermal & Optical Monitoring
The HIKVISION HEATPRO DOME 7MM DS-2TD1228T-3/QA(B) combines thermal sensing with a high-definition optical module to deliver reliable perimeter and asset protection. Built for 24/7 operation, this compact dome is ideal where discreet installation and dependable thermal detection are required — from factories and warehouses to estates and infrastructure sites across South Africa.
Why the HeatPro Dome Works for Your Site
This model overlays thermal imagery onto optical video for fast detection and clear visual verification. It supports temperature-based alarms, human/vehicle classification and multiple VCA rules to reduce false alerts and give you actionable event notifications. The 7 mm thermal lens provides a balanced field-of-view for medium-range monitoring while the 4 MP optical channel captures identification detail when you need it.
-
Dual-spectrum imaging: Thermal channel for heat signature detection plus optical channel for visual confirmation.
-
Thermal module: 256 × 192 VOx uncooled detector with 12 µm pixel pitch and NETD < 40 mK for sensitive heat detection.
-
Thermal lens: 6.9 mm focal length (7 mm class) offering a clear medium-range thermal field of view.
-
Optical module: 4 MP (2688 × 1520) 1/2.7″ Progressive Scan CMOS with 6.4 mm optical focal length and 120 dB WDR.
-
Temperature measurement: Temperature rule support (points/areas/line) with a range of –20 °C to +150 °C and temperature alarm capabilities.
-
Smart analytics: Human/vehicle classification, line crossing, intrusion, region entry/exit and temperature exception rules to cut down on false positives.
-
Rugged build: IP67 rating with TVS 6000V lightning protection and wide operating temperature for outdoor use.
-
Local storage & integration: microSD slot (up to 256 GB), ONVIF support and common video/network protocols for easy VMS/NVR integration.
Key Specifications
-
Thermal detector: 256 × 192 (VOx), 12 µm pixel pitch
-
Thermal NETD: < 40 mK (25 °C, F1.1)
-
Thermal focal length / IFOV: 6.9 mm; IFOV 1.74 mrad
-
Thermal field of view: ~24.9° × 18.7° (H × V)
-
Optical sensor: 1/2.7″ Progressive Scan CMOS, 2688 × 1520 (4 MP)
-
Optical focal length: 6.4 mm — Field of view ~53.0° (H) × 28.0° (V)
-
Minimum illumination (optical): 0.0089 Lux (F1.6, AGC ON); 0 Lux with IR
-
Shutter speed: 1 s to 1/100,000 s
-
Temperature measurement range: –20 °C to +150 °C
-
Temperature accuracy: ±8 °C
-
Video compression: H.265 / H.264 (main stream); MJPEG available on sub-stream
-
IR illuminator (optical): Up to 15 m; white light up to 30 m (visual alarm option)
-
Power: 12 VDC ±25% (φ 5.5 mm) or PoE (802.3af, Class 3)
-
Power consumption: Max ~6.5 W
-
Protection & environment: IP67, TVS 6000V surge protection; operating –40 °C to +65 °C
-
Dimensions: 138.3 × 138.3 × 123.1 mm
-
Weight: 940 g
-
Smart detection ranges (VCA): Humans ~56 m; Vehicles ~168 m
What’s in the Box
- 1 × HIKVISION HEATPRO DOME 7 mm DS-2TD1228T-3/QA(B) camera
- Instruction manual
Applications & Use Cases
Suited to perimeter checkpoints, medium-sized yards, plant rooms and facility entrances, this dome delivers quick thermal alerts and visual verification to speed up response. Use it where discreet installation is preferred but reliable thermal early-warning is required — for example estate entry gates, warehouse loading zones and substations.
Installation Tips
- Mount at a height of 2.5–4 m for best medium-range coverage and classification accuracy.
- Avoid pointing the thermal lens at reflective surfaces (glass, polished metal) which can affect temperature readings.
- Use temperature rule sets (points/areas/line) to tailor alerts for fire detection, equipment overheating or restricted-area monitoring.
- Integrate with your NVR/VMS using ONVIF for centralised recording, event management and remote configuration.
Professional Thermal Monitoring, Ready to Deploy
The HIKVISION HEATPRO DOME 7MM DS-2TD1228T-3/QA(B) offers a compact, robust solution for reliable dual-spectrum surveillance. It’s purpose-built for South African sites that need accurate thermal detection combined with visual verification.
✅ Available now at NeonSales.co.za
