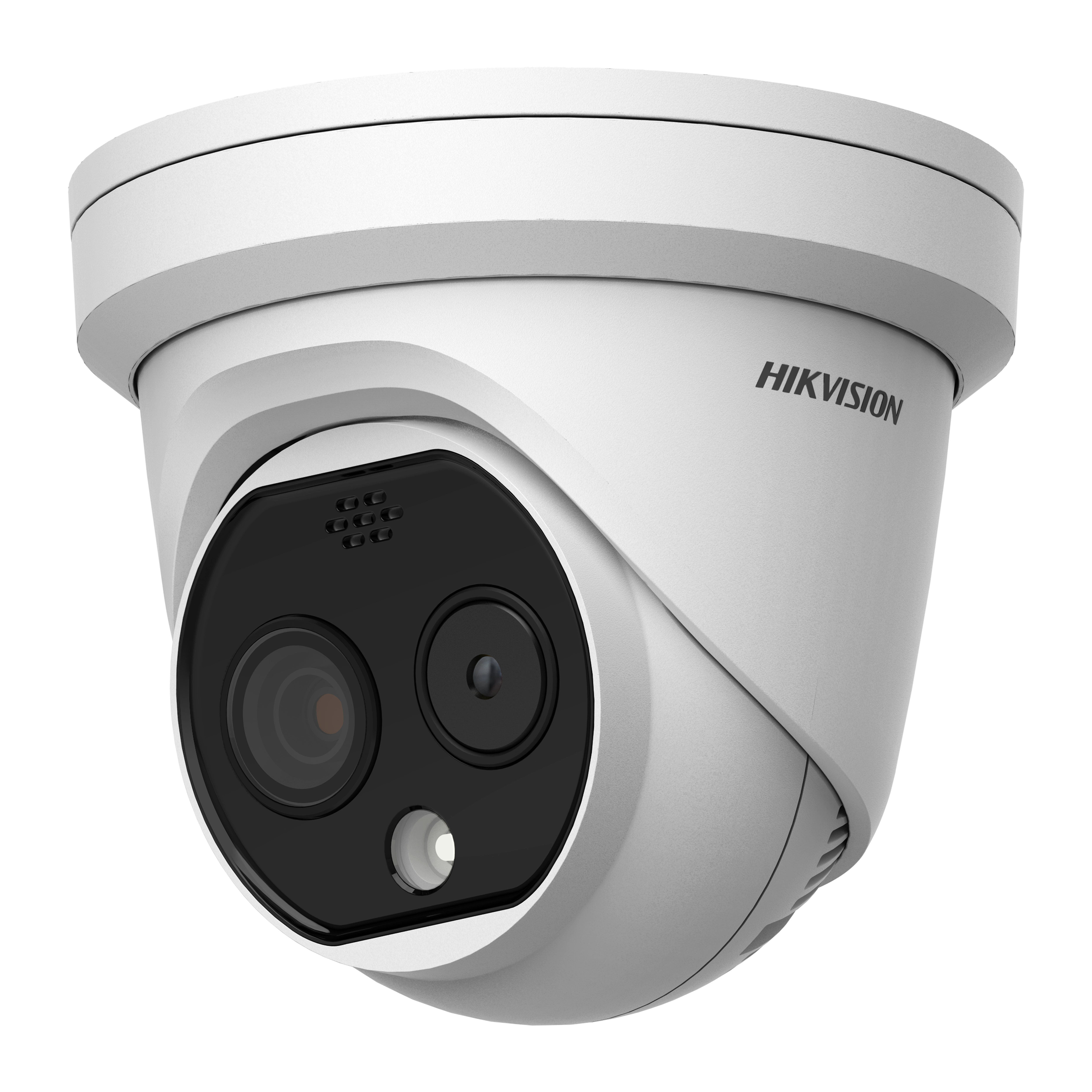

HIKVISION HEATPRO DOME 6.2MM DS-2TD1217-6/QA
Compact Thermal & Optical Bi-Spectrum Dome Camera
The HIKVISION HEATPRO DOME 6.2MM DS-2TD1217-6/QA combines thermal and high-definition optical modules into one compact dome form – ideal for indoor and sheltered outdoor use across South Africa. Engineered for accurate heat-signature detection and crisp visual verification, this model supports smart analytics to support perimeter, facility and asset monitoring.
Key Benefits for South African Security Needs
With a thermal detector capable of detailed heat reading and an optical sensor for visual verification, this camera is built to reduce false alarms, provide early warnings and deliver usable footage and data. Whether protecting warehouses, offices or estate access zones, this unit delivers both broad coverage and detailed monitoring.
-
Thermal & Optical Integration: Detects heat signatures while capturing clear optical imagery for verification.
-
Thermal Module: 160 × 120 VOx resolution with 17 µm pixel pitch and NETD < 40 mK for sensitive heat detection.
-
Thermal Lens: 6.2 mm focal length offering a field of view approx. 25° × 18.7° for medium-range coverage.
-
Optical Module: 4 MP (2688 × 1520) 1/2.7″ CMOS sensor with 8 mm optical lens and 120 dB WDR for sharp visuals in varied lighting.
-
Temperature Monitoring: Range –20 °C to +150 °C with ±8 °C accuracy and support for multiple measurement rules.
-
Smart Analytics: Line-crossing, intrusion, region entrance/exit plus temperature exception alerts for added security intelligence.
-
Outdoor-Ready: IP67-rated enclosure and wide operating temperature (-40 °C to +65 °C) for SA climate conditions.
Specifications
-
Thermal Detector: 160 × 120 resolution, 17 µm pixel pitch
-
Thermal Lens: 6.2 mm focal length
-
Spectral Range (Thermal): 8 µm – 14 µm
-
Optical Sensor: 1/2.7″ Progressive Scan CMOS
-
Optical Resolution: 2688 × 1520 (4 MP)
-
Optical Lens: 8 mm focal length
-
Minimum Illumination: 0.0089 Lux @ F1.6
-
Temperature Range: –20 °C to +150 °C
-
Accuracy: ±8 °C
-
Video Compression: H.265 / H.264
-
Ingress Protection: IP67
-
Operating Temperature: –40 °C to +65 °C
-
Dimensions: 138.3 mm × 138.3 mm × 123.1 mm
-
Weight: 940 g
Applications & Use Cases
Ideal for monitoring access-points, medium-sized asset zones, facility interiors or perimeter adjacent surveillance where both thermal early-warning and visual clarity are required. The form factor allows discreet ceiling or wall mounting in commercial and industrial installations across South Africa.
Installation Tips
- Install at a height of 2.5 m – 4 m for medium-range coverage.
- Avoid pointing the thermal lens toward highly reflective surfaces as this may affect accurate heat measurement.
- Integrate with ONVIF-compatible systems or use Hikvision network infrastructure for full analytics and alert functionality.
Upgrade Your Monitoring Setup
Choose the HIKVISION HEATPRO DOME 6.2MM DS-2TD1217-6/QA for an advanced dual-spectrum solution that combines thermal accuracy with sharp optical imagery — built for the demands of South African security environments. ✅ Available now at NeonSales.co.za — secure what matters with precision technology.
