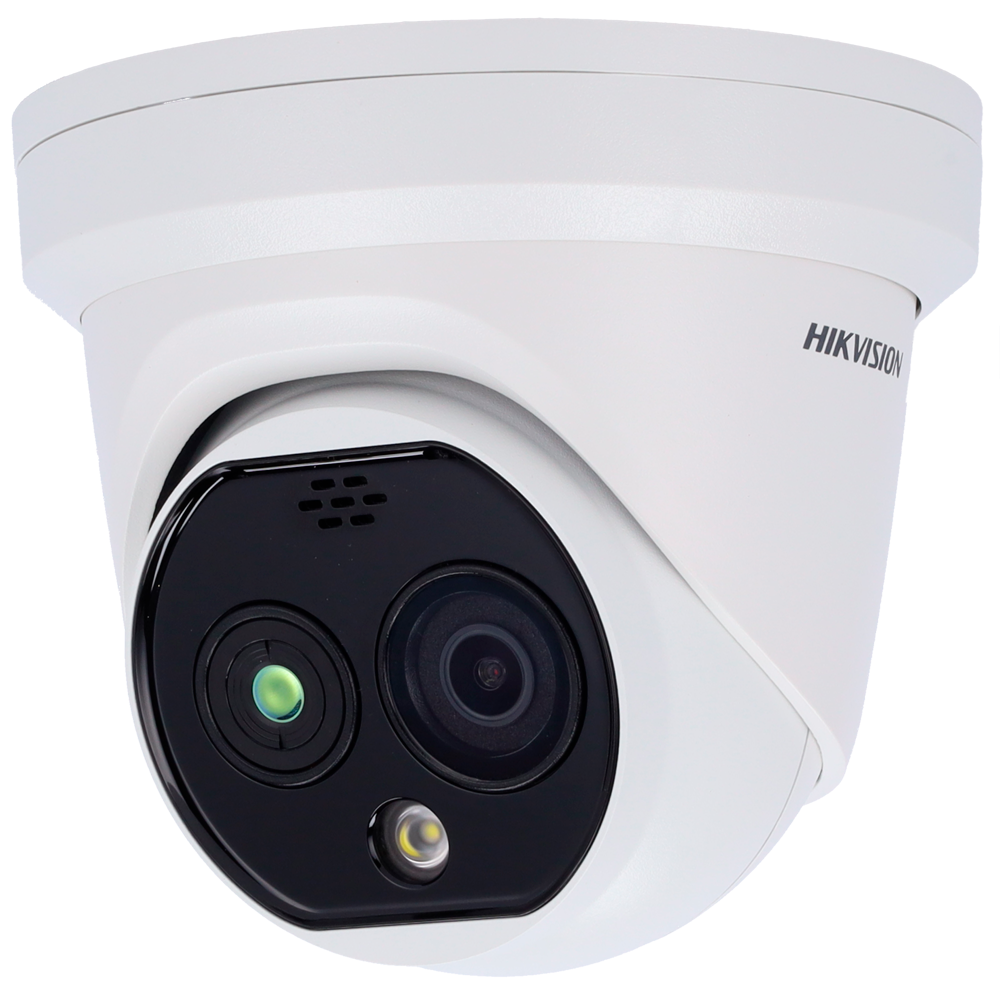

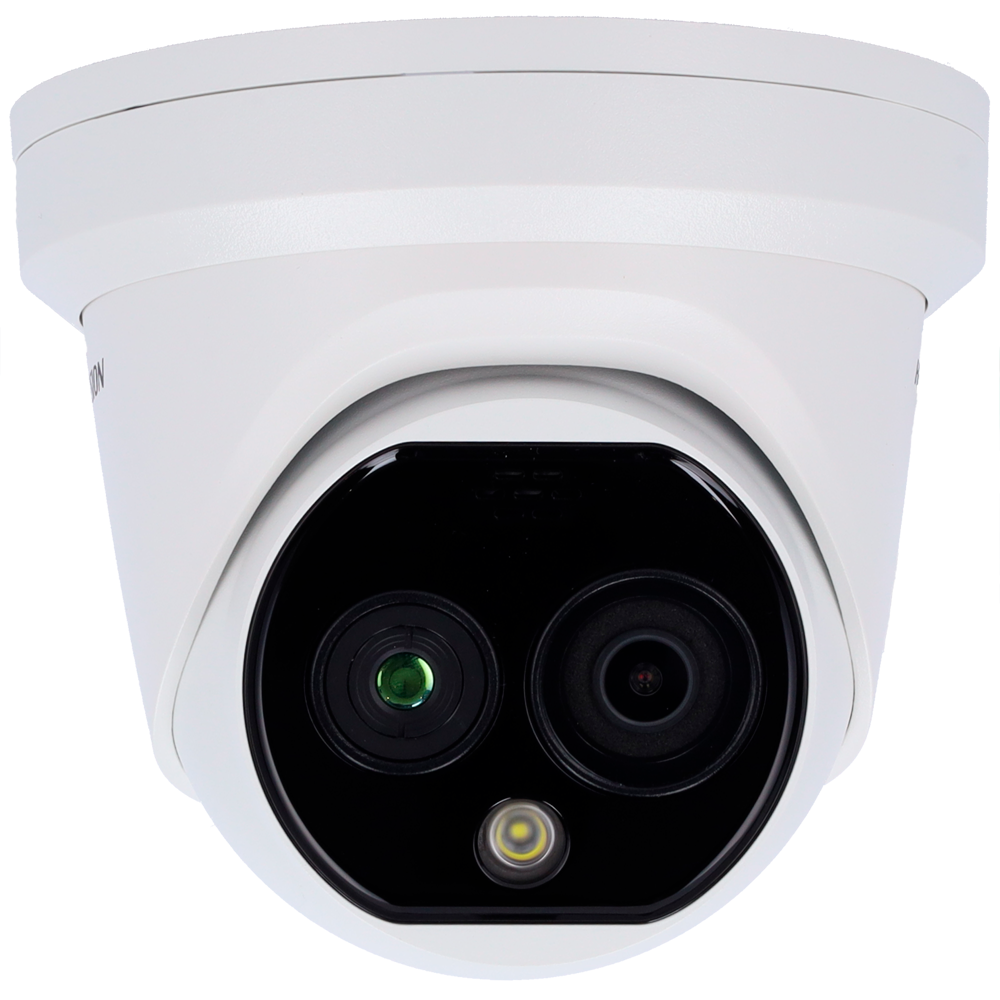

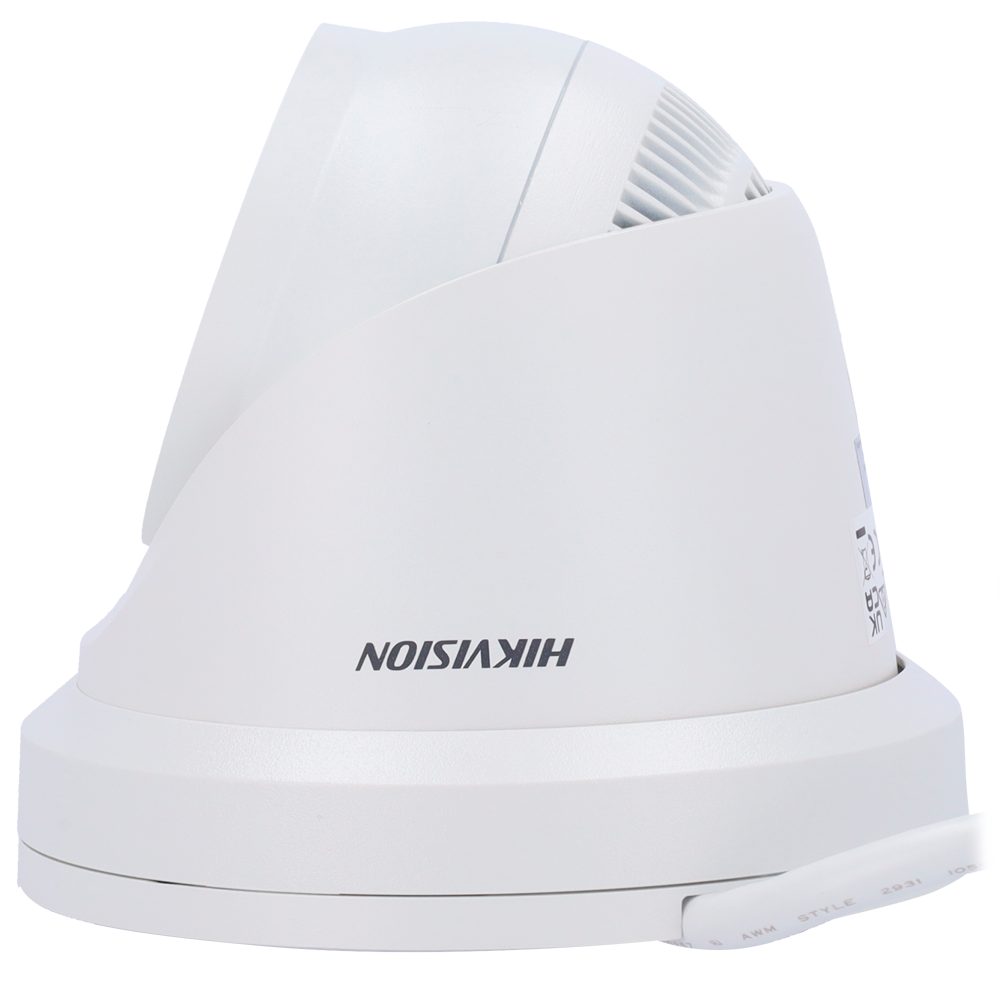

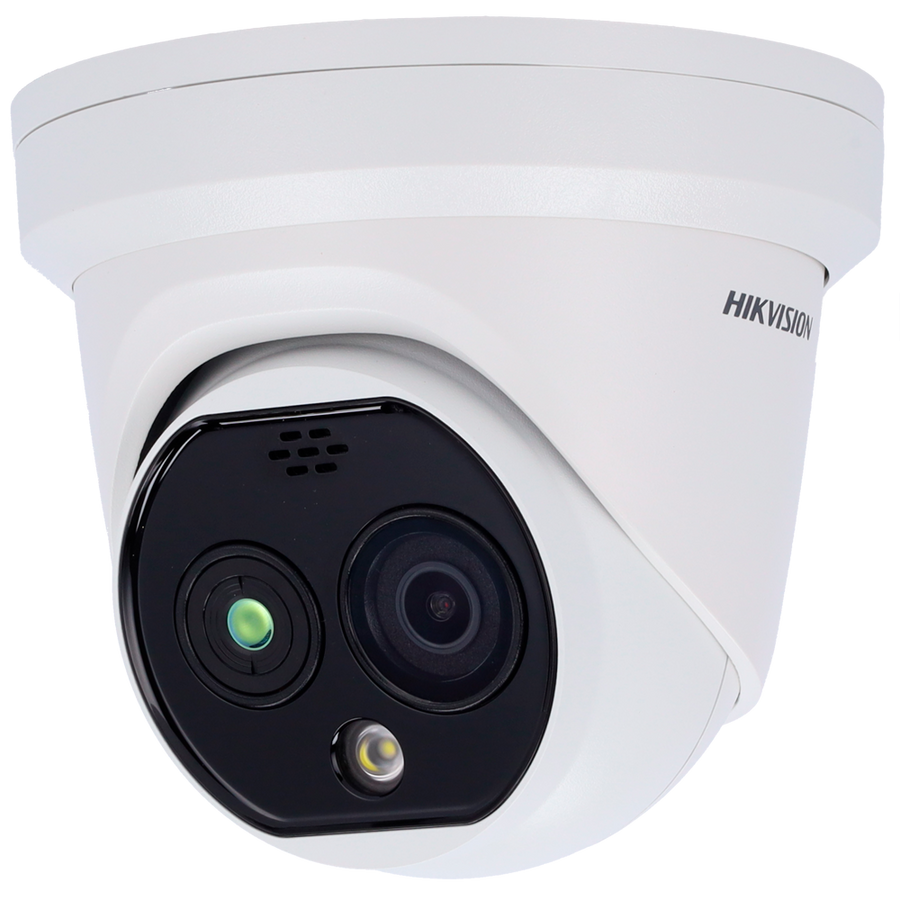

HIKVISION HEATPRO DOME 3.5MM DS-2TD1228T-3/QA(B)
High-Precision Thermal & Optical Bi-Spectrum Dome Camera
The HIKVISION HEATPRO DOME 3.5MM DS-2TD1228T-3/QA(B) combines advanced thermal imaging with a high-definition optical module to deliver exceptional detection and visual clarity. Designed for demanding environments — from industrial zones to commercial perimeters in South Africa — this dome camera offers accurate temperature measurement, intelligent analytics and reliable 24/7 monitoring under any condition.
Designed for Intelligent Protection
With dual-spectrum technology, the camera overlays thermal data over optical visuals, enabling accurate recognition of people, vehicles and temperature anomalies even in complete darkness or smoke. The 3.5 mm thermal lens offers broad field coverage, making the unit ideal for embedded ceiling or wall installations in warehouses, estates, processing plants and infrastructure sites.
-
Dual-Spectrum Imaging: Merges thermal and optical channels for both heat detection and visual verification of events.
-
Thermal Module: 256 × 192 VOx uncooled detector, 12 µm pixel pitch, NETD ≤ 40 mK, thermal focal length approx 3.6 mm with wide field of view.
-
Optical Module: 4 MP (2688 × 1520) sensor, 4.3 mm lens, 120 dB WDR to capture clear visuals in variable lighting.
-
Temperature Measurement: Detects –20 °C to +550 °C with an accuracy of ±2 °C or ±2 %, supporting multiple rule-types (point, area, line).
-
Smart Analytics: Human/vehicle classification, line-crossing, intrusion detection, region entrance/exit and temperature rule alerts.
-
Rugged & Weather-Resistant: Built for outdoor and industrial use with IP67 protection and wide operating temperature range.
Key Specifications
-
Thermal Detector: 256 × 192 resolution, 12 µm pixel pitch
-
Thermal Lens: Approximately 3.6 mm focal length
-
NETD: ≤ 40 mK (@ 25 °C, F1.0)
-
Field of View (Thermal): 50.0° × 37.3° (approx H × V)
-
Minimum Focus Distance: 0.5 m
-
Optical Sensor: 1/2.7″ Progressive Scan CMOS
-
Optical Resolution: 2688 × 1520 (4 MP)
-
Optical Lens: 4.3 mm focal length
-
Minimum Illumination: 0.0089 Lux @ F1.6, AGC ON (0 Lux with IR)
-
Temperature Range: –20 °C to +550 °C
-
Accuracy: ±2 °C or ±2 %
-
Power Supply: 12 V DC ±25% or PoE (802.3af, Class 3)
-
Dimensions: 138.3 mm × 138.3 mm × 123.1 mm
-
Weight: Approx. 940 g
Installation & Use Cases
Ideal for ceiling or wall mount in sensitive areas such as production lines, data centres, asset-storage facilities or external perimeters where both heat signature detection and visual confirmation are required. For optimal coverage, ensure clear line-of-sight of the monitored zone and avoid reflective surfaces within the thermal field.
Boost Your Monitoring Accuracy
Upgrade your surveillance coverage with the HIKVISION HEATPRO DOME 3.5MM DS-2TD1228T-3/QA(B). With intelligent analytics, dual-spectrum precision and a robust build tailored for South Africa’s conditions — now’s the time to secure your site. ✅ Available at NeonSales.co.za
