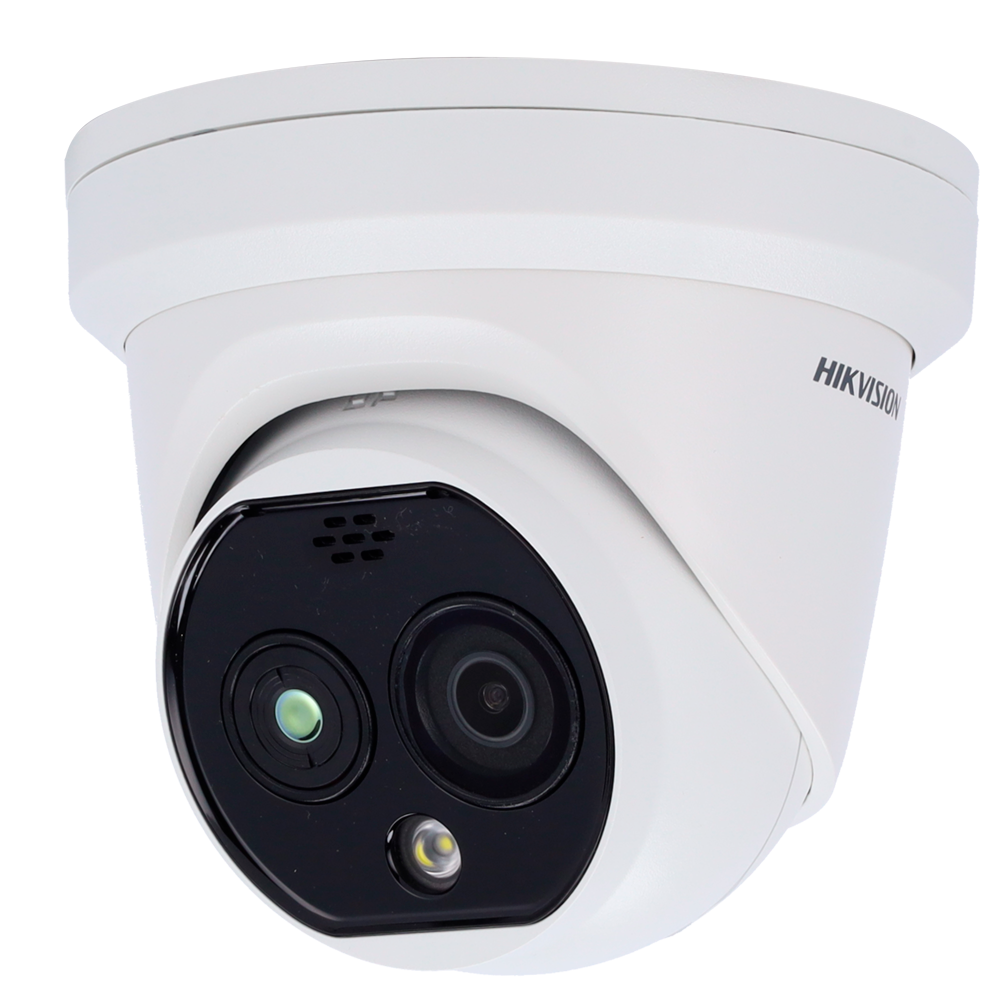

HIKVISION HEATPRO DOME 3.5MM DS-2TD1228-3/QA
Precision Thermal & Optical Dome for Early Detection
The HIKVISION HEATPRO DOME 3.5MM DS-2TD1228-3/QA is crafted to deliver reliable dual-spectrum surveillance in both challenging indoor and outdoor environments. With thermal and optical imaging channels in one compact dome, this camera offers broad thermal coverage, sharp visual verification and intelligent analytics — ideal for industrial sites, estates and facility environments across South Africa.
Smart Detection in A Compact Form
Featuring a thermal module with 256 × 192 resolution and a 3.6 mm lens plus a high-resolution 4 MP optical module, it balances wide field thermal detection with detailed optical identification capabilities. The built-in analytics handle temperature anomalies, human/vehicle classification and motion alerting — giving you powerful detection and clarity in one device.
-
Dual-Spectrum Imaging: Thermal channel for heat-signature detection, optical channel for visual verification.
-
Thermal Module: 256 × 192 VOx uncooled detector, 12 µm pixel pitch, NETD < 40 mK for sensitive thermal readings.
-
Thermal Lens: 3.6 mm focal length (≈ 3.5 mm class) offering a wide field of view for coverage.
-
Optical Module: 4 MP (2688 × 1520) resolution with 4.3 mm optical lens for clear colour imagery.
-
Temperature Measurement: –20 °C to +150 °C range with temperature alarm rules for fire warning and equipment fault detection.
-
Smart Analytics: Classified detection of humans and vehicles, line crossing, intrusion and region entrance/exit events.
-
Rugged Design: Suitable for harsh outdoor or indoor use, built for South Africa’s varied environments.
-
Flexible Integration: Compatible with network video systems, micro-SD storage slot, PoE and DC power options for installation flexibility.
Key Specifications
-
Thermal Detector: 256 × 192 resolution, 12 µm pixel pitch
-
Thermal Lens: 3.6 mm focal length
-
Spectral Range (Thermal): 8 µm – 14 µm
-
Optical Sensor: 1/2.7″ Progressive Scan CMOS
-
Optical Resolution: 2688 × 1520 (4 MP)
-
Optical Lens: 4.3 mm focal length
-
Minimum Illumination (Optical): 0.0089 Lux @ F1.6 (AGC ON)
-
Temperature Measurement Range: –20 °C to +150 °C
-
Accuracy: ±8 °C (depending on configuration)
-
Video Compression: H.265 / H.264
-
Ingress Protection: Suitable for outdoor use (weather-protected)
Installation & Use Cases
Perfect for site monitoring where both heat-signature detection and visual verification matter — such as estate entrances, logistics hub access points, manufacturing zones or utility sites. Mount it at 2.5 m to 4 m height, ensure the thermal lens covers the area of interest with no reflective surfaces, and integrate with your NVR or VMS for full event handling.
Upgrade Your Surveillance Quality
Choose the HIKVISION HEATPRO DOME 3.5MM DS-2TD1228-3/QA for accurate, smart dual-spectrum monitoring with broad coverage and visual detail. ✅ Available now at NeonSales.co.za — secure your site with advanced thermal-optical technology.
