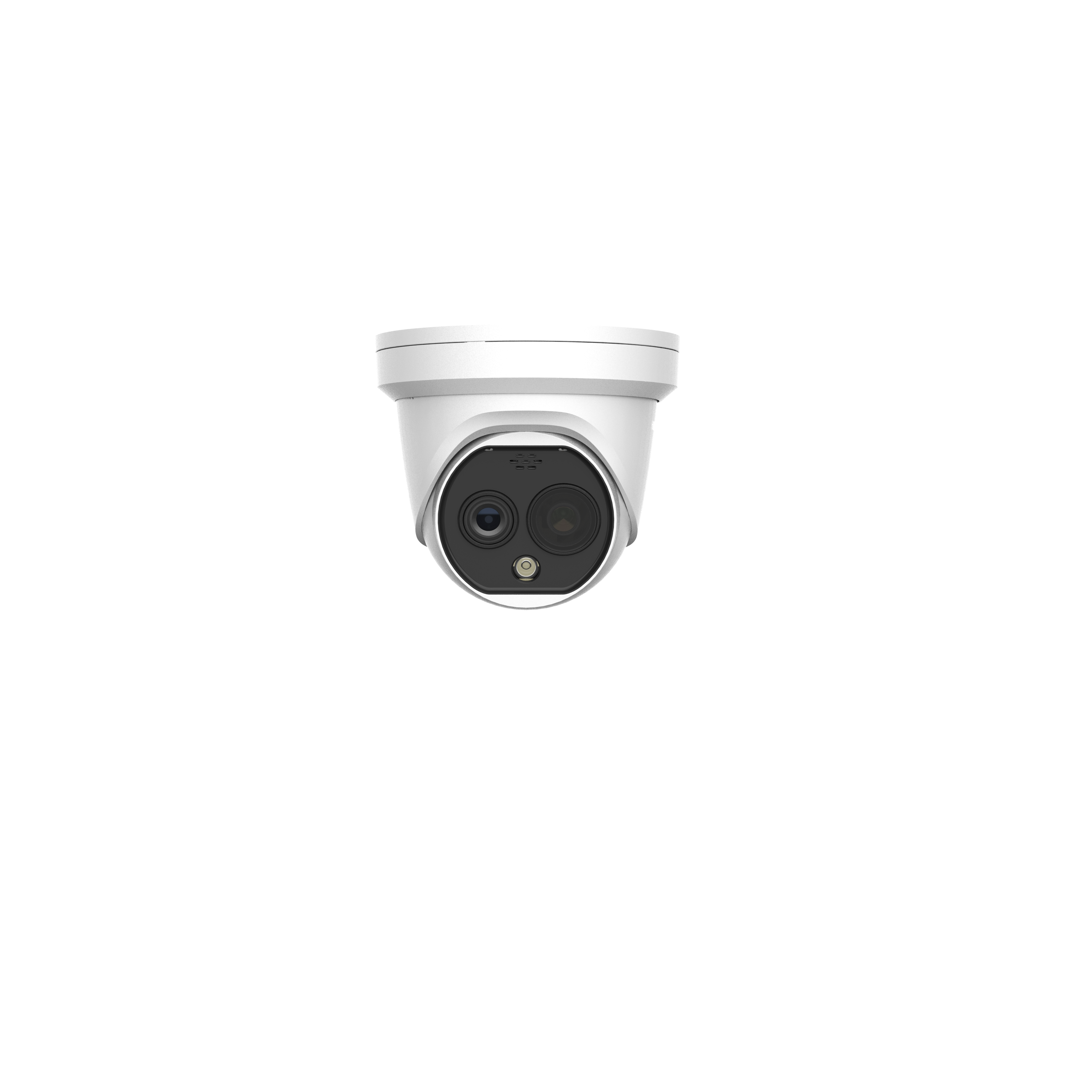

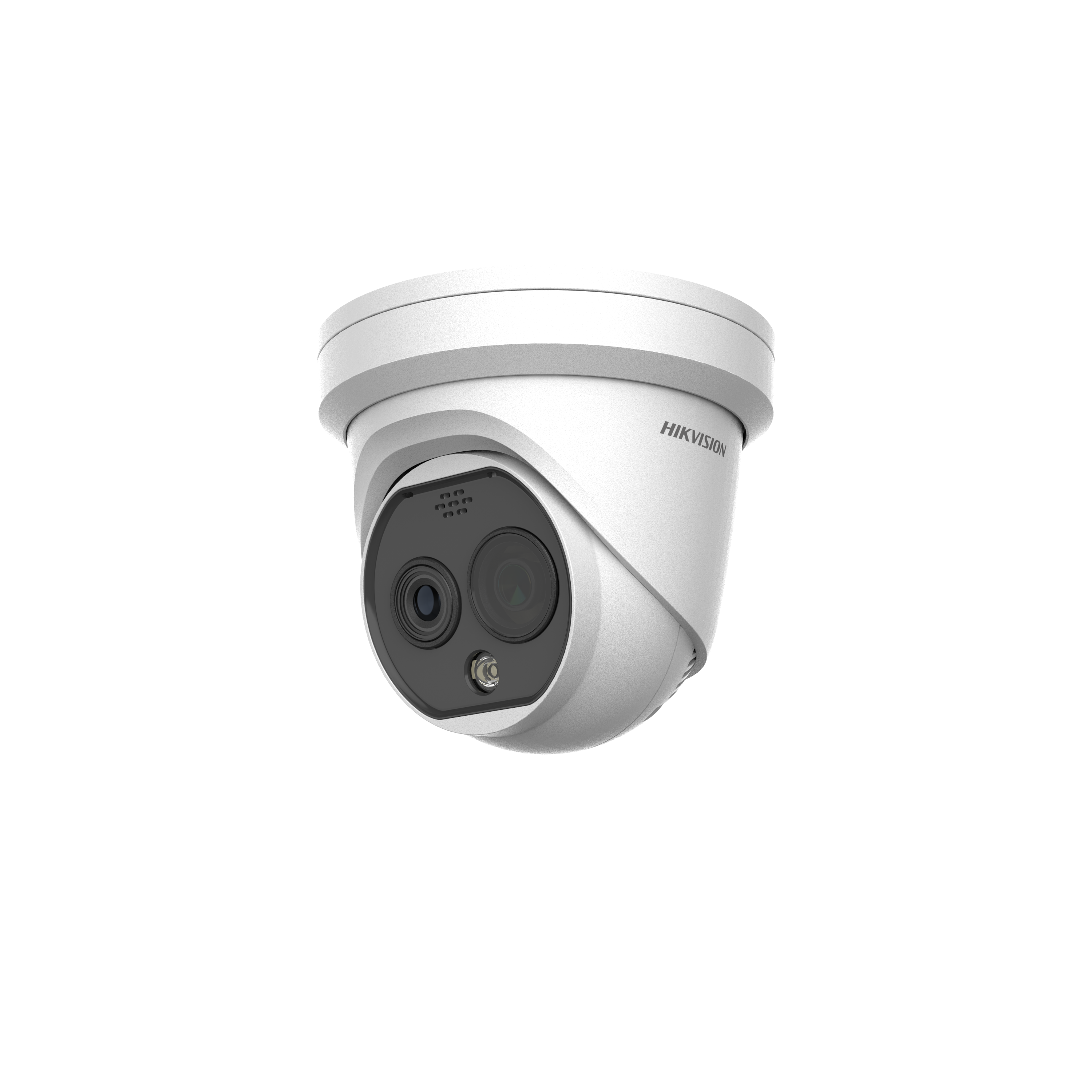

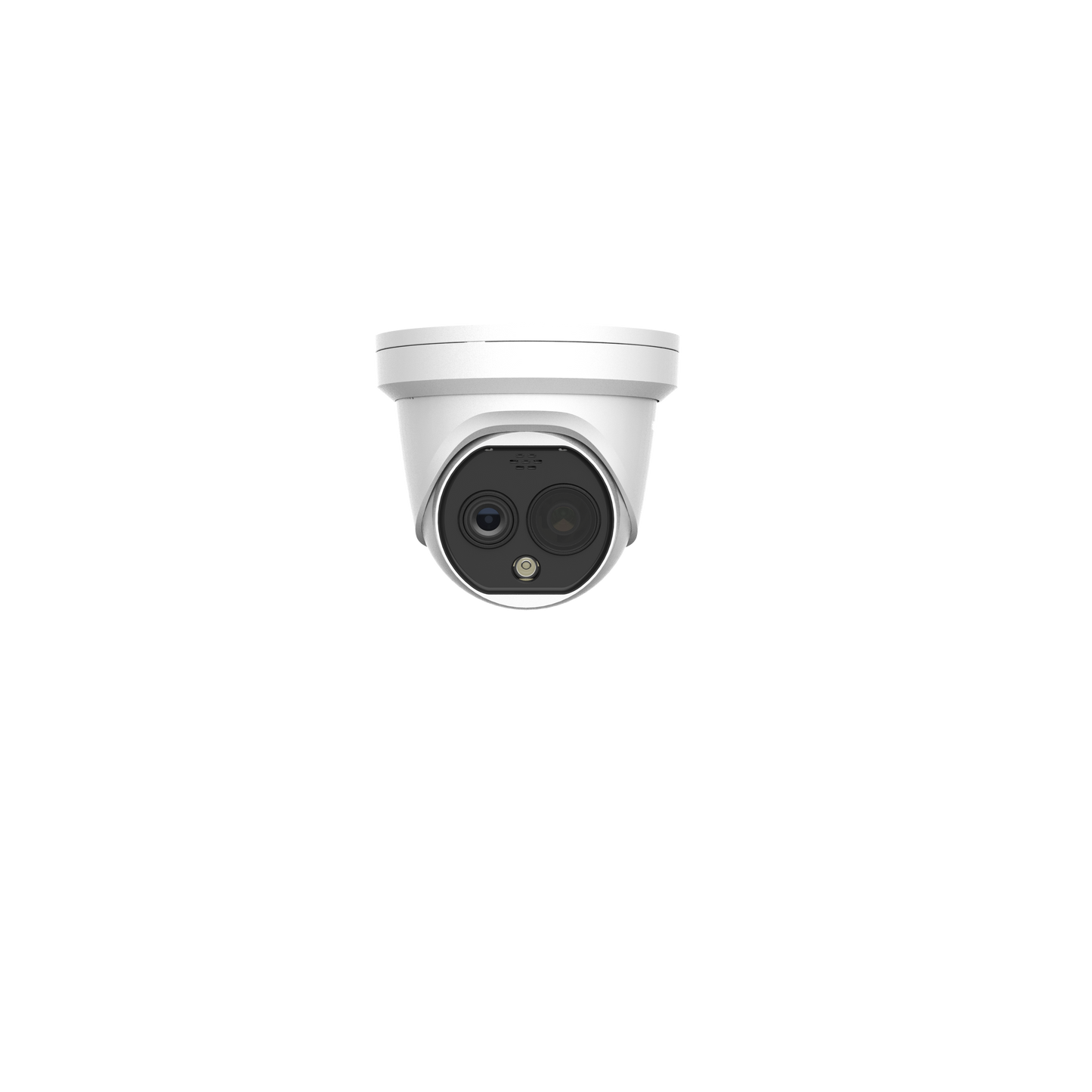

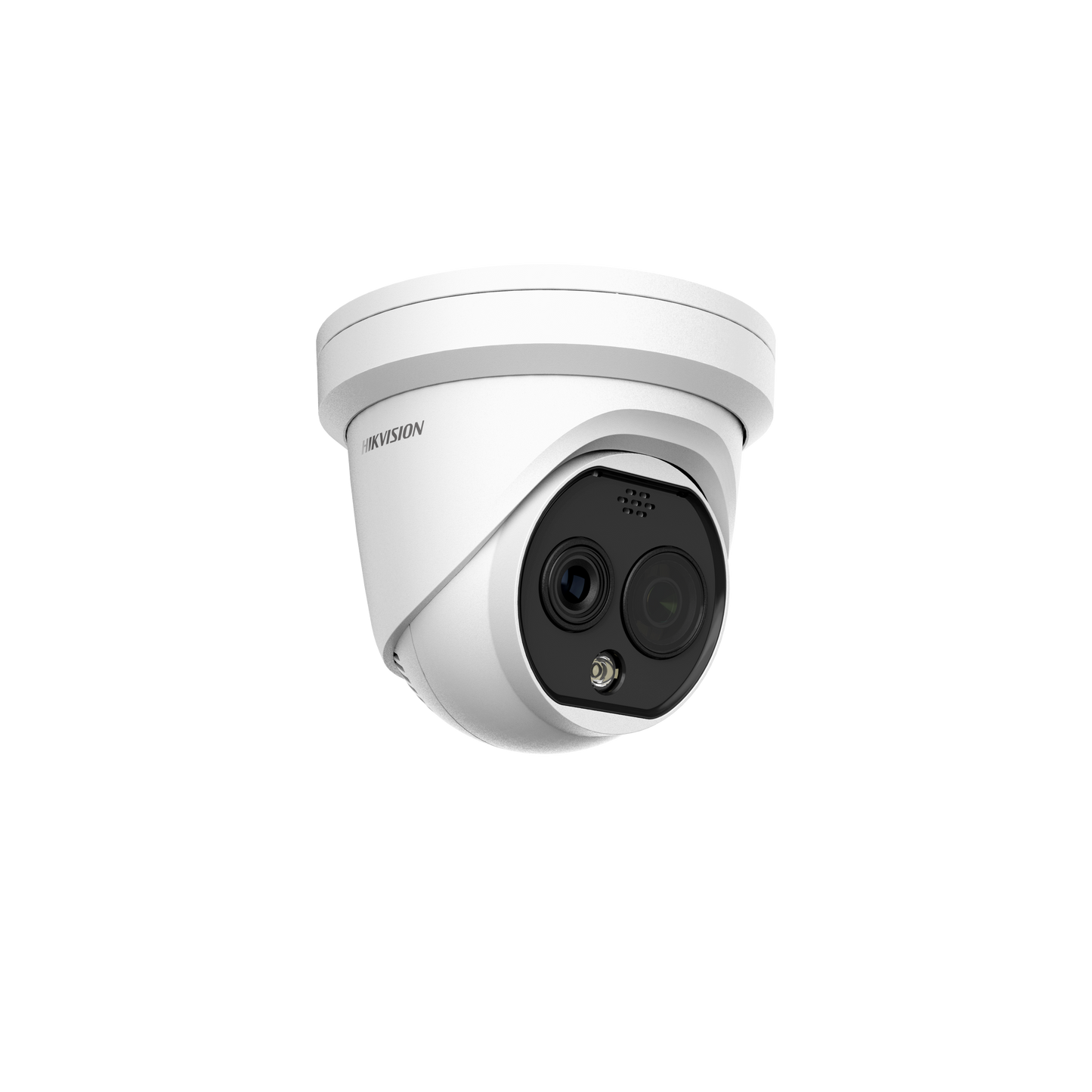

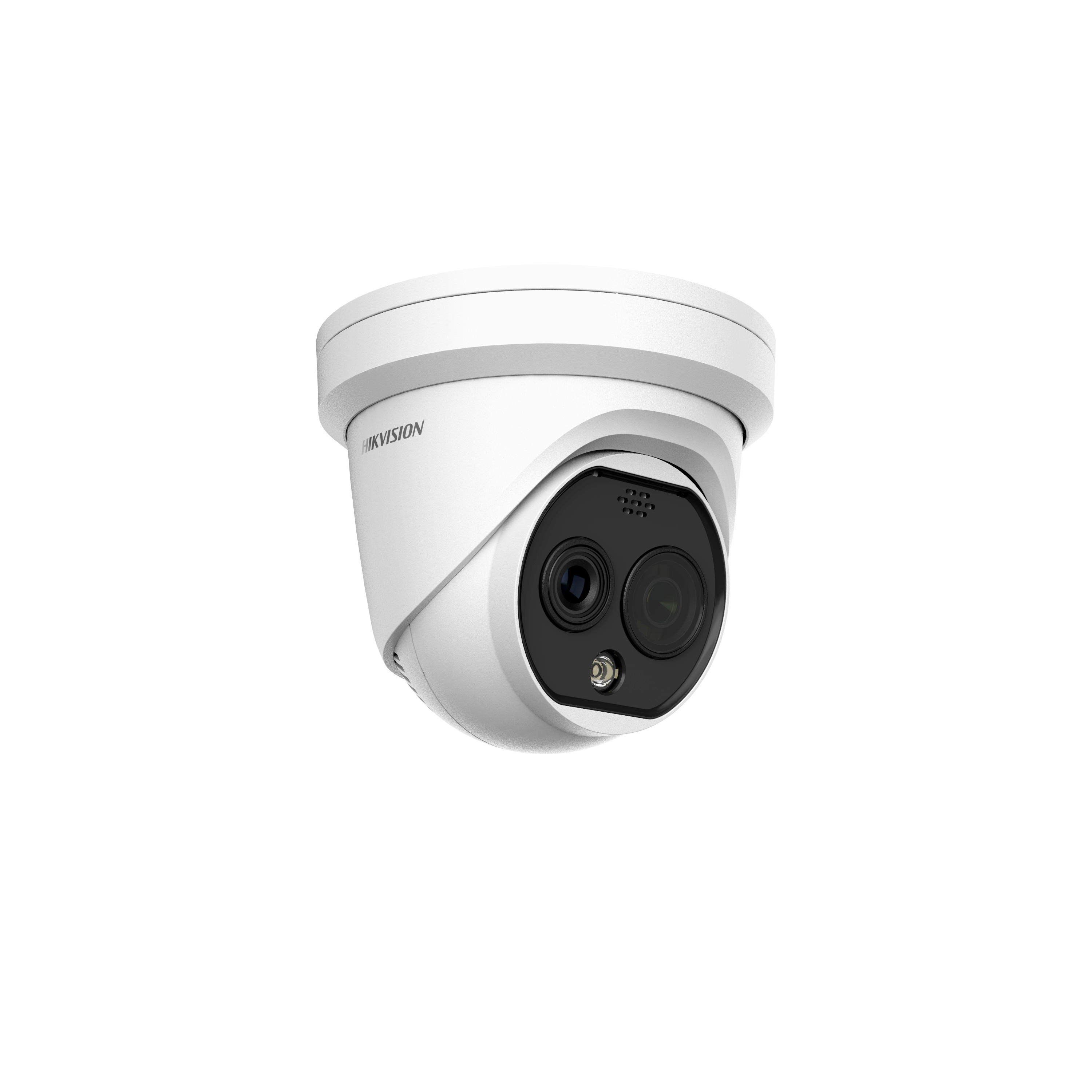

Advanced bi-spectrum surveillance built for high-risk environments. The Hikvision DS-2TD1228T-2/QA(B) integrates both thermal and high-definition optical imaging in one turret-camera housing. Designed for demanding installations such as warehouses, manufacturing sites and perimeter areas in South Africa, it offers thermal detection of heat signatures alongside a 4 MP optical sensor for visual verification — delivering comprehensive coverage regardless of lighting or visibility challenges.
Why this camera makes a difference
Conventional visible-light cameras struggle when lighting fails, smoke develops or visibility drops. The DS-2TD1228T-2/QA(B) solves this by pairing a thermal module — capable of detecting heat events and temperature anomalies — with an optical channel for visual clarity and identification. With built-in analytics and high-contrast performance, it offers smarter alerts and deeper insight for your security setup.
Key features & benefits
-
Bi-spectrum design: Thermal sensor (256×192 VOx) and optical sensor (4 MP) combined in one unit.
-
Thermal detection: Thermal resolution 256×192, pixel pitch 12 µm, NETD ≤ 40 mK (@25 °C, F1.0) — ideal for identifying heat signatures and early fire or hotspot conditions.
-
Wide thermal field of view: 2.1 mm thermal lens delivering approx. 90° × 65.4° (H × V) for broad-area coverage.
-
Optical clarity: 4 MP progressive-scan sensor with a 2.2 mm lens offering a field of view around 117.8° × 70.4° (H × V) — perfect for visual confirmation of events.
-
Smart analytics and temperature alarms: Supports human/vehicle classification, line crossing, intrusion detection and temperature-exception alarms covering ranges from –20 °C up to 550 °C with accuracy up to ±2 °C or ±2 %.
-
Outdoor-ready design: Rugged IP67-class weather protection (or equivalent outdoor-rating) and operating temperature from –40 °C to +65 °C — built for South African conditions.
Technical specifications
-
Model: DS-2TD1228T-2/QA(B)
-
Thermal Module:
- Resolution: 256×192 pixels
- Pixel pitch: 12 µm
- Spectral range: 8–14 µm
- NETD: ≤ 40 mK (@25 °C, F1.0)
- Focal length: 2.1 mm
- Field of view: Approx. 90° × 65.4° (H×V)
- Min focusing distance: 0.1 m
-
Optical Module:
- Sensor: 1/2.7″ Progressive Scan CMOS
- Resolution: 2688 × 1520 (4 MP)
- Minimum illumination: 0.0176 Lux @ F2.25 (AGC ON), 0 Lux with IR
- Focal length: 2.2 mm
- Field of view: Approx. 117.8° × 70.4° (H×V)
- Shutter speed: 1 s to 1/100 000 s
- WDR: 120 dB
-
Video/Compression & Smart Features:
- Bi-spectrum image fusion and picture-in-picture support
- White-light and audio alarm features included
- Smart functions: Line crossing, intrusion, region entrance/exit — up to 8 VCA rules
- Temperature measurement: 10 points, 10 areas and 1 line (21 rules)
- Measurement range: –20 °C to 550 °C
- Temperature accuracy: Max ±2 °C or ±2%
-
Power & Environmental:
- Power: 12 V DC ± 25% or PoE (802.3af Class 3)
- Power consumption: Max approx. 6 W
- Operating temperature: –40 °C to +65 °C
- Protection level: IP67 ingress (outdoor-rated)
-
Physical:
- Dimensions: approx. 138.3 mm × 138.3 mm × 123.1 mm
- Weight: approx. 940 g
Applications
- Perimeter and asset-protection for warehouses, manufacturing yards and logistics centres in South Africa.
- Fire- or hotspot-monitoring areas such as material stores, incineration plants or enclosed workshops.
- Outdoor installations where lighting or visibility is poor and both thermal detection and visual clarity are required.
Installation & setup tips
- Mount the camera on a stable surface with a clear view of the target zone — ensure both thermal and optical channels are unobstructed.
- Use PoE cabling when possible to simplify power and network connectivity.
- Configure your temperature-exception rules, detection zones and analytics in the web interface or via your NVR for tailored alerts.
- Perform periodic lens cleaning and firmware updates to maintain optimal performance, especially in dusty or exposed outdoor areas.
Ready for precision surveillance? The Hikvision DS-2TD1228T-2/QA(B) delivers high-performance dual-spectrum monitoring built for demanding environments. Whether you’re securing a warehouse, estate or industrial site, this turret camera brings advanced thermal and optical capability to your install.
Short product blurb (for collection pages): Hikvision DS-2TD1228T-2/QA(B) — 256×192 thermal + 4 MP optical bi-spectrum turret camera, temperature-exception alarms, IP67 outdoor ready.
