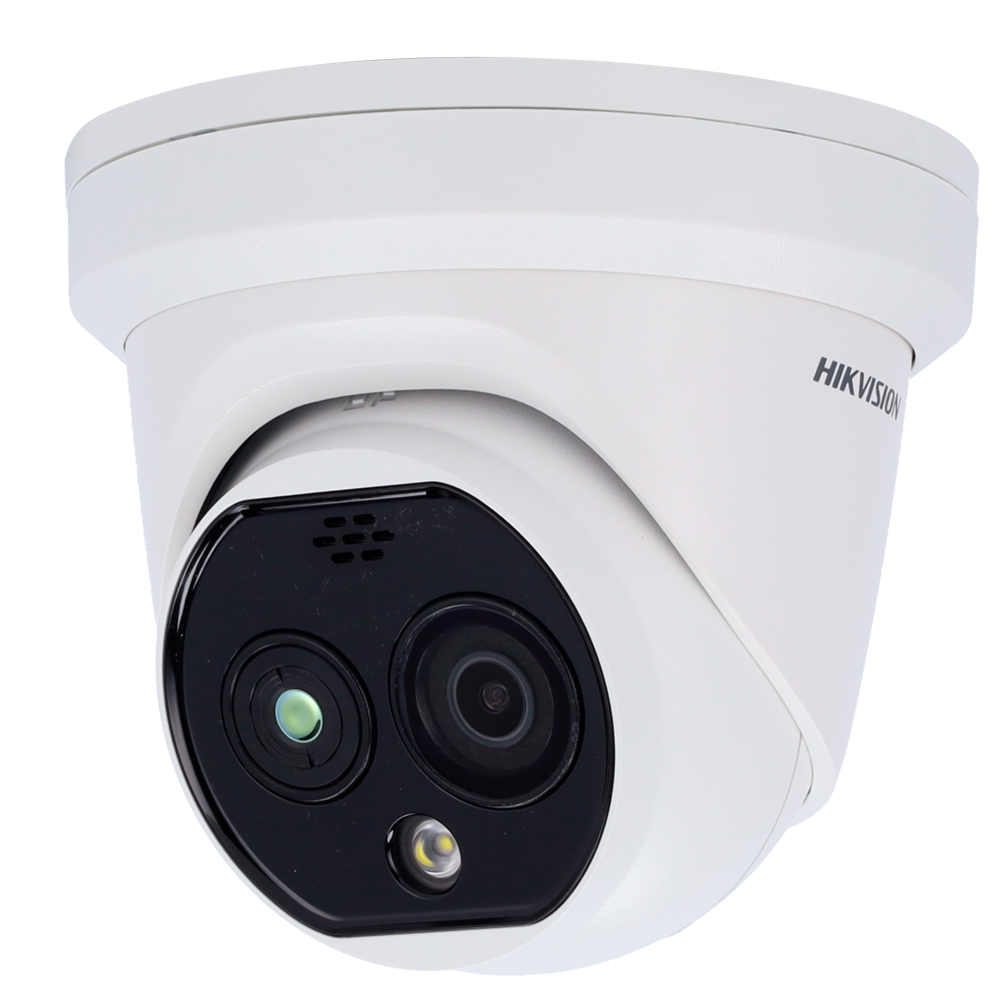

HIKVISION HEATPRO DOME 2.1MM DS-2TD1228-2/QA
Ultra-Wide Thermal & Optical Dome for Close-Range Surveillance
The HIKVISION HEATPRO DOME 2.1MM DS-2TD1228-2/QA delivers precise thermal and optical monitoring in a compact, wide-angle dome format. Built for environments that require close-range coverage with detailed heat and motion detection, this camera is ideal for entrances, indoor security zones, and small outdoor perimeters across South Africa.
Accurate Dual-Spectrum Detection
Combining thermal imaging with a 4 MP optical channel, this HeatPro dome camera ensures reliable detection and visual confirmation — even in total darkness or challenging lighting. Its 2.1 mm thermal lens provides a wide field of view for close-proximity monitoring, while the smart analytics engine minimises false alarms and supports precise alerts for human or vehicle detection.
-
Dual-Spectrum Technology: Merges thermal and optical channels for simultaneous heat and visual monitoring.
-
Thermal Module: 256 × 192 VOx uncooled detector, 12 µm pixel pitch, with ≤ 40 mK sensitivity for subtle heat differentiation.
-
Thermal Lens: 2.1 mm focal length for ultra-wide detection coverage.
-
Optical Module: 4 MP (2688 × 1520) resolution with 2.8 mm optical lens for sharp visuals and wide optical field of view.
-
Temperature Measurement: –20 °C to +150 °C range with adjustable temperature alarms for proactive monitoring.
-
Smart Detection Functions: Includes human/vehicle classification, line-crossing, intrusion, and region entry/exit alerts.
-
Rugged Design: Weather-resistant IP67 housing, perfect for indoor or sheltered outdoor installations.
-
Flexible Power & Storage: Supports 12 V DC and PoE (802.3af) with onboard microSD slot up to 256 GB.
Key Specifications
-
Thermal Detector: 256 × 192 resolution, 12 µm pixel pitch
-
Thermal Lens: 2.1 mm focal length
-
Thermal NETD: ≤ 40 mK (@ 25 °C, F1.0)
-
Optical Sensor: 1/2.7″ Progressive Scan CMOS
-
Optical Resolution: 2688 × 1520 (4 MP)
-
Optical Lens: 2.8 mm focal length
-
Minimum Illumination: 0.0089 Lux @ F1.6 (AGC ON)
-
Temperature Range: –20 °C to +150 °C
-
Accuracy: ±8 °C (depending on configuration)
-
Ingress Protection: IP67 weatherproof rating
-
Operating Temperature: –40 °C to +65 °C
-
Power Supply: 12 V DC ±25% / PoE (802.3af, Class 3)
-
Dimensions: 138.3 mm × 138.3 mm × 123.1 mm
-
Weight: Approx. 940 g
Applications & Use Cases
Ideal for offices, retail spaces, security lobbies, factory entry points, and building corridors. The ultra-wide thermal lens enables large-area awareness at close distance — allowing you to detect movement, heat anomalies or potential intrusions with speed and precision.
Installation Tips
- Mount between 2 m and 3.5 m height for best field coverage.
- Ensure no reflective or glass surfaces are directly in front of the thermal lens.
- Integrate with your Hikvision NVR or ONVIF-compliant recorder for advanced event management and alarm control.
- Set temperature-based rules for machinery monitoring or fire-risk zones.
Professional Thermal Detection in Compact Form
The HIKVISION HEATPRO DOME 2.1MM DS-2TD1228-2/QA provides dependable thermal and optical monitoring in a discreet, compact design. It’s the perfect blend of precision, reliability, and smart analytics for short-range protection. ✅ Available now at NeonSales.co.za — add professional-grade heat detection to your security system today.
