Advanced Thermal Detection for Professional Perimeter Security
The HIKVISION HEATPRO BULLET 9.7MM DS-2TD2628-10/QA/GL delivers powerful dual-spectrum imaging technology, designed for high-precision thermal detection and visual verification in demanding security environments. With its 9.7 mm thermal lens and intelligent analytics, this camera provides reliable intrusion detection, fire prevention, and temperature monitoring — day or night, in any weather.
Engineered for Intelligent Protection

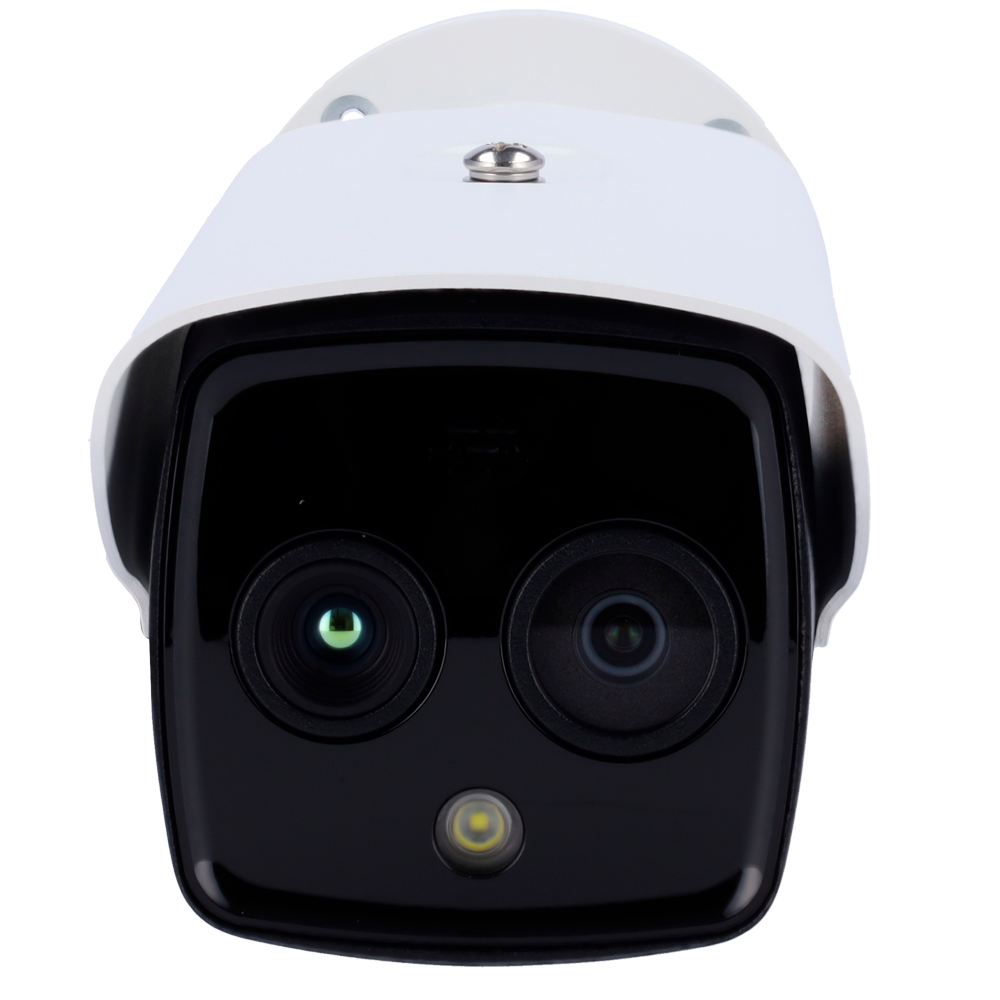

Combining a thermal module with an optical camera, this model detects humans and vehicles with outstanding accuracy, even in complete darkness or through light fog and smoke. The advanced 9.7 mm lens offers long-range detection, making it ideal for large properties, warehouses, estates, and industrial facilities across South Africa. Its smart temperature alarms and AI-driven analytics ensure proactive protection with minimal false alerts.
-
Dual-Spectrum Imaging: Combines thermal and optical visuals for superior clarity and event verification.
-
Thermal Module: 256 × 192 VOx uncooled detector with a 9.7 mm lens and ≤ 40 mK sensitivity for precise heat differentiation.
-
Optical Module: 4 MP (2688 × 1520) high-definition CMOS sensor ensures clear visual monitoring in variable light conditions.
-
Temperature Measurement Range: –20 °C to +550 °C with ±2 °C or ±2% accuracy for safety monitoring and fire prevention.
-
Smart Video Analytics: Human and vehicle classification, line crossing, intrusion, and region entrance/exit detection.
-
Long-Range Coverage: Detects humans up to 400 metres and vehicles up to 1,200 metres away.
-
Weatherproof and Durable: IP67 and IK10-rated housing ensures performance in harsh outdoor environments.
-
Flexible Power Support: Works with 12 VDC, 24 VDC, 24 VAC, and PoE inputs for easy installation.
Specifications
-
Thermal Sensor: 256 × 192 resolution, 12 µm pixel pitch
-
Thermal Lens: 9.7 mm focal length
-
Optical Sensor: 1/2.7″ Progressive Scan CMOS
-
Optical Resolution: 2688 × 1520 (4 MP)
-
Minimum Illumination: 0.0089 Lux @ F1.6
-
Temperature Range: –20 °C to +550 °C
-
Accuracy: ±2 °C or ±2%
-
Detection Distance (Human): Up to 400 m
-
Detection Distance (Vehicle): Up to 1,200 m
-
Smart Functions: Human/vehicle detection, line crossing, intrusion, region entry/exit, temperature alarms
-
Video Compression: H.265+/H.264+
-
Ingress Protection: IP67
-
Vandal Protection: IK10
-
Operating Temperature: –40 °C to +65 °C
-
Power Input: 12 VDC / 24 VDC / 24 VAC / PoE (802.3af)
-
Dimensions: 321.3 × 106.1 × 107.0 mm
-
Weight: 1.55 kg
What’s in the Box
- 1 × Hikvision HeatPro Bullet 9.7 mm DS-2TD2628-10/QA/GL Camera
- Instruction manual
Applications & Use Cases
Perfect for long-distance perimeter security and industrial safety zones, the HeatPro Bullet 9.7 mm excels in open-field environments such as farms, estates, logistics parks, and power substations. It delivers dependable alerts, real-time monitoring, and enhanced situational awareness — ensuring rapid response when it matters most.
Installation Tips
- Mount between 3 m and 5 m for optimal thermal coverage and accuracy.
- Ensure the lens is positioned with a clear, unobstructed line of sight.
- Integrate with compatible NVRs or ONVIF-compliant systems for seamless monitoring and event recording.
Professional Thermal Surveillance Simplified
Upgrade your perimeter protection with the HIKVISION HEATPRO BULLET 9.7MM DS-2TD2628-10/QA/GL — offering long-range detection, smart analytics, and unmatched reliability. ✅ Available now at NeonSales.co.za — bring intelligent security precision to your property today.
