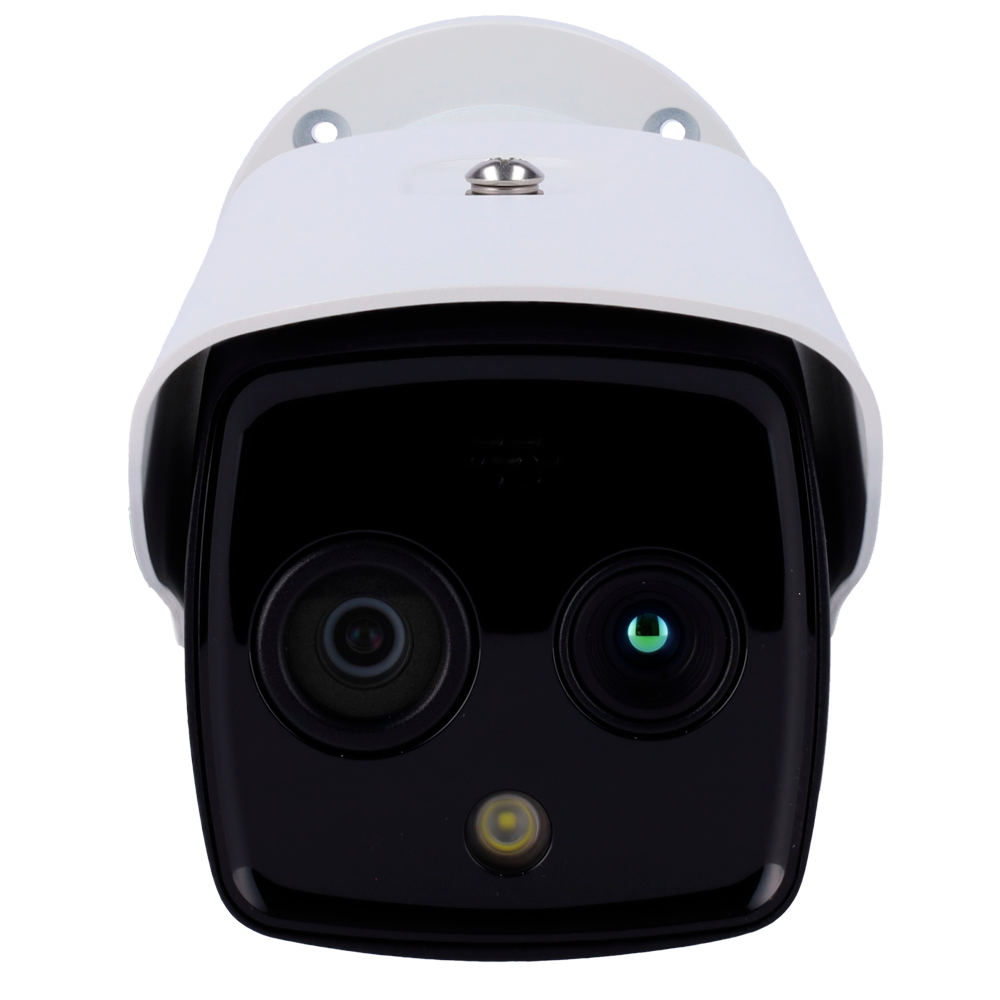

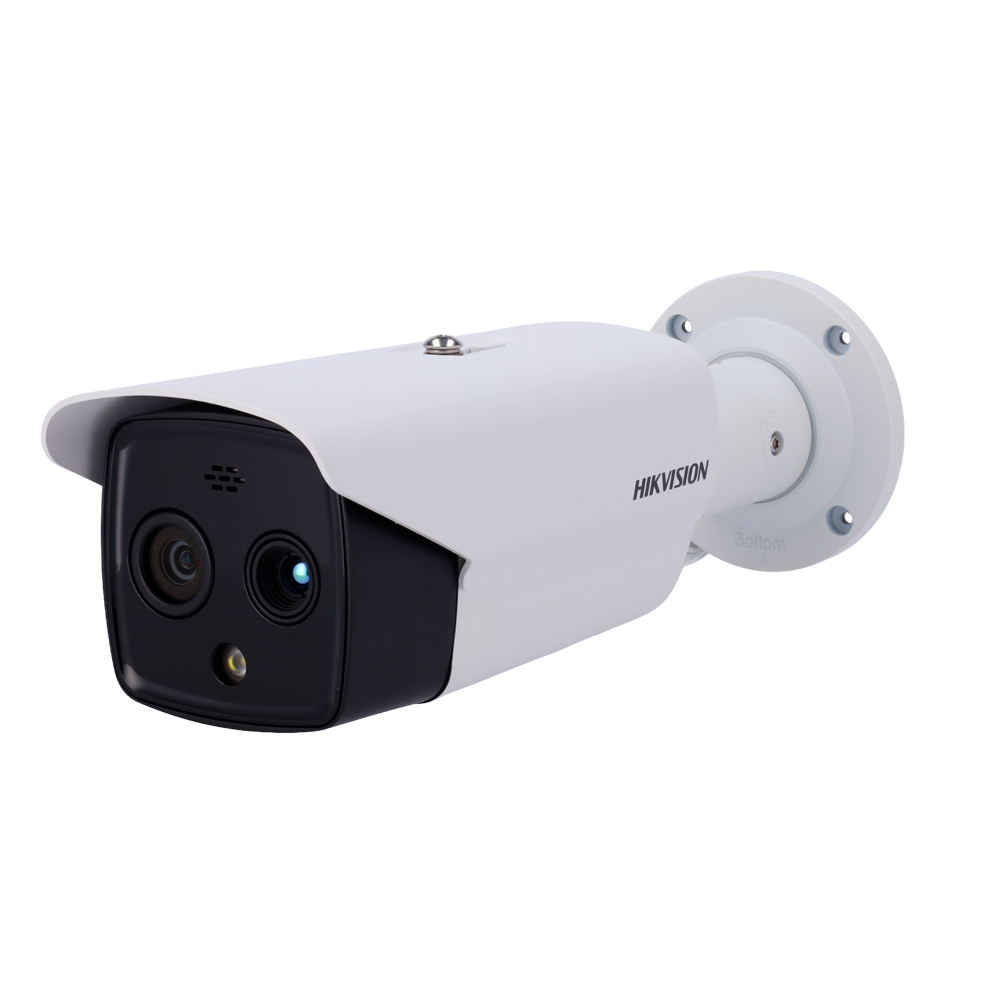

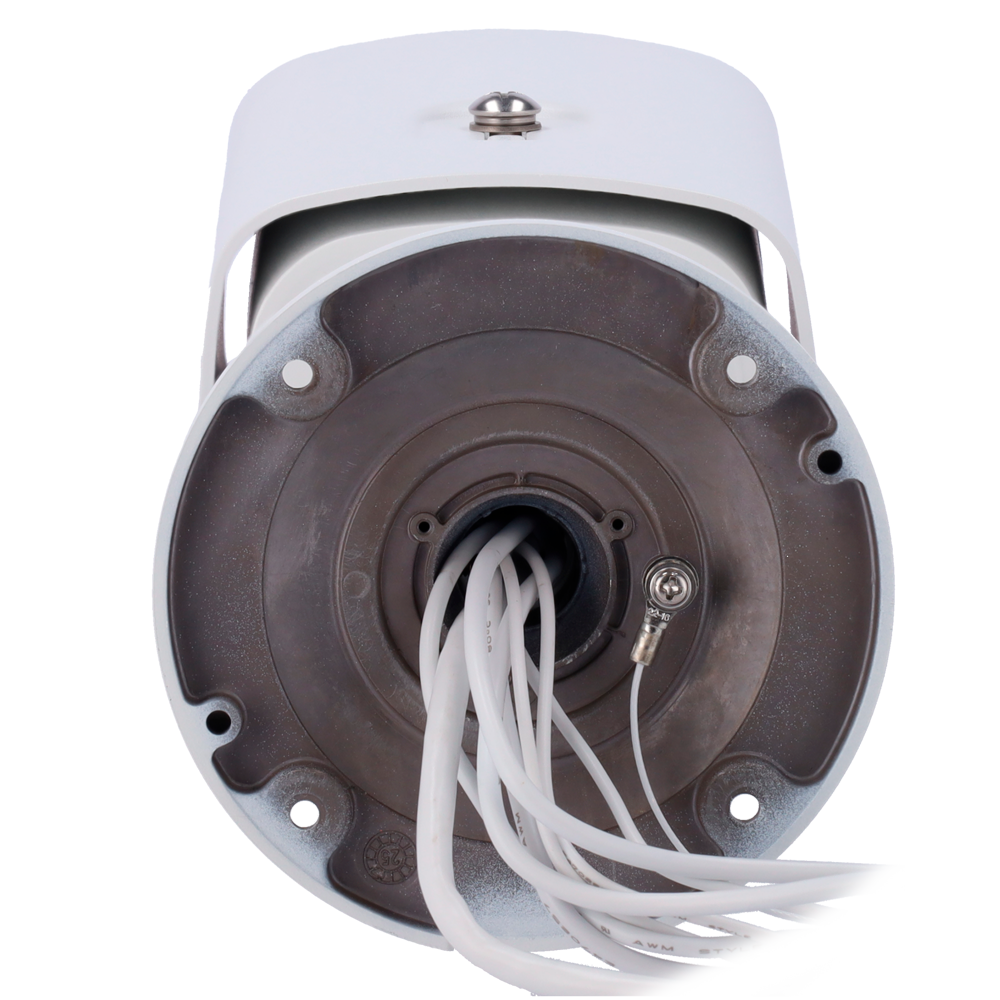

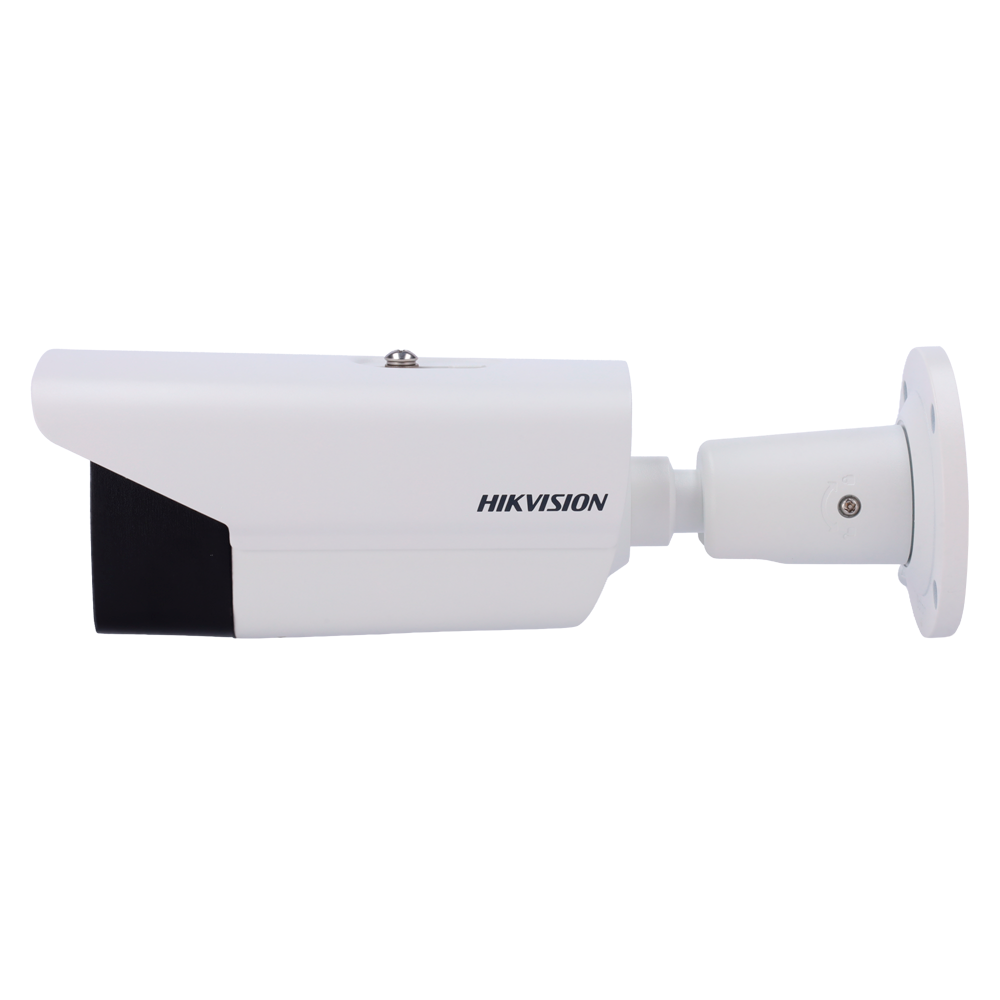

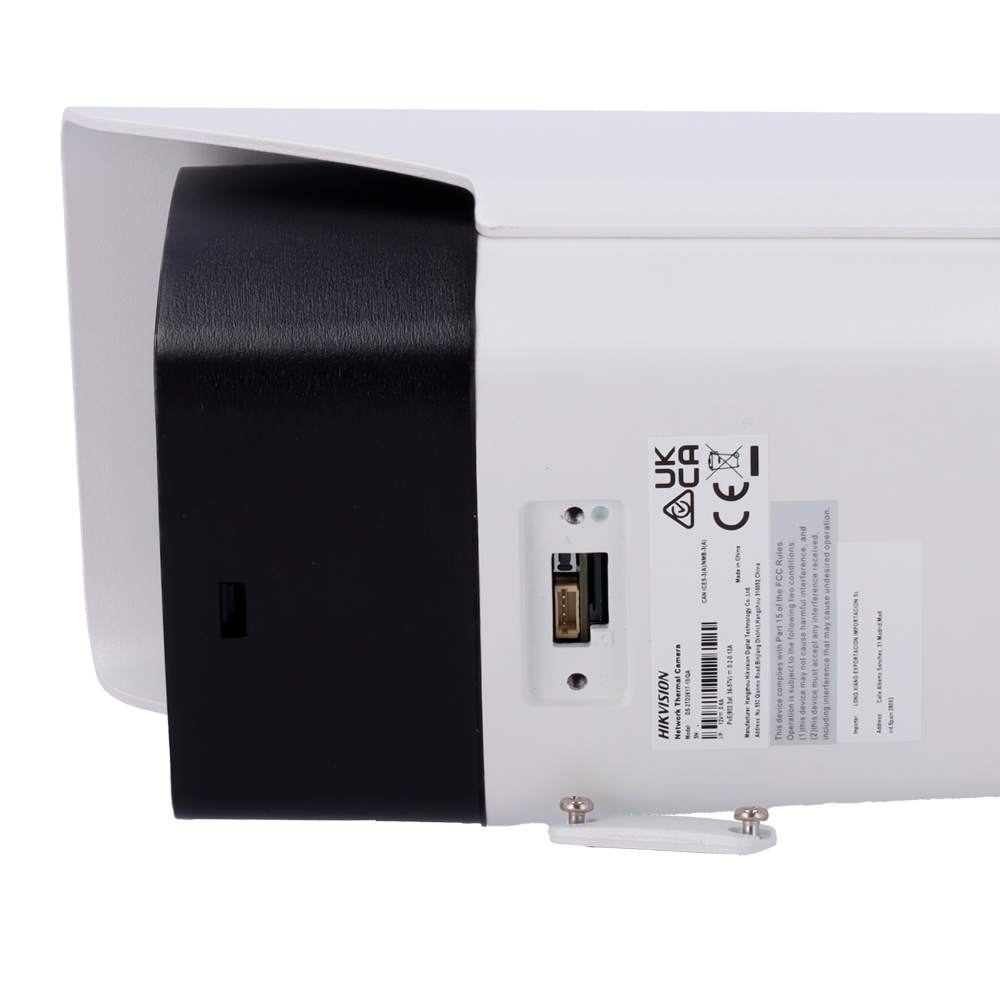

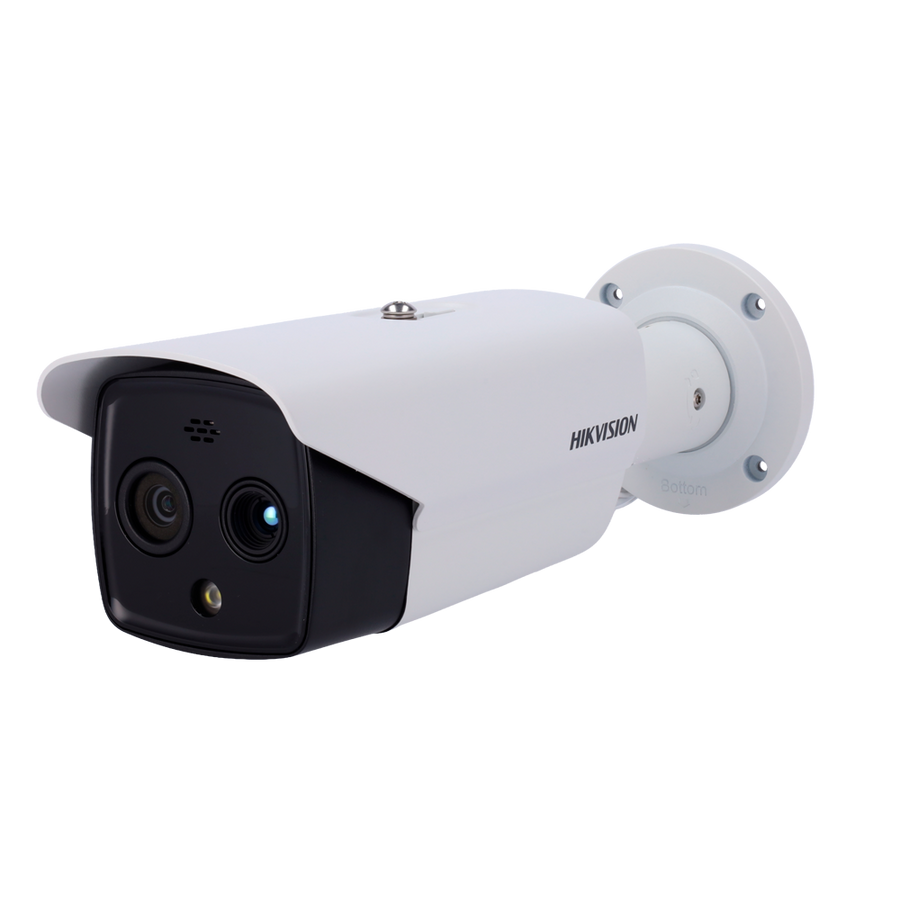

HIKVISION HEATPRO BULLET 9.7MM DS-2TD2617-10/QA
High-Performance Thermal and Optical Surveillance
The HIKVISION HEATPRO BULLET 9.7MM DS-2TD2617-10/QA is a powerful dual-spectrum camera that combines thermal imaging and optical precision to deliver exceptional perimeter and site protection. Built for reliability and accuracy, it provides continuous monitoring in all light and weather conditions — making it ideal for South African security installations.
Reliable Detection, Day or Night
With a long-range 9.7 mm thermal lens and a 4 MP optical module, this camera accurately identifies heat signatures, detects intrusions, and verifies visual details with clarity. Designed for commercial, industrial, and estate surveillance, it ensures early warning of potential threats with intelligent analytics that minimise false alarms.
-
Dual-Spectrum Imaging: Combines thermal and optical channels for both heat detection and visual verification.
-
Thermal Module: 160 × 120 VOx uncooled detector with high sensitivity (≤ 40 mK) for reliable temperature readings.
-
Thermal Lens: 9.7 mm focal length providing long-distance detection and wide coverage.
-
Optical Module: 4 MP (2688 × 1520) CMOS sensor delivers sharp, detailed images in varying light conditions.
-
Temperature Measurement: Detects from –20 °C to +150 °C with ±8 °C accuracy for early fire and safety monitoring.
-
Smart Detection: Includes human and vehicle classification, line crossing, intrusion, and region entrance/exit alerts.
-
Durable Build: IP67-rated housing for dust and water protection, ideal for outdoor installations in South Africa.
-
Flexible Power Options: Supports 12 VDC and PoE for easy installation and integration into existing systems.
Specifications
-
Thermal Detector: 160 × 120 resolution, 17 µm pixel pitch
-
Thermal Lens: 9.7 mm focal length
-
Spectral Range: 8 µm – 14 µm
-
Optical Sensor: 1/2.7″ Progressive Scan CMOS
-
Optical Resolution: 2688 × 1520 (4 MP)
-
Optical Lens: 8 mm focal length
-
Minimum Illumination: 0.0089 Lux @ F1.6
-
Temperature Range: –20 °C to +150 °C
-
Accuracy: ±8 °C
-
Video Compression: H.265 / H.264
-
Ingress Protection: IP67
-
Operating Temperature: –40 °C to +65 °C
-
Power Supply: 12 VDC / PoE (802.3af)
-
Dimensions: 321.3 × 106.1 × 107.0 mm
-
Weight: 1.55 kg
Applications & Use Cases
Ideal for perimeter security, industrial monitoring, logistics yards, and large estates, this camera delivers accurate thermal detection and visual confirmation. It ensures rapid response to temperature changes, movement, or intrusion, helping safeguard assets and personnel around the clock.
Installation Tips
- Mount at a height between 3 m and 6 m for maximum coverage and accuracy.
- Ensure an unobstructed line of sight for optimal thermal and optical performance.
- Integrate with an NVR or ONVIF-compatible system for advanced analytics and event recording.
Professional Dual-Spectrum Surveillance
Upgrade to the HIKVISION HEATPRO BULLET 9.7MM DS-2TD2617-10/QA and experience reliable thermal monitoring, smart detection, and robust performance. ✅ Available now at NeonSales.co.za — get professional-grade protection today.
