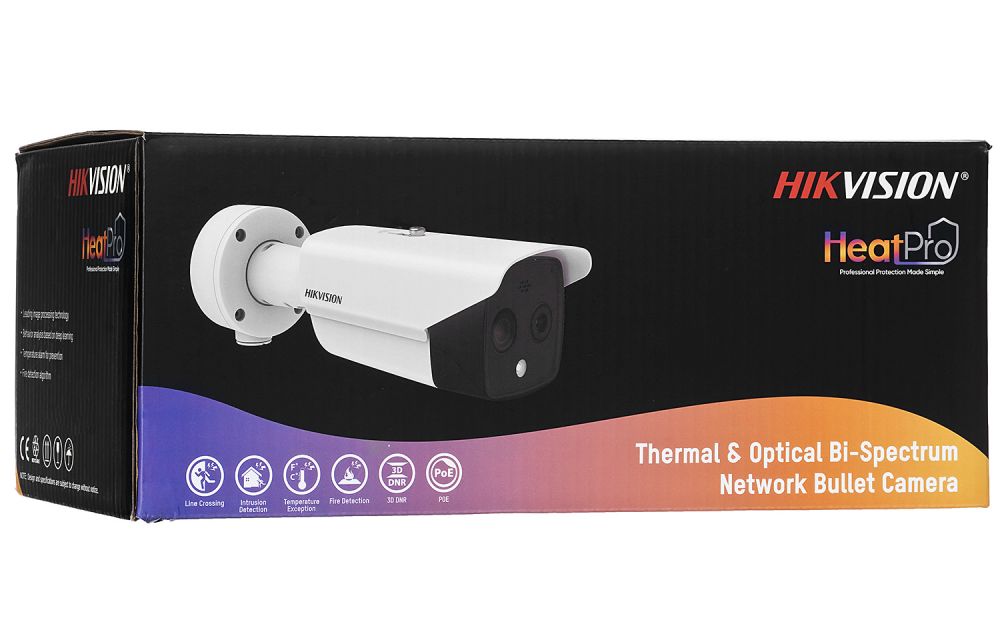

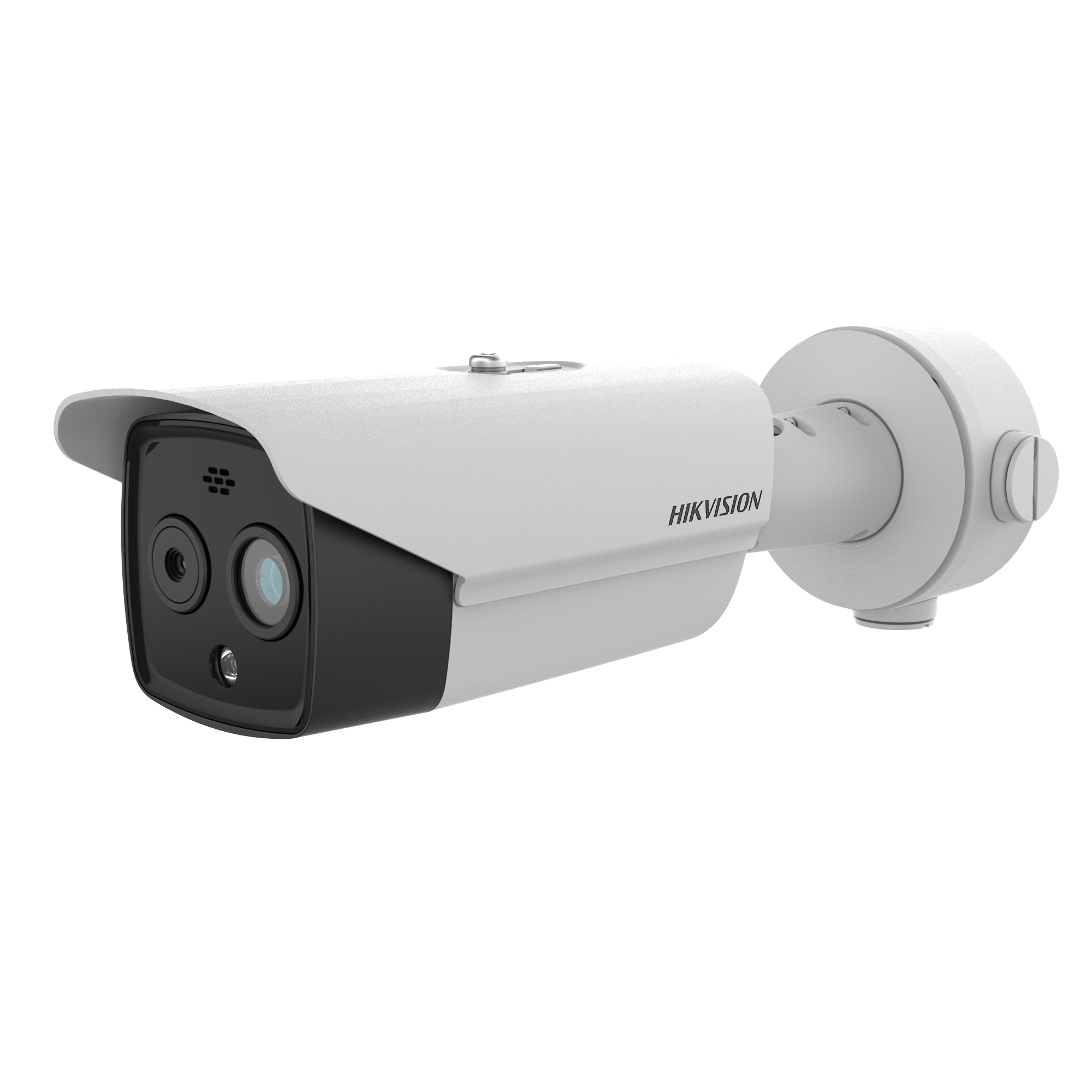

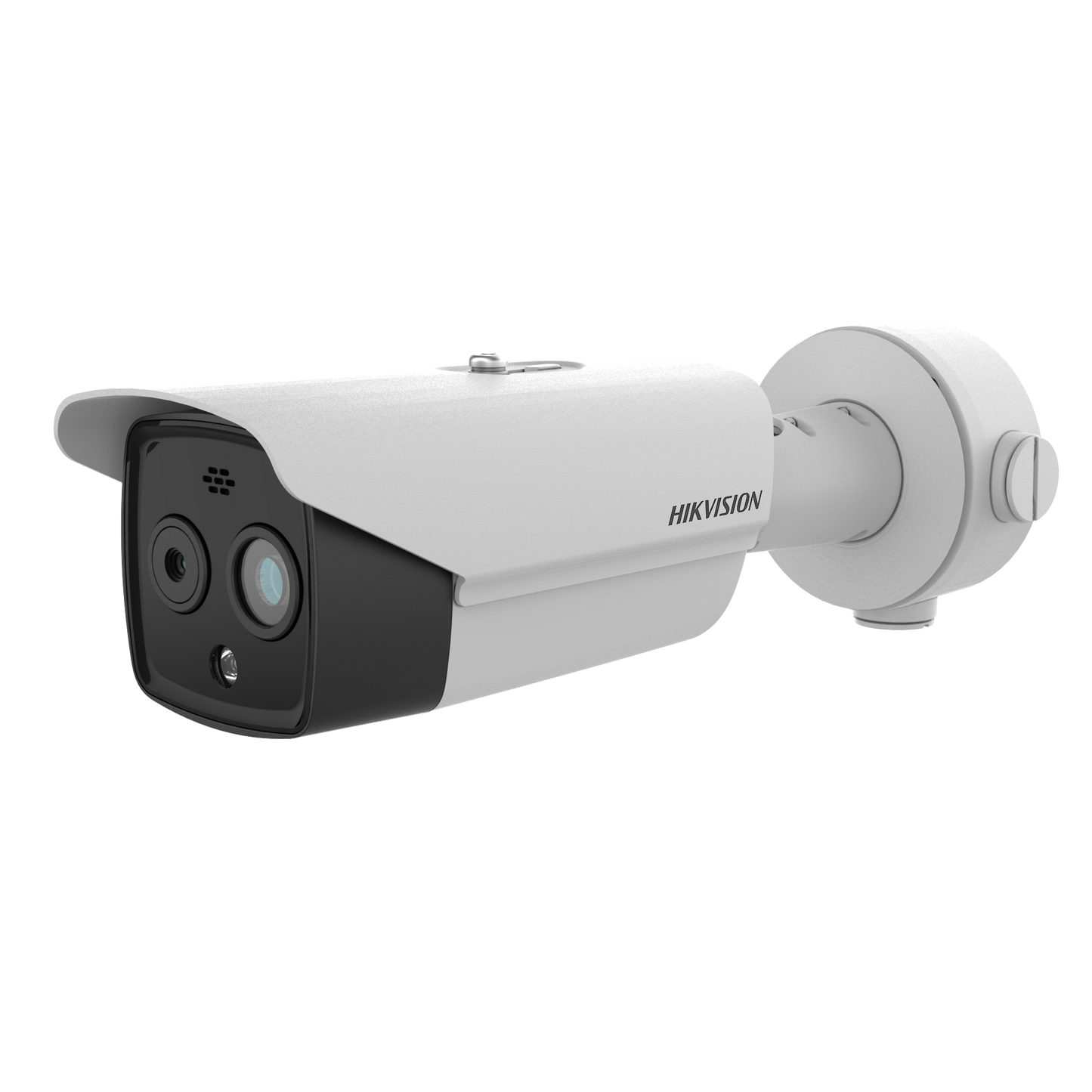

Dual-spectrum surveillance at its finest. The Hikvision DS-2TD2628-7/QA combines thermal imaging and high-definition optical video in a rugged bullet camera form-factor. Ideal for South African perimeter, industrial, warehouse and estate security, this HeatPro series unit offers reliable detection, analytics and durability under demanding conditions.
Why this camera stands out

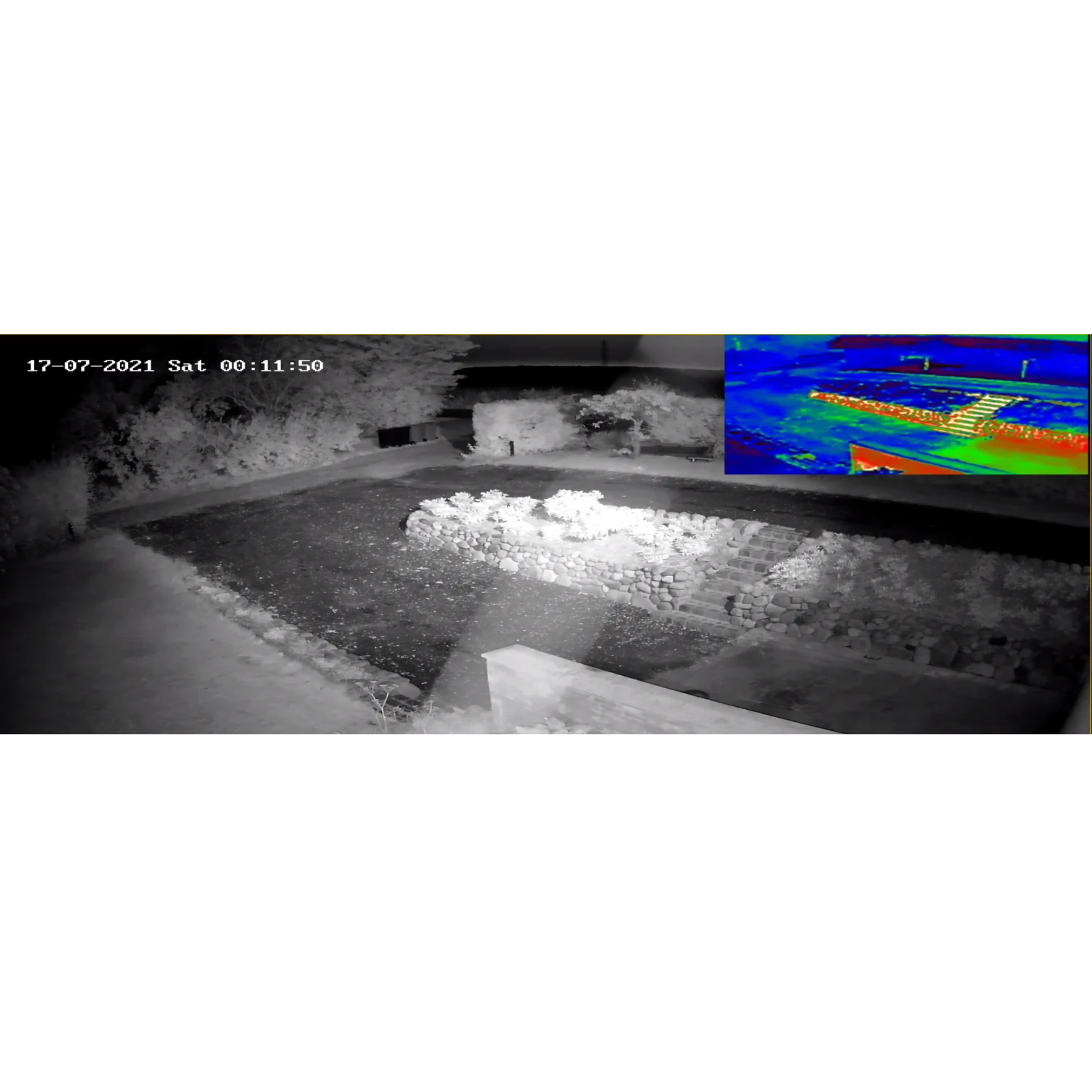

When visibility is compromised by darkness, smoke or dust, standard cameras struggle. The DS-2TD2628-7/QA bridges the gap — a thermal module detects heat signatures while the optical sensor delivers detail for identification. With built-in analytics and temperature-exception alerts, it gives you actionable data and real-time protection, not just passive monitoring.
Key features & benefits
-
Bi-spectrum design: Thermal sensor plus optical camera in one housing — reduces equipment count and simplifies installation.
-
Thermal accuracy: 256 × 192 pixel VOx detector, NETD < 40 mK, thermal lens approx. 6.9 mm focal length for focused thermal field of view.
-
Optical clarity: 4 MP (2688 × 1520) optical module, fixed lens approx. 6.4 mm with wide field-of-view (~53° horizontal).
-
Smart analytics: Supports human/vehicle classification, line crossing, intrusion detection and temperature-exception alarms for fire or hotspot detection.
-
All-weather ruggedness: IP67 ingress protection, designed for outdoor use under South African environmental conditions.
-
Flexible installation: Network (PoE) enabled for ease of deployment and integration with modern IP systems.
Technical specifications
-
Model: DS-2TD2628-7/QA
-
Thermal module: 256 × 192 resolution, 12 µm pixel pitch, spectral range 8-14 µm, NETD < 40 mK.
-
Thermal lens: Approx. 6.9 mm focal length (field of view ~24.9° H × 18.7° V).
-
Optical module: 1/2.7″ Progressive Scan CMOS, 4 MP (2688×1520), min illumination colour 0.0176 Lux (F2.25, AGC ON).
-
Optical lens: Approx. 6.4 mm focal length, field of view ~53° H × 28° V.
-
Temperature measurement range: –20 °C to +150 °C (±8 °C typical) — ideal for fire or heat event detection.
-
Operating voltage: 12 V DC / PoE (802.3af) — check local power supply requirements.
-
Ingress rating: IP67 for weather-resistance.
-
Typical dimensions & weight: Approx. 10.7 cm height, 10.6 cm depth, approx. 1.55 kg.
Typical applications
- Industrial perimeter security for factories, mines or logistics yards
- Warehouse sites where both fire detection and intruder detection are required
- Estate security and gate entries where early-thermal detection enhances visible-light surveillance
- Environments with poor lighting or frequent dust/haze where standard cameras underperform
Installation & setup tips
- Mount the camera with a clear line of sight — avoid obstructions that could block the thermal sensor’s view.
- For best results, configure the temperature-exception alarm zone after installation to match local ambient conditions.
- Use PoE wiring to simplify deployment and reduce power cable costs in remote installations.
- Ensure firmware is up to date and analytics rules are enabled for vehicle/human classification to minimise false alarms.
Elevate your site-security with advanced vision. The Hikvision DS-2TD2628-7/QA offers serious surveillance capability by combining thermal detection and high-res optical video in one unit — tailored for South African conditions and backed by a trusted global brand. Upgrade today and get both heat-signatures and clarity in one smart solution.
Short product blurb (for collection pages): Hikvision DS-2TD2628-7/QA Bi-Spectrum Thermal & Optical Bullet Camera — 256×192 thermal, 4 MP optical, temperature alarms, IP67, ideal for perimeter protection.
